Binder M12 Connectors for Food & Beverage
Binder announces M12 A-coded connectors which have been designed specifically for a variety of applications in the food and beverage sectors according to FDA 21 CFR.
The range includes moulded and angled male and female cable connectors and connecting cables with M12 threads. The moulded heads are made from cream-coloured RAL 9001 polypropylene plastic and the cables have a grey PVC jacket.
The connectors are available in three, four, five, eight and 12-pole versions in accordance with DIN EN 61076-2-101 and DIN EN 61076-2-104 respectively. Maximum current is 4A at 250V.
As well as the food and beverage sector, these new M12 circular connectors are suitable for use in the pharmaceutical and chemical industries and in other types of industrial food processing, including milk and cheese dairies, abattoirs, bottling plants and food storage. These are all areas where stringent hygiene requirements have to be met for machinery, systems and components.
Binder have designed these M12 connectors using premium materials including stainless steel and special plastics with highly smooth contours to prevent dirt adhesion. Because high pressure cleaning with aggressive chemicals is widely used throughout these food and beverage sectors, these M12 connectors provide protection to IP68 and IP69K.
These versions look different from standard M12 connectors while the light-coloured surface means dirt and residue are easy to spot. In addition to the existing tests and the UL certification that is under preparation, the connectors have been subjected to the Ecolab test seal that confirms the material’s resistance to detergents and disinfectants.

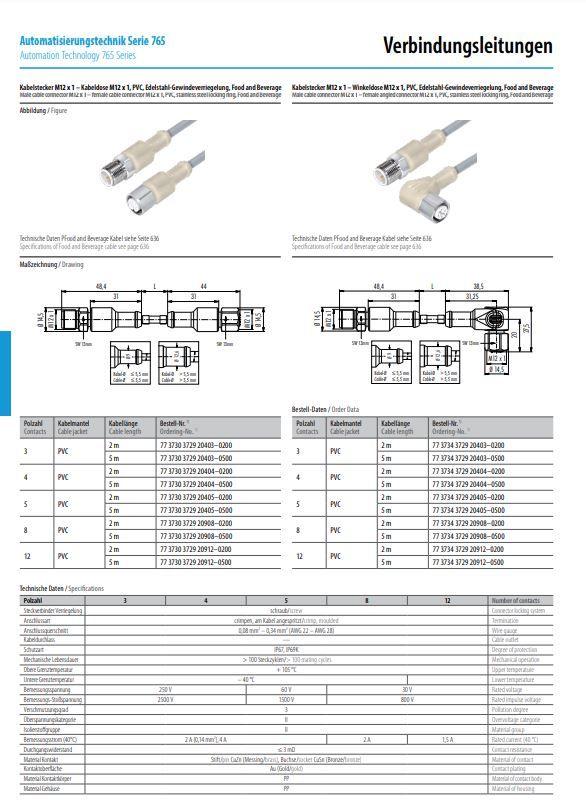

The various configurations can be seen on the following pages taken from the Binder master catalogue;
For more information on the Binder portfolio please visit the Binder Section of our website.
If you need help or guidance selecting a suitable product please pop us a message over by completing our contact form, or call us on 01744 815001.
