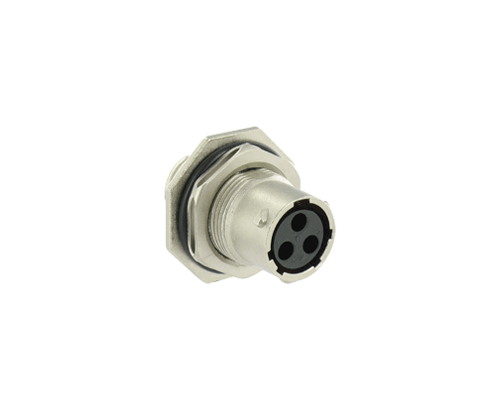

Image may be representative of a range of products, see literature to confirm.
Authorised Partner
of the industry’s leading manufacturers
Credit Accounts
to simplify the ordering process
Scheduled Orders
over a 12-month
period
Technical Expertise
in-house product
specialists
Personalised Support
designated Coordinators for your specific needs
Certification
ISO 9001 quality management system
Sales Description
Got a question about this product?Robust multi-pin circular connector system with bayonet locking mechanism.
UTO connectors offer pin-counts from 3 to 61 with a current carrying capacity of up to 40A per contact.
The series caters for cable OD’s of up to 30mm, has a wire gauge max. of 10.00mm² and is capable of offering IP67, IP68 & IP69K ingress protection in mated state or with the use of a protection cover.
Technical Specification
- Approvals UL, CSA, IEC
- Backshell Included No
- Body Orientation Straight
- Connector Type Panel Connector
- Contact Plating NA
- Contacts Included No
- Coupling Area Material Metal
- Current Rating 16A
- Voltage Rating 150V
- Electrical Notes Electrical ratings per IEC 61984 & 61140
- Degree of Ingress Protection IP67
- EMC Sheilding Capability Yes
- Gender of Insert Female
- Housing Material Metal
- Keyway/Coding Type Standard
- Locking System Bayonet
- Min. Mechanical Mating Cycles 500
- Max. Wire Gauge/Cross Sectional Area 2.50mm²
- Min. Cable Entry (mm) NA
- Max. Cable Entry (mm) NA
- Number of Ways 3
- Operating Temperature -40 to +105°C
- Positive Earth (PE) Yes
- Shell Size 10
- Termination Method/Technology Crimp
