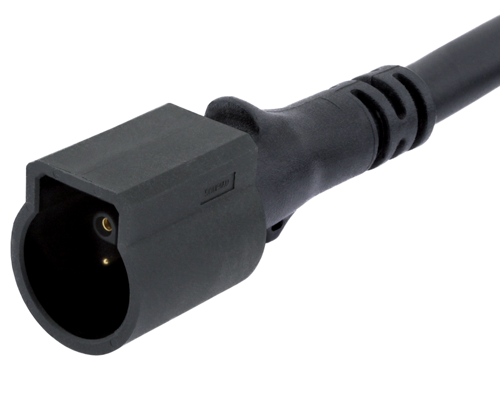

Image may be representative of a range of products, see literature to confirm.
Authorised Partner
of the industry’s leading manufacturers
Credit Accounts
to simplify the ordering process
Scheduled Orders
over a 12-month
period
Technical Expertise
in-house product
specialists
Personalised Support
designated Coordinators for your specific needs
Certification
ISO 9001 quality management system
Sales Description
Got a question about this product?Robust multi-pin circular connector system with latch locking mechanism.
UTL connectors offer pin-counts from 4 to 8 with a current carrying capacity of up to 16A per contact.
The series caters for cable OD’s of up to 17mm, has a wire gauge max. of 2.50mm² and is capable of offering IP68 & IP69K ingress protection in both mated and unmated state or with the use of a protection cover.
Technical Specification
- Approvals UL, IEC
- Cable Assembly Type Single Ended
- Cable Jacket Colour Black
- Cable Jacket Material PUR
- Cable Length 2M
- Cable Operating Temperature -30 to +70°C
- Conductor Gauge 0.22mm², 1.50mm²
- Connector Operating Temperature -40 to +105°C
- Connector Type 1 8 Way Female
- Connector Type 2 NA
- Contact Plating Gold
- Coupling Area Material Metal
- Current Rating 16A
- Voltage Rating 500V
- Electrical Notes Electrical ratings per IEC 61984
- Degree of Ingress Protection IP68, IP69K
- EMC Sheild No
- Gender of Insert Female
- Housing Material Plastic
- Keyway/Coding Type Standard
- Locking System Latch
- Min. Mechanical Mating Cycles 1000
- Number of Conductors 6
- Shell Type Cable Connector
