Souriau SMS Series

Souriau SMS Series

In brief:

Lightweight multi-pin rectangular connector system with latch locking mechanism.

SMS (Quick Mating) connectors offer pin-counts from 2 to 36 with a current carrying capacity of up to 13A per contact.

The series caters for cable OD’s of up to 24.5mm, has a wire gauge max. of 2.50mm² and is capable of offering IP40 ingress protection in mated state.

Eaton logo

Offering high-quality connector innovations for the renewable energy, automation and aerospace sectors.

DownloadDownload Brochure

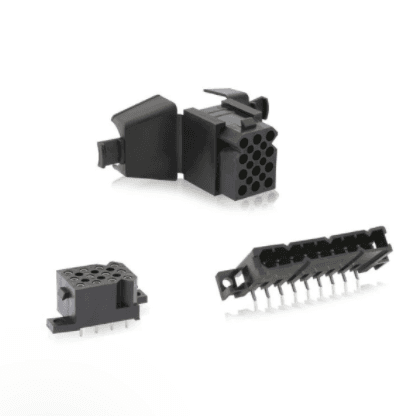

The Souriau SMS Quick Mating (known also as Qikmate) series offers a cost effective multiway setup with an easy fit retention latch that allows simple and swift mating and unmating.

The following three sub series in the SMS range open the connectors up to multiple applications and has allowed the product to be designed into a variety of technology including lighting and rail infrastructure;

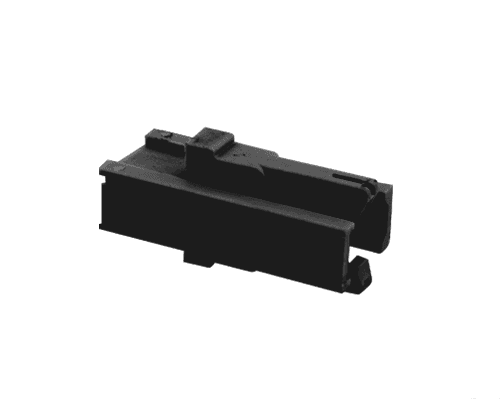

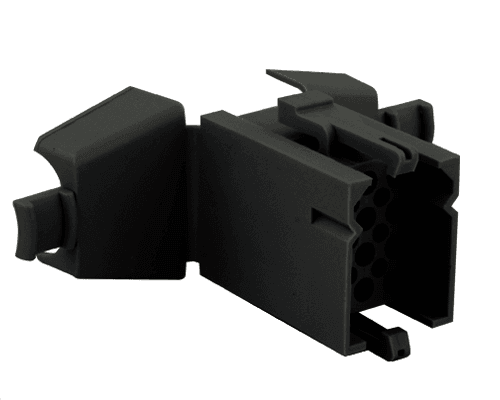

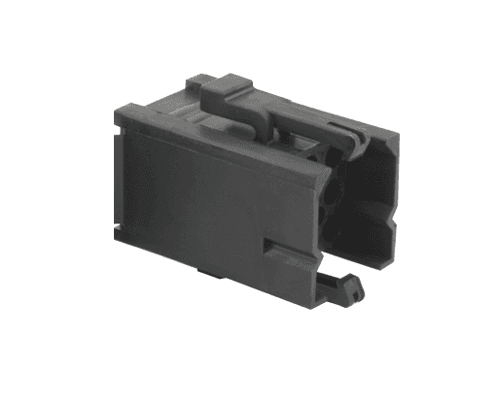

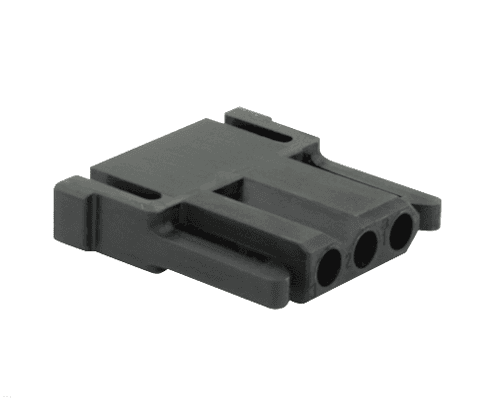

  • Panel and Cable Connectors – 2 to 36 way

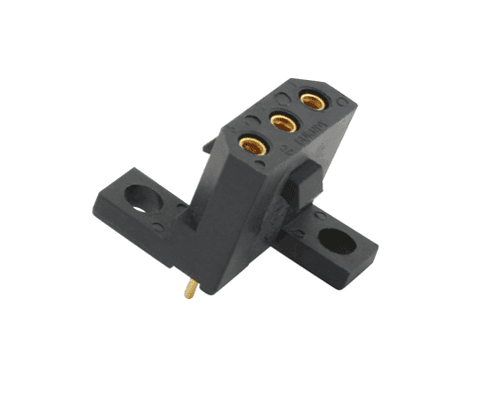

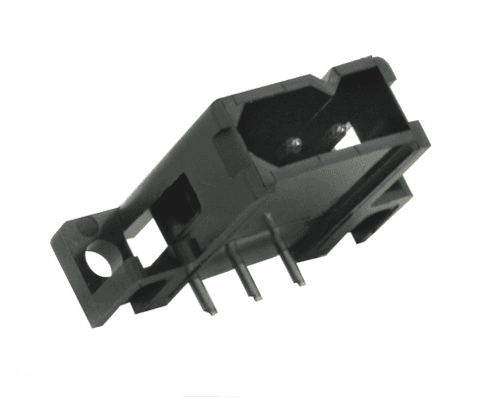

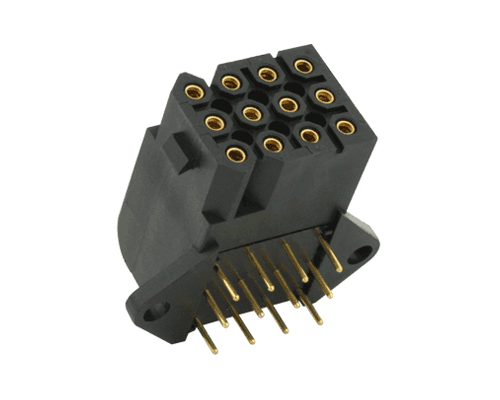

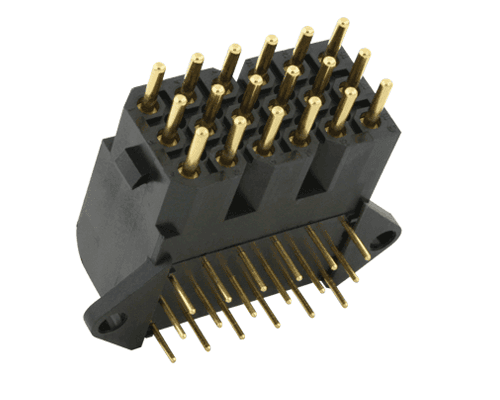

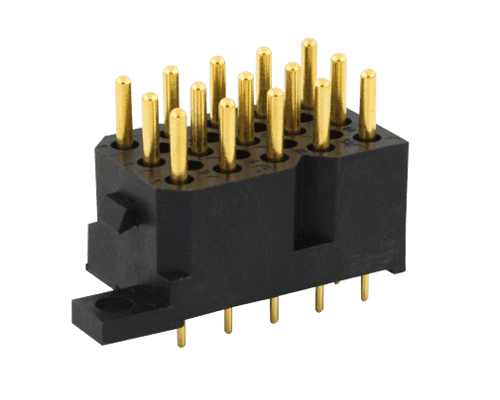

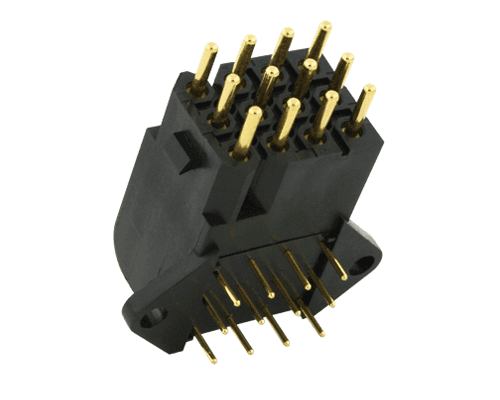

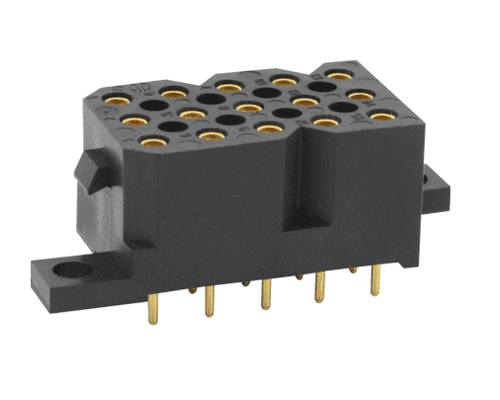

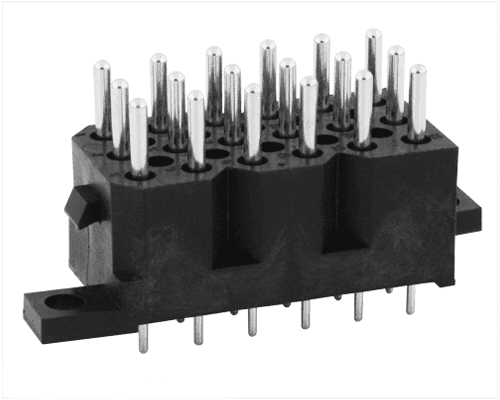

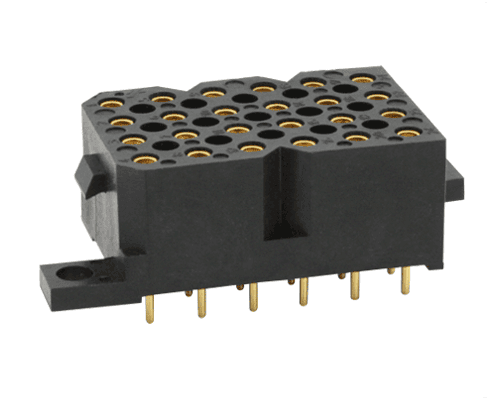

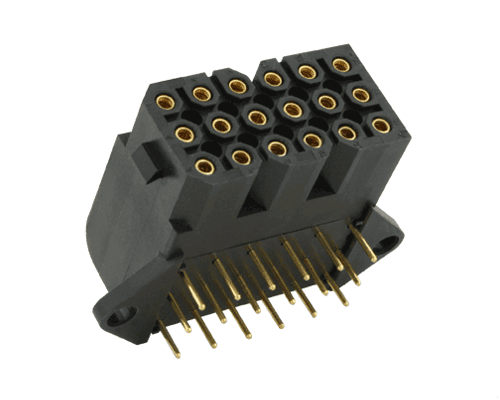

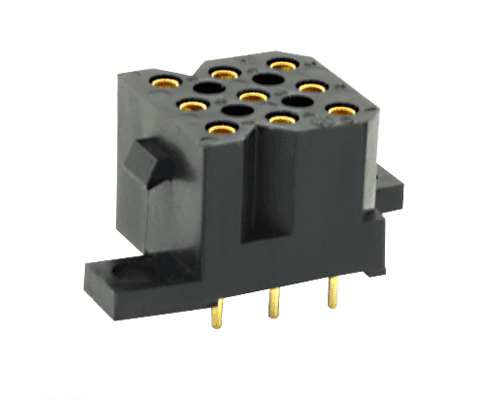

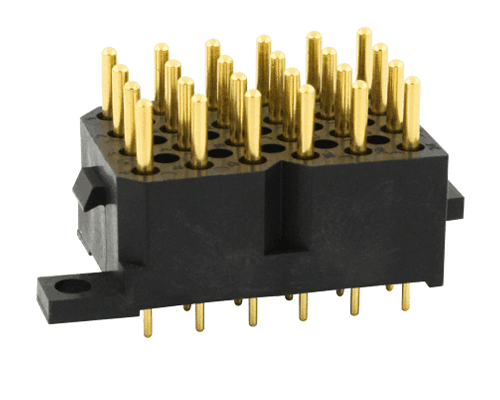

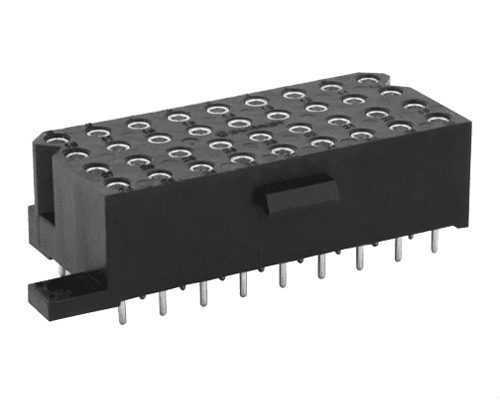

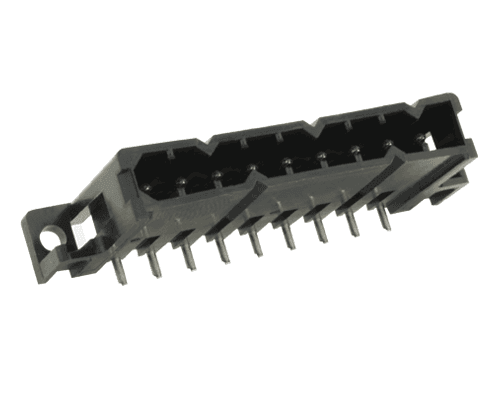

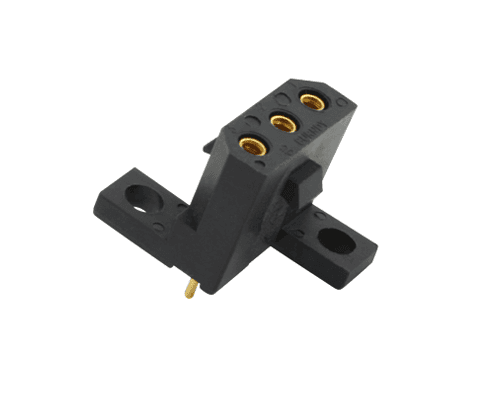

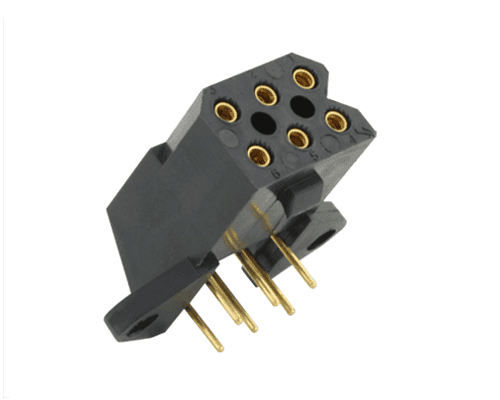

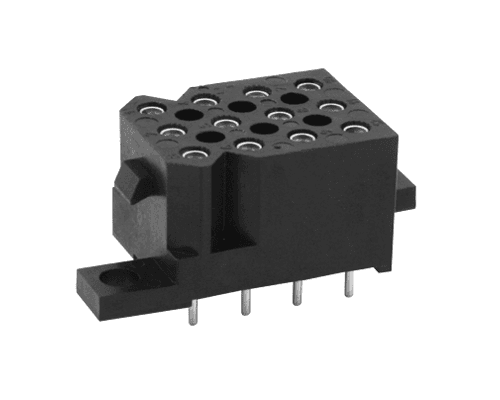

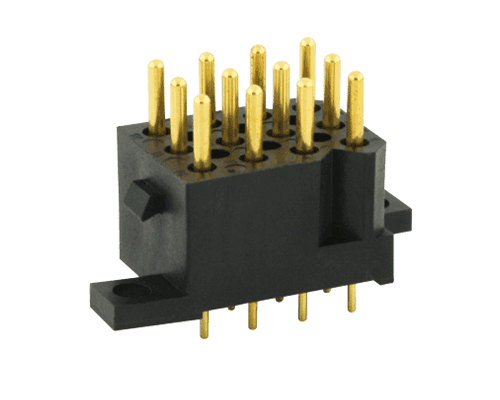

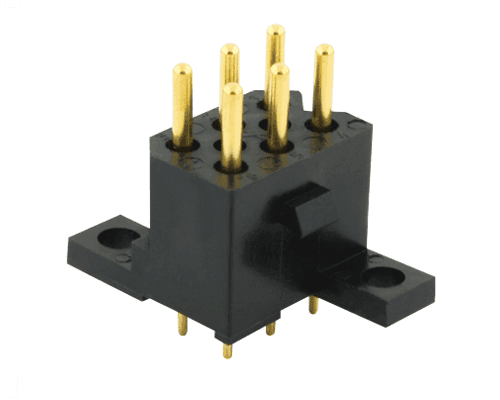

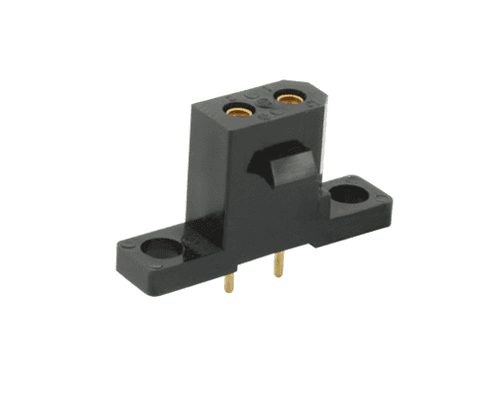

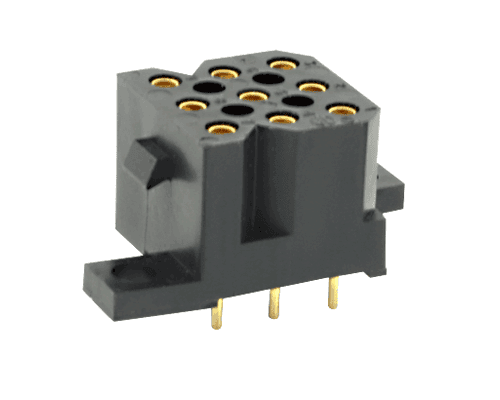

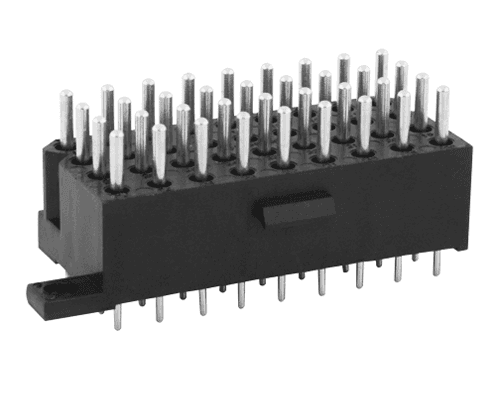

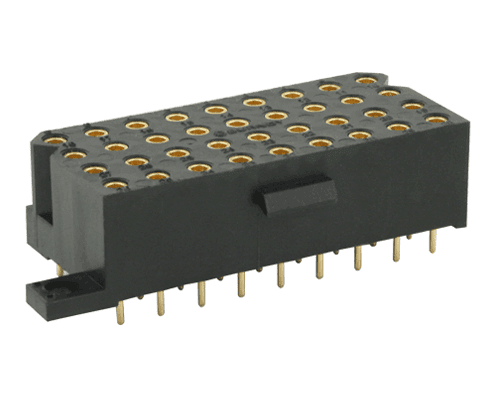

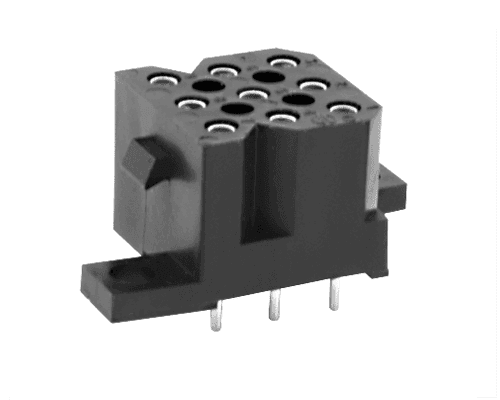

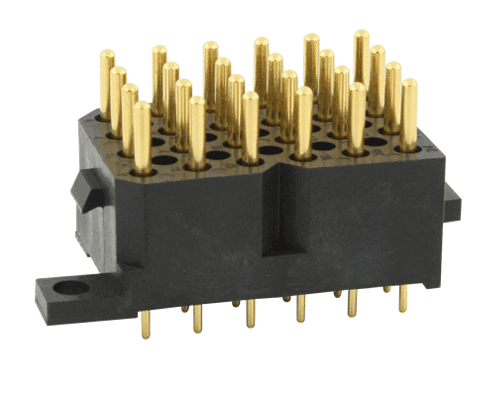

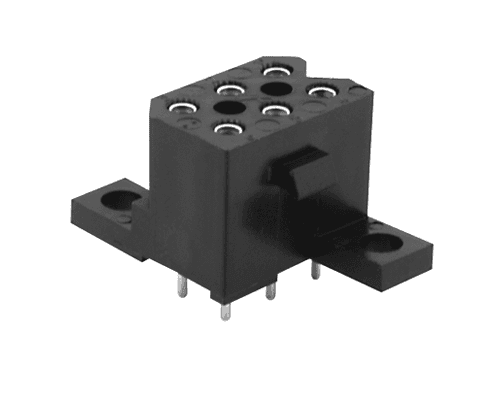

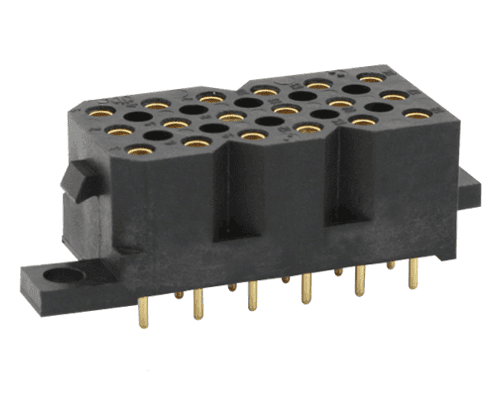

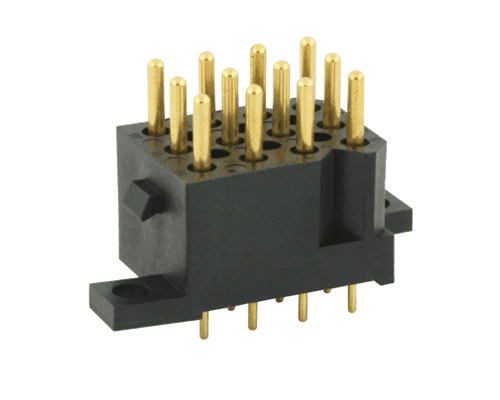

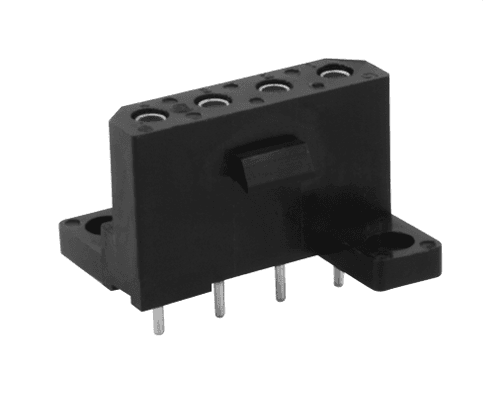

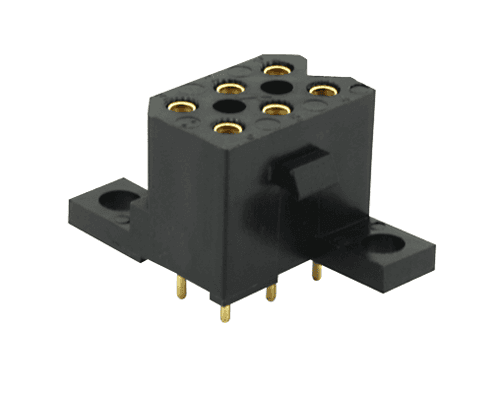

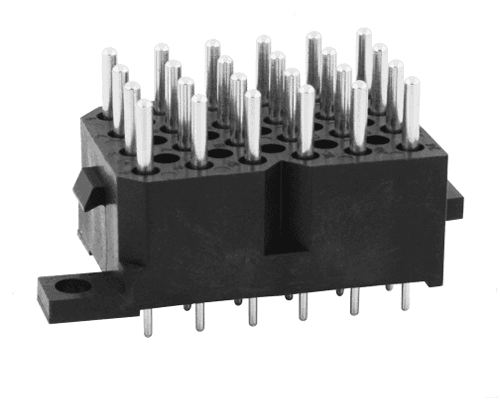

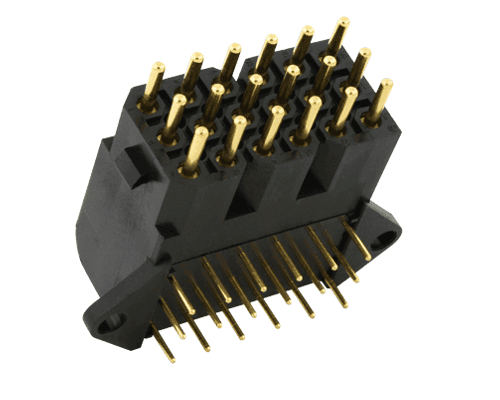

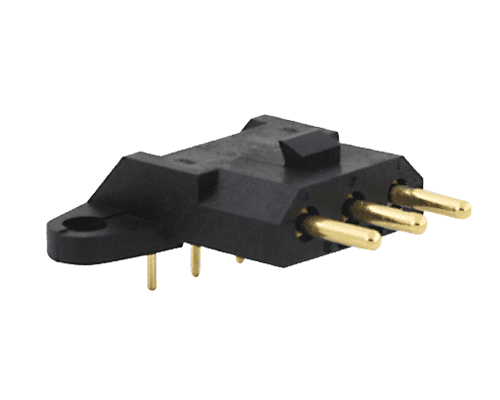

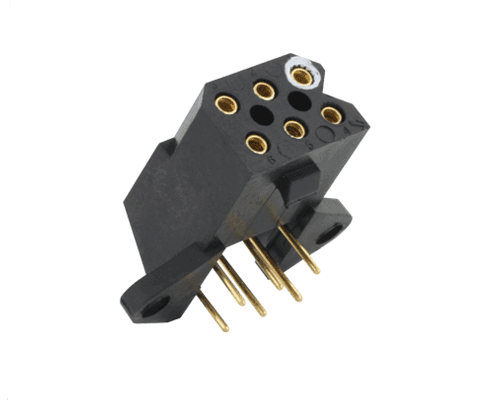

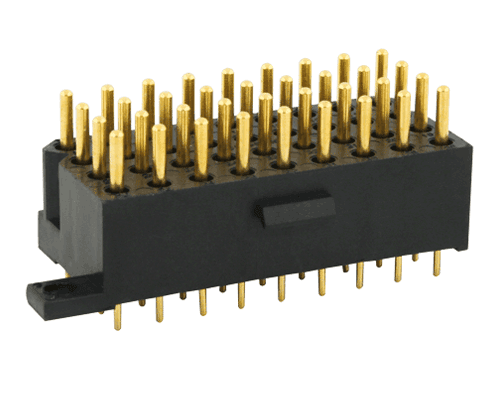

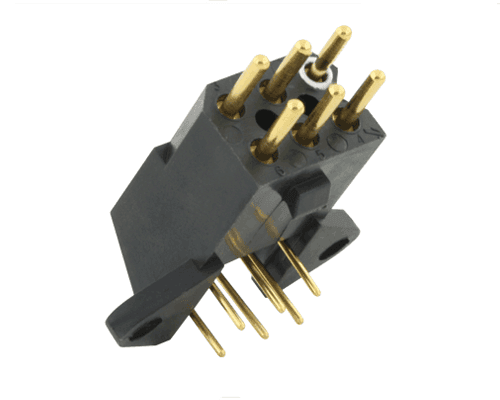

  • PC Boardmount Connectors – 2 to 36 way

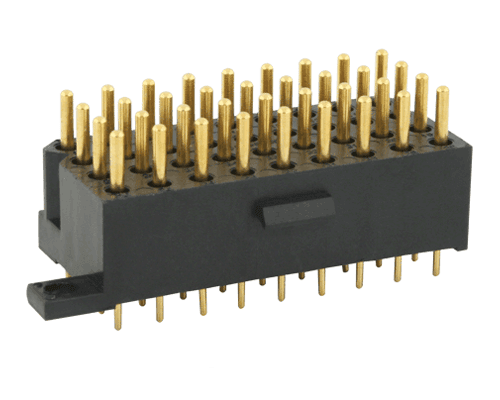

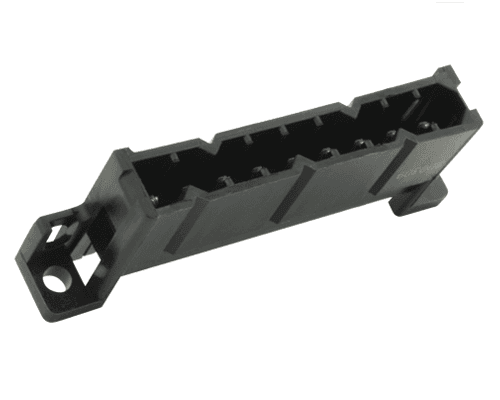

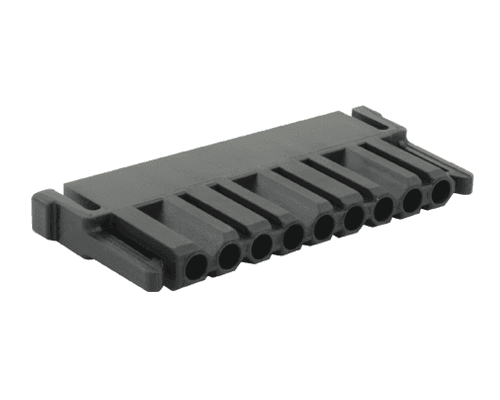

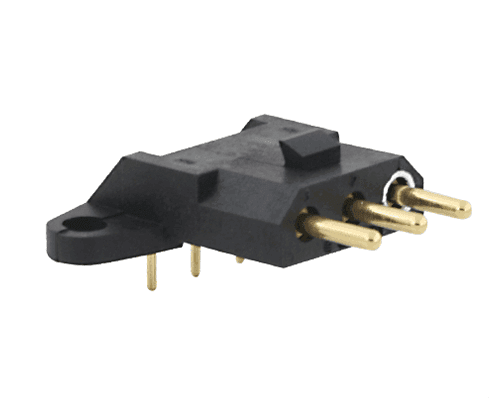

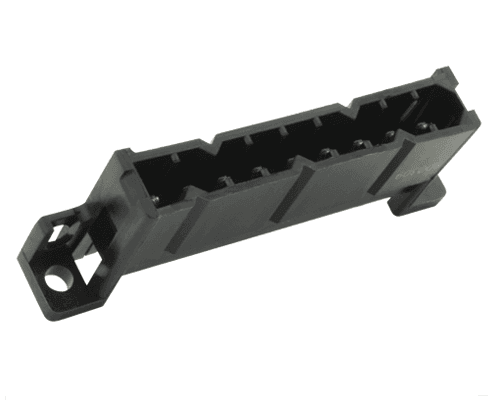

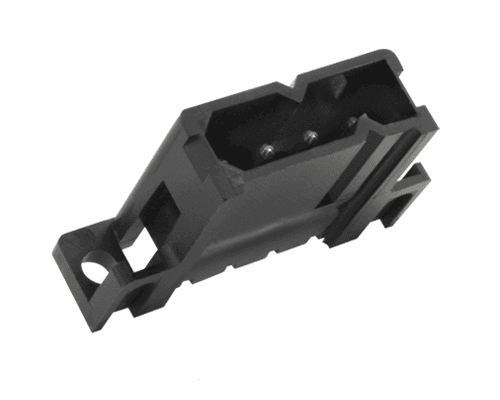

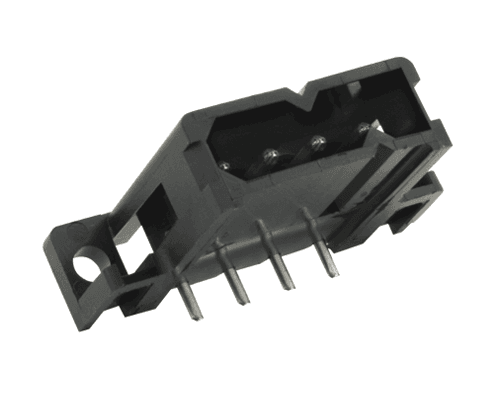

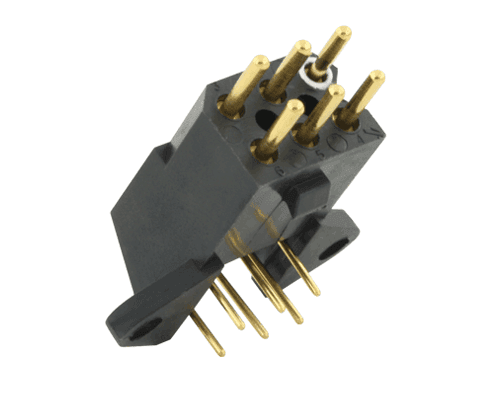

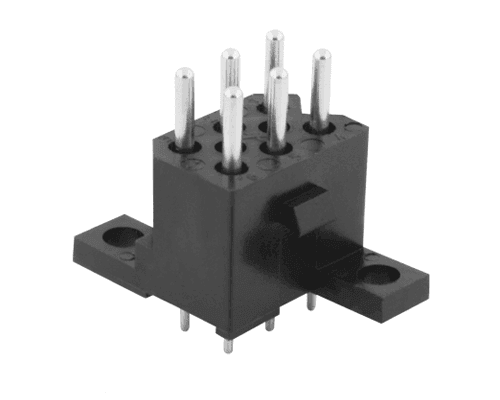

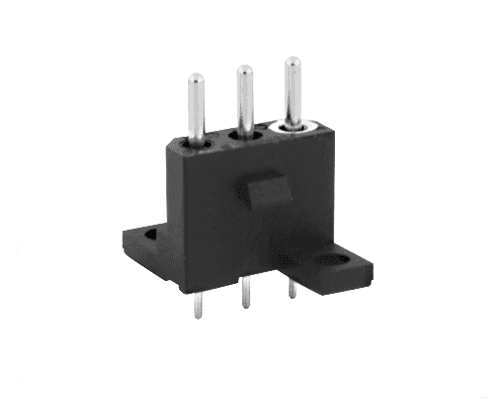

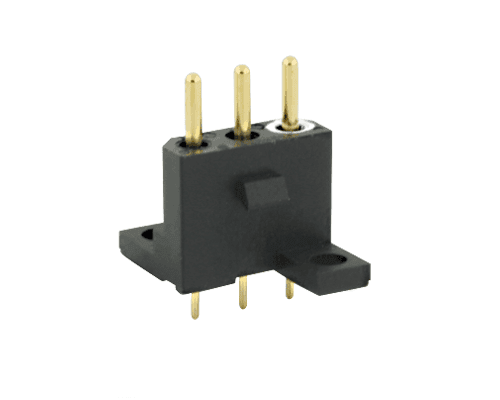

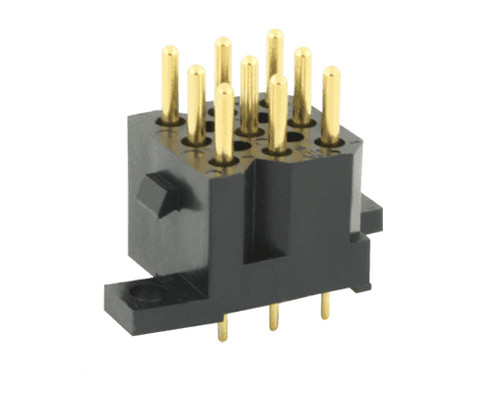

  • PC Boardmount Pin Headers & Plugs – 3 to 10 way

Standard black SMS connectors are made of Polyamide 6.6. with a Flammability rating conforming to UL94 V2.

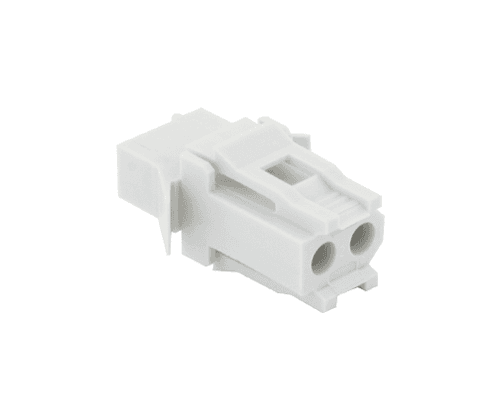

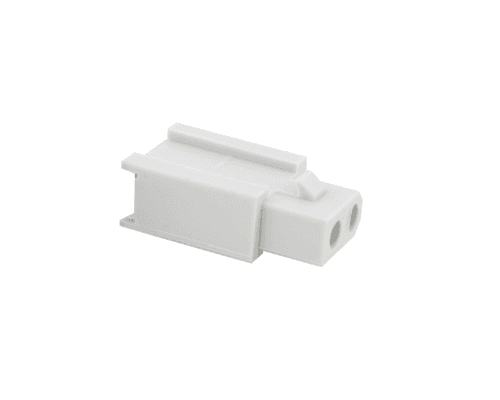

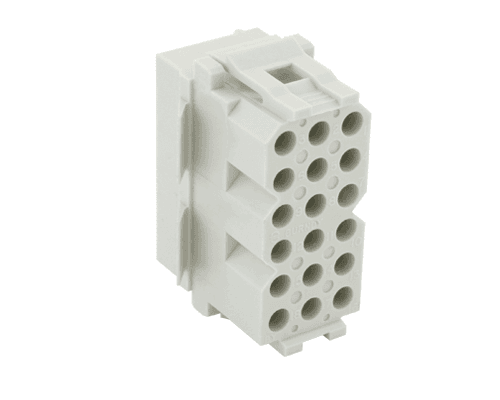

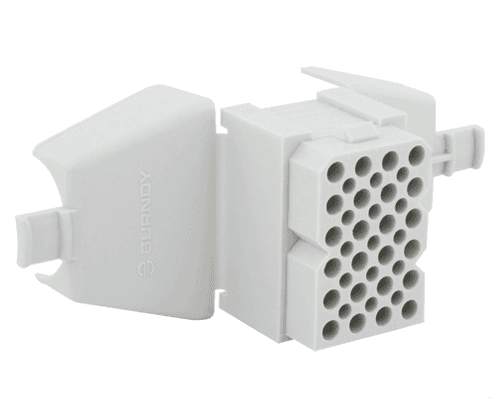

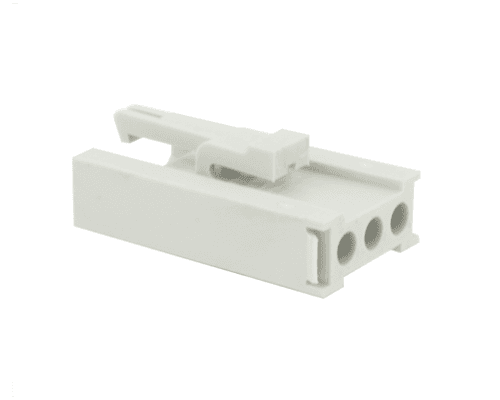

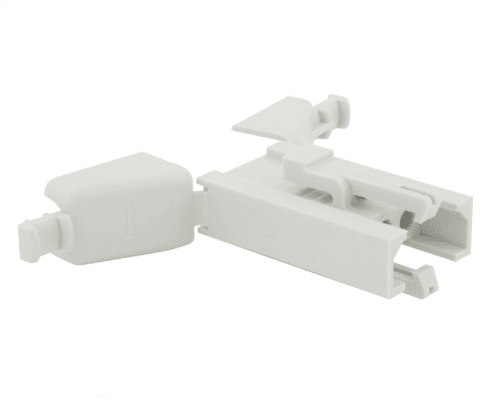

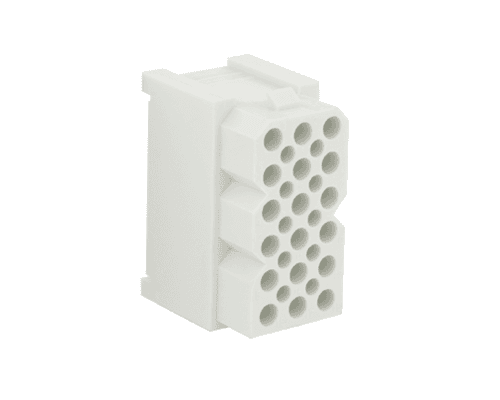

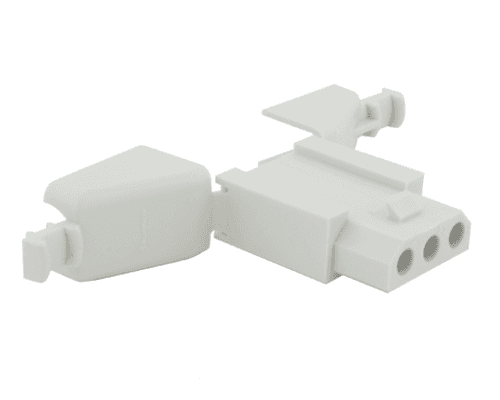

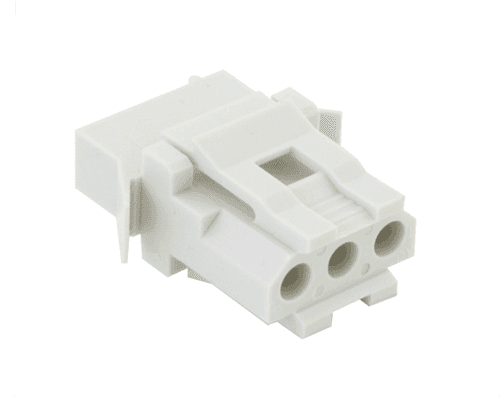

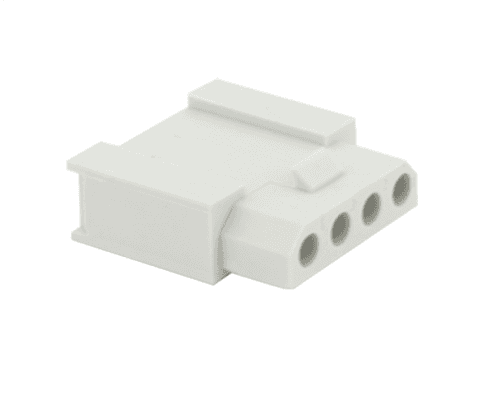

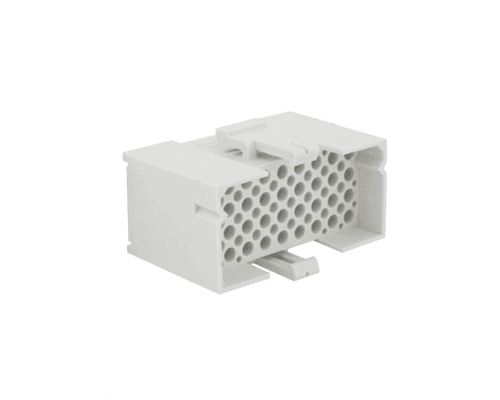

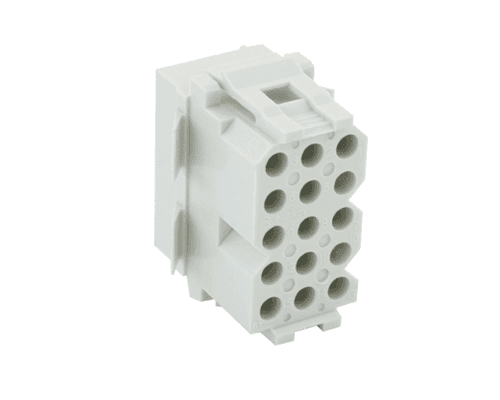

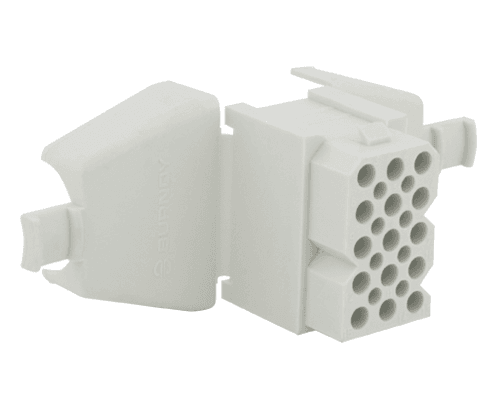

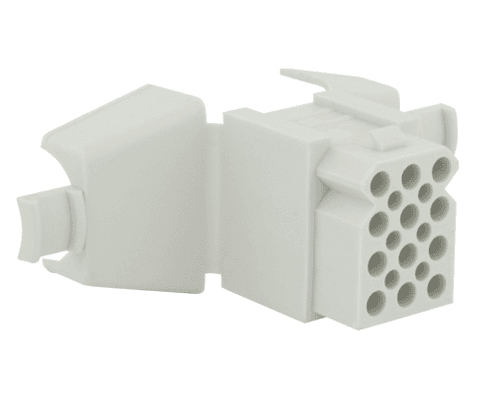

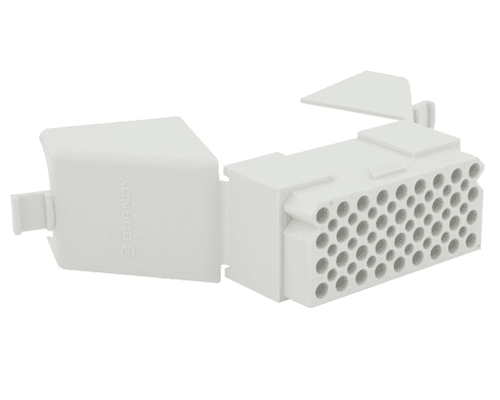

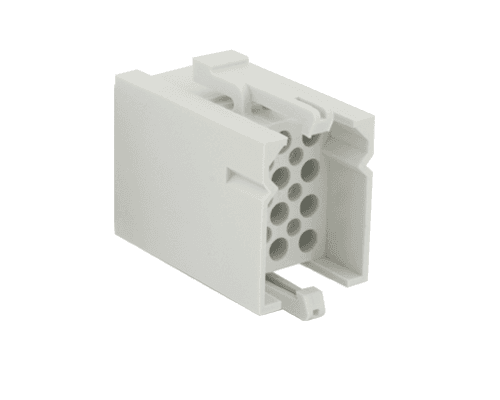

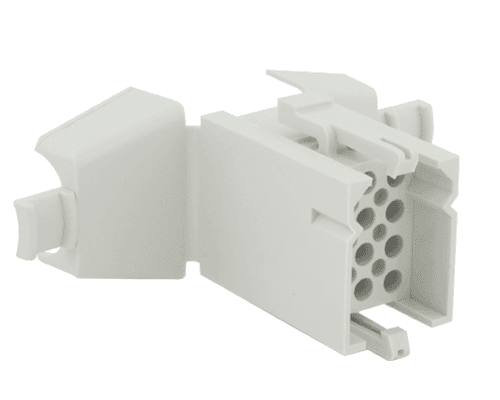

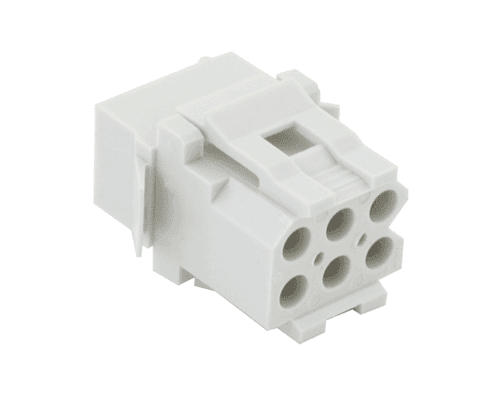

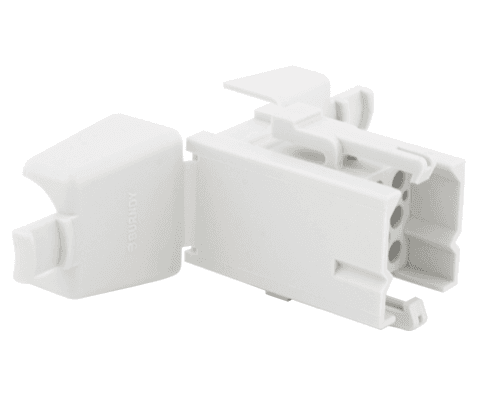

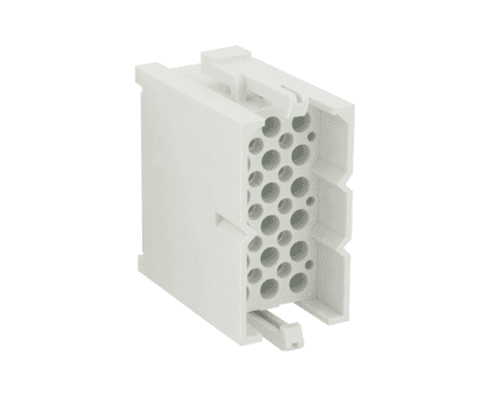

Special White versions conform to the flammability rating UL94 V0 and HL3/R22 - HL3/R23 following EN 45 545-2 which is necessary for many rail applications.

Trim Trio® Connectors - Versatile Industrial Interconnect Solutions

The Souriau SMS Series forms part of the Souriau Trim Trio® industrial connector portfolio.

Trim Trio® refers to the trio of contact options (machined, stamped & formed, highspeed) which can be used with these rugged bayonet or latch locking circular and rectangular connector types.

This unique feature simplifies the supply chain, reduces the complexity of production and gives you the ability to switch from one connector series to another very easily. This allows you to address new customer needs with little fuss or impact on your equipment and production lines. Your product upgrade is easier, faster and without additional costs.

Developed to be compliant with major electrical IEC and UL standards, the Trim Trio® portfolio guarantees safety conditions for the installers, making it the ideal solution for all your industrial and harsh environment needs.

Other Souriau Trim Trio® series include the UTP, UTG, UTS, UTO, UTSX, UTGX and UTL Series.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001

We have many products in this series, find what you need using the filters below

316 products match your criteria:

SMS2R1 thumbnail

Part no. : SMS2R1

2 Way Flanged Panel Connector for Pin or Socket Contacts, IP40

SMS2R3 thumbnail

Part no. : SMS2R3

2 Way Flanged Panel Connector for Pin or Socket Contacts, White Flame Retardant Version, IP40

SMS3R1 thumbnail

Part no. : SMS3R1

3 Way Flanged Panel Connector for Pin or Socket Contacts, IP40

SMS3R3 thumbnail

Part no. : SMS3R3

3 Way Flanged Panel Connector for Pin or Socket Contacts, White Flame Retardant Version, IP40

SMS4R1 thumbnail

Part no. : SMS4R1

4 Way Flanged Panel Connector for Pin or Socket Contacts, IP40

SMS4R3 thumbnail

Part no. : SMS4R3

4 Way Flanged Panel Connector for Pin or Socket Contacts, White Flame Retardant Version, IP40

SMS6R1 thumbnail

Part no. : SMS6R1

6 Way Flanged Panel Connector for Pin or Socket Contacts, IP40

SMS6R3 thumbnail

Part no. : SMS6R3

6 Way Flanged Panel Connector for Pin or Socket Contacts, White Flame Retardant Version, IP40

SMS9R1 thumbnail

Part no. : SMS9R1

9 Way Flanged Panel Connector for Pin or Socket Contacts, IP40

SMS9R3 thumbnail

Part no. : SMS9R3

9 Way Flanged Panel Connector for Pin or Socket Contacts, White Flame Retardant Version, IP40

SMS12R1 thumbnail

Part no. : SMS12R1

12 Way Flanged Panel Connector for Pin or Socket Contacts, IP40

SMS12R3 thumbnail

Part no. : SMS12R3

12 Way Flanged Panel Connector for Pin or Socket Contacts, White Flame Retardant Version, IP40

SMS15R1 thumbnail

Part no. : SMS15R1

15 Way Flanged Panel Connector for Pin or Socket Contacts, IP40

SMS15R3 thumbnail

Part no. : SMS15R3

15 Way Flanged Panel Connector for Pin or Socket Contacts, White Flame Retardant Version, IP40

SMS18R1 thumbnail

Part no. : SMS18R1

18 Way Flanged Panel Connector for Pin or Socket Contacts, IP40

SMS18R3 thumbnail

Part no. : SMS18R3

18 Way Flanged Panel Connector for Pin or Socket Contacts, White Flame Retardant Version, IP40

SMS24R1 thumbnail

Part no. : SMS24R1

24 Way Flanged Panel Connector for Pin or Socket Contacts, IP40

SMS24R3 thumbnail

Part no. : SMS24R3

24 Way Flanged Panel Connector for Pin or Socket Contacts, White Flame Retardant Version, IP40

SMS36R1 thumbnail

Part no. : SMS36R1

36 Way Flanged Panel Connector for Pin or Socket Contacts, IP40

SMS36R3 thumbnail

Part no. : SMS36R3

36 Way Flanged Panel Connector for Pin or Socket Contacts, White Flame Retardant Version, IP40

SMS2P1 thumbnail

Part no. : SMS2P1

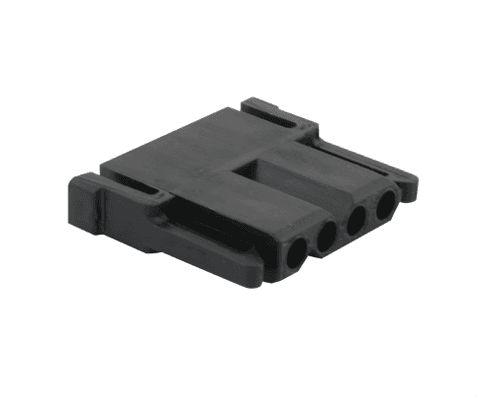

2 Way Cable Connector for Pin or Socket Contacts, without Strain Relief, IP40

SMS3P1 thumbnail

Part no. : SMS3P1

3 Way Cable Connector for Pin or Socket Contacts, without Strain Relief, IP40

SMS4P1 thumbnail

Part no. : SMS4P1

4 Way Cable Connector for Pin or Socket Contacts, without Strain Relief, IP40

SMS6P1 thumbnail

Part no. : SMS6P1

6 Way Cable Connector for Pin or Socket Contacts, without Strain Relief, IP40

SMS9P1 thumbnail

Part no. : SMS9P1

9 Way Cable Connector for Pin or Socket Contacts, without Strain Relief, IP40

SMS12P1 thumbnail

Part no. : SMS12P1

12 Way Cable Connector for Pin or Socket Contacts, without Strain Relief, IP40

SMS15P1 thumbnail

Part no. : SMS15P1

15 Way Cable Connector for Pin or Socket Contacts, without Strain Relief, IP40

SMS18P1 thumbnail

Part no. : SMS18P1

18 Way Cable Connector for Pin or Socket Contacts, without Strain Relief, IP40

SMS36P1 thumbnail

Part no. : SMS36P1

36 Way Cable Connector for Pin or Socket Contacts, without Strain Relief, IP40

SMS2RD3 thumbnail

Part no. : SMS2RD3

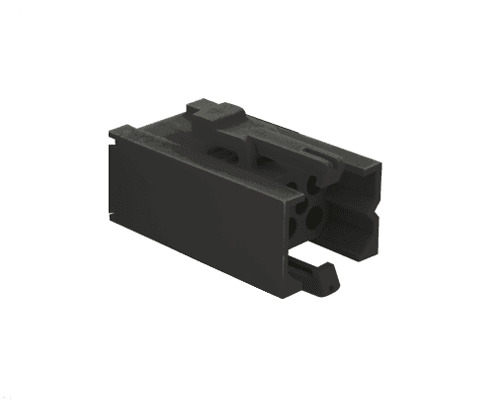

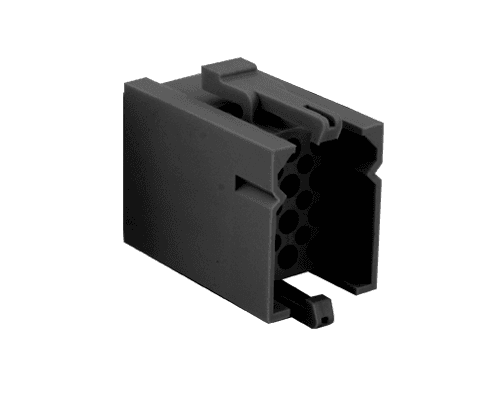

2 Way In-Line Cable Connector for Pin or Socket Contacts, without Strain Relief, White Flame Retardant Version, IP40

SMS3RD3 thumbnail

Part no. : SMS3RD3

3 Way In-Line Cable Connector for Pin or Socket Contacts, without Strain Relief, White Flame Retardant Version, IP40

SMS4RD3 thumbnail

Part no. : SMS4RD3

4 Way In-Line Cable Connector for Pin or Socket Contacts, without Strain Relief, White Flame Retardant Version, IP40

SMS6RD3 thumbnail

Part no. : SMS6RD3

6 Way In-Line Cable Connector for Pin or Socket Contacts, without Strain Relief, White Flame Retardant Version, IP40

SMS9RD3 thumbnail

Part no. : SMS9RD3

9 Way In-Line Cable Connector for Pin or Socket Contacts, without Strain Relief, White Flame Retardant Version, IP40

SMS12RD3 thumbnail

Part no. : SMS12RD3

12 Way In-Line Cable Connector for Pin or Socket Contacts, without Strain Relief, White Flame Retardant Version, IP40

SMS15RD3 thumbnail

Part no. : SMS15RD3

15 Way In-Line Cable Connector for Pin or Socket Contacts, without Strain Relief, White Flame Retardant Version, IP40

SMS18RD3 thumbnail

Part no. : SMS18RD3

18 Way In-Line Cable Connector for Pin or Socket Contacts, without Strain Relief, White Flame Retardant Version, IP40

SMS24RD3 thumbnail

Part no. : SMS24RD3

24 Way In-Line Cable Connector for Pin or Socket Contacts, without Strain Relief, White Flame Retardant Version, IP40

SMS36RD3 thumbnail

Part no. : SMS36RD3

36 Way In-Line Cable Connector for Pin or Socket Contacts, without Strain Relief, White Flame Retardant Version, IP40

SMS2PD3 thumbnail

Part no. : SMS2PD3

2 Way Cable Connector for Pin or Socket Contacts, without Strain Relief, White Flame Retardant Version, IP40

SMS3PD3 thumbnail

Part no. : SMS3PD3

3 Way Cable Connector for Pin or Socket Contacts, without Strain Relief, White Flame Retardant Version, IP40

SMS4PD3 thumbnail

Part no. : SMS4PD3

4 Way Cable Connector for Pin or Socket Contacts, without Strain Relief, White Flame Retardant Version, IP40

SMS6PD3 thumbnail

Part no. : SMS6PD3

6 Way Cable Connector for Pin or Socket Contacts, without Strain Relief & with discrimination cavities, White Flame Retardant Version, IP40

SMS9PD3 thumbnail

Part no. : SMS9PD3

9 Way Cable Connector for Pin or Socket Contacts, without Strain Relief & with discrimination cavities, White Flame Retardant Version, IP40

SMS12PD3 thumbnail

Part no. : SMS12PD3

12 Way Cable Connector for Pin or Socket Contacts, without Strain Relief & with discrimination cavities, White Flame Retardant Version, IP40

SMS15PD3 thumbnail

Part no. : SMS15PD3

15 Way Cable Connector for Pin or Socket Contacts, without Strain Relief & with discrimination cavities, White Flame Retardant Version, IP40

SMS18PD3 thumbnail

Part no. : SMS18PD3

18 Way Cable Connector for Pin or Socket Contacts, without Strain Relief & with discrimination cavities, White Flame Retardant Version, IP40

SMS24PD3 thumbnail

Part no. : SMS24PD3

24 Way Cable Connector for Pin or Socket Contacts, without Strain Relief & with discrimination cavities, White Flame Retardant Version, IP40

SMS36PD3 thumbnail

Part no. : SMS36PD3

36 Way Cable Connector for Pin or Socket Contacts, without Strain Relief & with discrimination cavities, White Flame Retardant Version, IP40

SMS2RDH1 thumbnail

Part no. : SMS2RDH1

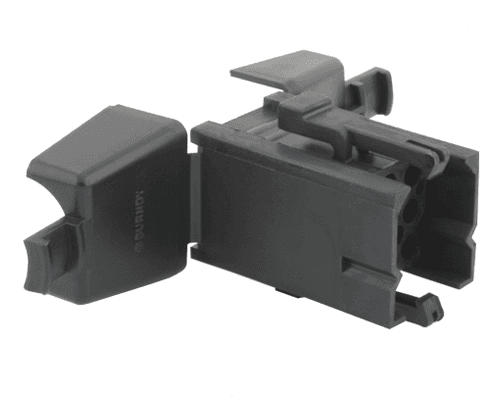

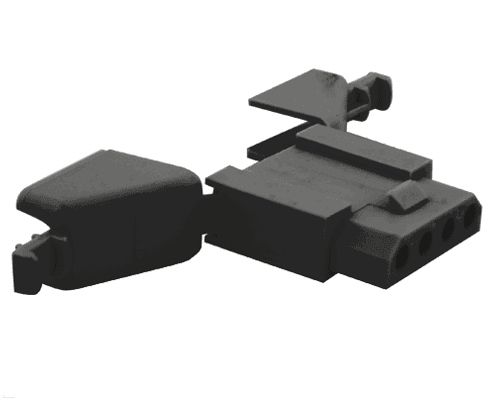

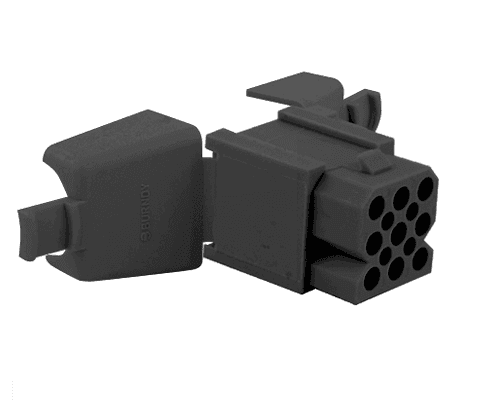

2 Way In-Line Cable Connector for Pin or Socket Contacts, with Integrated Strain Relief, 0.5-8.4mm Cable Entry, IP40

SMS2RDH3 thumbnail

Part no. : SMS2RDH3

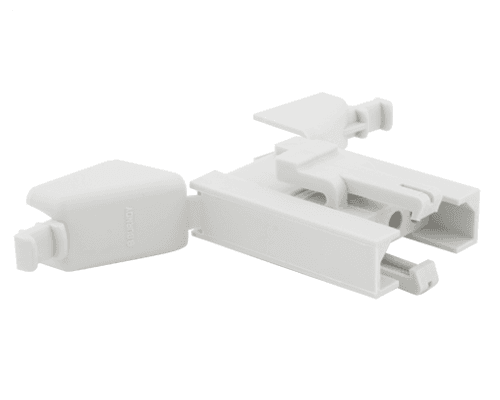

2 Way In-Line Cable Connector for Pin or Socket Contacts, with Integrated Strain Relief, 0.5-8.4mm Cable Entry, White Flame Retardant Version, IP40

SMS3RDH1 thumbnail

Part no. : SMS3RDH1

3 Way In-Line Cable Connector for Pin or Socket Contacts, with Integrated Strain Relief, 0.8-7.3mm Cable Entry, IP40

SMS3RDH3 thumbnail

Part no. : SMS3RDH3

3 Way In-Line Cable Connector for Pin or Socket Contacts, with Integrated Strain Relief, 0.8-7.3mm Cable Entry, White Flame Retardant Version, IP40

SMS4RDH1 thumbnail

Part no. : SMS4RDH1

4 Way In-Line Cable Connector for Pin or Socket Contacts, with Integrated Strain Relief, 1.5-10mm Cable Entry, IP40

SMS4RDH3 thumbnail

Part no. : SMS4RDH3

4 Way In-Line Cable Connector for Pin or Socket Contacts, with Integrated Strain Relief, 1.5-10mm Cable Entry, White Flame Retardant Version, IP40

SMS6RDH1 thumbnail

Part no. : SMS6RDH1

6 Way In-Line Cable Connector for Pin or Socket Contacts, with Integrated Strain Relief, 1.7-9.2mm Cable Entry, IP40

SMS6RDH3 thumbnail

Part no. : SMS6RDH3

6 Way In-Line Cable Connector for Pin or Socket Contacts, with Integrated Strain Relief, 1.7-9.2mm Cable Entry, White Flame Retardant Version, IP40

SMS9RDH1 thumbnail

Part no. : SMS9RDH1

9 Way In-Line Cable Connector for Pin or Socket Contacts, with Integrated Strain Relief, 3.9-14.3mm Cable Entry, IP40

SMS9RDH3 thumbnail

Part no. : SMS9RDH3

9 Way In-Line Cable Connector for Pin or Socket Contacts, with Integrated Strain Relief, 3.9-14.3mm Cable Entry, White Flame Retardant Version, IP40

SMS12RDH1 thumbnail

Part no. : SMS12RDH1

12 Way In-Line Cable Connector for Pin or Socket Contacts, with Integrated Strain Relief, 4-15mm Cable Entry, IP40

SMS12RDH3 thumbnail

Part no. : SMS12RDH3

12 Way In-Line Cable Connector for Pin or Socket Contacts, with Integrated Strain Relief, 4-15mm Cable Entry, White Flame Retardant Version, IP40

SMS15RDH1 thumbnail

Part no. : SMS15RDH1

15 Way In-Line Cable Connector for Pin or Socket Contacts, with Integrated Strain Relief, 5-16.2mm Cable Entry, IP40

SMS15RDH3 thumbnail

Part no. : SMS15RDH3

15 Way In-Line Cable Connector for Pin or Socket Contacts, with Integrated Strain Relief, 5-16.2mm Cable Entry, White Flame Retardant Version, IP40

SMS18RDH1 thumbnail

Part no. : SMS18RDH1

18 Way In-Line Cable Connector for Pin or Socket Contacts, with Integrated Strain Relief, 5.8-20.3mm Cable Entry, IP40

SMS18RDH3 thumbnail

Part no. : SMS18RDH3

18 Way In-Line Cable Connector for Pin or Socket Contacts, with Integrated Strain Relief, 5.8-20.3mm Cable Entry, White Flame Retardant Version, IP40

SMS24RDH1 thumbnail

Part no. : SMS24RDH1

24 Way In-Line Cable Connector for Pin or Socket Contacts, with Integrated Strain Relief, 7.1-20.4mm Cable Entry, IP40

SMS24RDH3 thumbnail

Part no. : SMS24RDH3

24 Way In-Line Cable Connector for Pin or Socket Contacts, with Integrated Strain Relief, 7.1-20.4mm Cable Entry, White Flame Retardant Version, IP40

SMS36RDH1 thumbnail

Part no. : SMS36RDH1

36 Way In-Line Cable Connector for Pin or Socket Contacts, with Integrated Strain Relief, 8.8-24.5mm Cable Entry, IP40

SMS36RDH3 thumbnail

Part no. : SMS36RDH3

36 Way In-Line Cable Connector for Pin or Socket Contacts, with Integrated Strain Relief, 8.8-24.5mm Cable Entry, White Flame Retardant Version, IP40

SMS2PDH1 thumbnail

Part no. : SMS2PDH1

2 Way Cable Connector for Pin or Socket Contacts, with Integrated Strain Relief, 0.5-8.4mm Cable Entry, IP40

SMS2PDH3 thumbnail

Part no. : SMS2PDH3

2 Way Cable Connector for Pin or Socket Contacts, with Integrated Strain Relief, 0.5-8.4mm Cable Entry, White Flame Retardant Version, IP40

SMS3PDH1 thumbnail

Part no. : SMS3PDH1

3 Way Cable Connector for Pin or Socket Contacts, with Integrated Strain Relief, 0.8-7.3mm Cable Entry, IP40

SMS3PDH3 thumbnail

Part no. : SMS3PDH3

3 Way Cable Connector for Pin or Socket Contacts, with Integrated Strain Relief, 0.8-7.3mm Cable Entry, White Flame Retardant Version, IP40

SMS4PDH1 thumbnail

Part no. : SMS4PDH1

4 Way Cable Connector for Pin or Socket Contacts, with Integrated Strain Relief, 1.5-10mm Cable Entry, IP40

SMS4PDH3 thumbnail

Part no. : SMS4PDH3

4 Way Cable Connector for Pin or Socket Contacts, with Integrated Strain Relief, 1.5-10mm Cable Entry, White Flame Retardant Version, IP40

SMS6PDH1 thumbnail

Part no. : SMS6PDH1

6 Way Cable Connector for Pin or Socket Contacts, with Integrated Strain Relief, 1.7-9.2mm Cable Entry, IP40

SMS6PDH3 thumbnail

Part no. : SMS6PDH3

6 Way Cable Connector for Pin or Socket Contacts, with Integrated Strain Relief, 1.7-9.2mm Cable Entry, White Flame Retardant Version, IP40

SMS9PDH1 thumbnail

Part no. : SMS9PDH1

9 Way Cable Connector for Pin or Socket Contacts, with Integrated Strain Relief, 3.9-14.3mm Cable Entry, IP40

SMS9PDH3 thumbnail

Part no. : SMS9PDH3

9 Way Cable Connector for Pin or Socket Contacts, with Integrated Strain Relief, 3.9-14.3mm Cable Entry, White Flame Retardant Version, IP40

SMS12PDH1 thumbnail

Part no. : SMS12PDH1

12 Way Cable Connector for Pin or Socket Contacts, with Integrated Strain Relief, 4-15mm Cable Entry, IP40

SMS12PDH3 thumbnail

Part no. : SMS12PDH3

12 Way Cable Connector for Pin or Socket Contacts, with Integrated Strain Relief, 4-15mm Cable Entry, White Flame Retardant Version, IP40

SMS15PDH1 thumbnail

Part no. : SMS15PDH1

15 Way Cable Connector for Pin or Socket Contacts, with Integrated Strain Relief, 5-16.2mm Cable Entry, IP40

SMS15PDH3 thumbnail

Part no. : SMS15PDH3

15 Way Cable Connector for Pin or Socket Contacts, with Integrated Strain Relief, 5-16.2mm Cable Entry, White Flame Retardant Version, IP40

SMS18PDH1 thumbnail

Part no. : SMS18PDH1

18 Way Cable Connector for Pin or Socket Contacts, with Integrated Strain Relief, 5.8-20.3mm Cable Entry, IP40

SMS18PDH3 thumbnail

Part no. : SMS18PDH3

18 Way Cable Connector for Pin or Socket Contacts, with Integrated Strain Relief, 5.8-20.3mm Cable Entry, White Flame Retardant Version, IP40

SMS24PDH1 thumbnail

Part no. : SMS24PDH1

24 Way Cable Connector for Pin or Socket Contacts, with Integrated Strain Relief, 7.1-20.4mm Cable Entry, IP40

SMS24PDH3 thumbnail

Part no. : SMS24PDH3

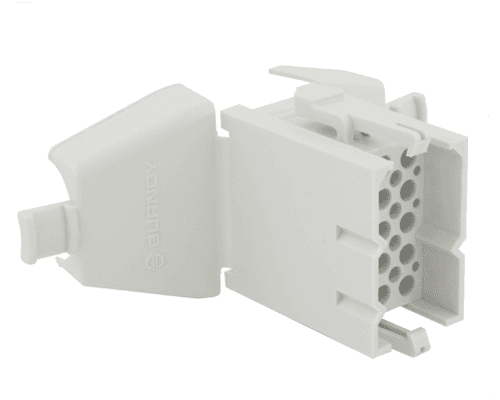

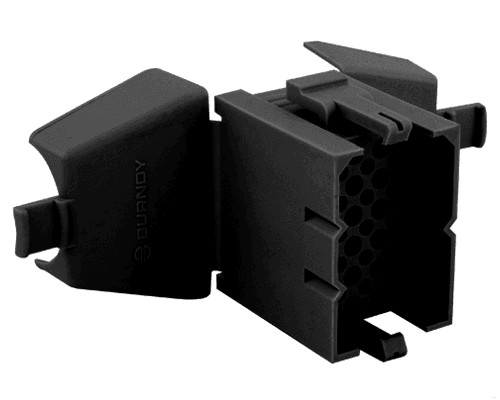

24 Way Cable Connector for Pin or Socket Contacts, with Integrated Strain Relief, 7.1-20.4mm Cable Entry, White Flame Retardant Version, IP40

SMS36PDH1 thumbnail

Part no. : SMS36PDH1

36 Way Cable Connector for Pin or Socket Contacts, with Integrated Strain Relief, 8.8-24.5mm Cable Entry, IP40

SMS36PDH3 thumbnail

Part no. : SMS36PDH3

36 Way Cable Connector for Pin or Socket Contacts, with Integrated Strain Relief, 8.8-24.5mm Cable Entry, White Flame Retardant Version, IP40

SMS2CSB1 thumbnail

Part no. : SMS2CSB1

Pin Protection Shroud for 2 Way Flanged Panel Connector

SMS3CSB1 thumbnail

Part no. : SMS3CSB1

Pin Protection Shroud for 3 Way Flanged Panel Connector

SMS4CSB1 thumbnail

Part no. : SMS4CSB1

Pin Protection Shroud for 4 Way Flanged Panel Connector

SMS6CSB1 thumbnail

Part no. : SMS6CSB1

Pin Protection Shroud for 6 Way Flanged Panel Connector

SMS9CSB1 thumbnail

Part no. : SMS9CSB1

Pin Protection Shroud for 9 Way Flanged Panel Connector

SMS12CSB1 thumbnail

Part no. : SMS12CSB1

Pin Protection Shroud for 12 Way Flanged Panel Connector

SMS15CSB1 thumbnail

Part no. : SMS15CSB1

Pin Protection Shroud for 15 way Flanged Panel Connector

SMS18CSB1 thumbnail

Part no. : SMS18CSB1

Pin Protection Shroud for 18 Way Flanged Panel Connector

SMS24CSB1 thumbnail

Part no. : SMS24CSB1

Pin Protection Shroud for 24 Way Flanged Panel Connector

SMS36CSB1 thumbnail

Part no. : SMS36CSB1

Pin Protection Shroud for 36 Way Flanged Panel Connector

SMS2H1 thumbnail

Part no. : SMS2H1

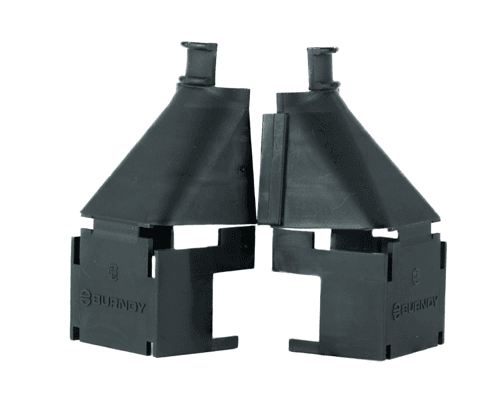

2-Part Strain Relief Hood for 2 Way Cable Connector, 1.78-8.38mm Cable Entry (Qty 1 = 2 Halves)

SMS3H1 thumbnail

Part no. : SMS3H1

2-Part Strain Relief Hood for 3 Way Cable Connector, 1.9-9.02mm Cable Entry (Qty 1 = 2 halves)

SMS4H1 thumbnail

Part no. : SMS4H1

2-Part Strain Relief Hood for 4 Way Cable Connector, 2.13-10.11mm Cable Entry (Qty 1 = 2 Halves)

SMS6H1 thumbnail

Part no. : SMS6H1

2-Part Strain Relief Hood for 6 Way Cable Connector, 2.29-8.26mm Cable Entry (Qty 1 = 2 Halves)

SMS9H1 thumbnail

Part no. : SMS9H1

2-Part Strain Relief Hood for 9 Way Cable Connector, 2.67-9.28mm Cable Entry (Qty 1 = 2 Halves)

SMS12H1 thumbnail

Part no. : SMS12H1

2-Part Strain Relief Hood for 12 Way Cable Connector, 3.05-10.16mm Cable Entry (Qty 1 = 2 Halves)

SMS15H1 thumbnail

Part no. : SMS15H1

2-Part Strain Relief Hood for 15 Way Cable Connector, 3.43-11.05mm Cable Entry (Qty 1 = 2 Halves)

SMS18H1 thumbnail

Part no. : SMS18H1

2-Part Strain Relief Hood for 18 Way Cable Connector, 3.81-11.81mm Cable Entry (Qty 1 = 2 Halves)

SMS24H1 thumbnail

Part no. : SMS24H1

2-Part Strain Relief Hood for 24 Way Cable Connector, 4.57-12.7mm Cable Entry (Qty 1 = 2 Halves)

SMS36H1 thumbnail

Part no. : SMS36H1

2-Part Strain Relief Hood for 36 Way Cable Connector, 6.98-15.88mm Cable Entry (Qty 1 = 2 Halves)

SMS3PHGE6 thumbnail

Part no. : SMS3PHGE6

3 Way Male Flanged Angled Board Connector with Dip-Solder Contacts, IP40

SMS4PHGE6 thumbnail

Part no. : SMS4PHGE6

4 Way Male Flanged Angled Board Connector with Dip-Solder Contacts, IP40

SMS6PHGE6 thumbnail

Part no. : SMS6PHGE6

6 Way Male Flanged Angled Board Connector with Dip-Solder Contacts, IP40

SMS9PHGE6 thumbnail

Part no. : SMS9PHGE6

9 Way Male Flanged Angled Board Connector with Dip-Solder Contacts, IP40

SMS10PHGE6 thumbnail

Part no. : SMS10PHGE6

10 Way Male Flanged Angled Board Connector with Dip-Solder Contacts, IP40

SMS3PHGE4 thumbnail

Part no. : SMS3PHGE4

3 Way Male Flanged Board Connector with Dip-Solder Contacts, IP40

SMS4PHGE4 thumbnail

Part no. : SMS4PHGE4

4 Way Male Flanged Board Connector with Dip-Solder Contacts, IP40

SMS6PHGE4 thumbnail

Part no. : SMS6PHGE4

6 Way Male Flanged Angled Board Connector with Dip-Solder Contacts, IP40

SMS9PHGE4 thumbnail

Part no. : SMS9PHGE4

9 Way Male Flanged Board Connector with Dip-Solder Contacts, IP40

SMS10PHGE4 thumbnail

Part no. : SMS10PHGE4

10 Way Male Flanged Board Connector with Dip-Solder Contacts, IP40

SMS3P3 thumbnail

Part no. : SMS3P3

3 Way Cable Connector for Socket Contacts, without Strain Relief, IP40

SMS4P3 thumbnail

Part no. : SMS4P3

4 Way Cable Connector for Socket Contacts, without Strain Relief, IP40

SMS6P3 thumbnail

Part no. : SMS6P3

6 Way Cable Connector for Socket Contacts, without Strain Relief, IP40

SMS9P3 thumbnail

Part no. : SMS9P3

9 Way Cable Connector for Socket Contacts, without Strain Relief, IP40

SMS10P3 thumbnail

Part no. : SMS10P3

10 Way Cable Connector for Socket Contacts, without Strain Relief, IP40

SMSPKB2 thumbnail

Part no. : SMSPKB2

Discrimination Sleeve for Souriau Trim-Trio Board Connector 1.6mm Pin Contact

SMSPKE3 thumbnail

Part no. : SMSPKE3

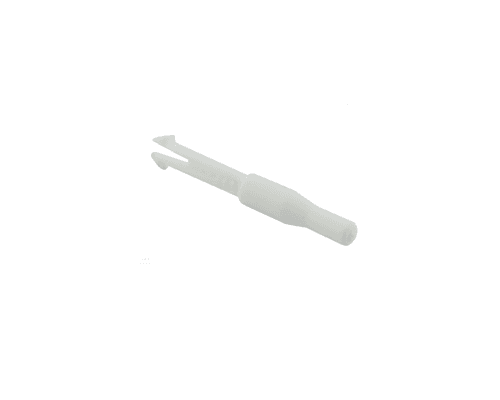

Pin for Souriau SMS Series Discrimination Cavity

SMS2GE3 thumbnail

Part no. : SMS2GE3

2 Way Female Flanged Board Connector with Dip-Solder Contacts, IP40

SMS2RE3TR29 thumbnail

Part no. : SMS2RE3TR29

2 Way Female Flanged Board Connector with Dip-Solder Stamped & Formed Contacts for 3.2mm PCB, IP40

SMS3GE3 thumbnail

Part no. : SMS3GE3

3 Way Female Flanged Board Connector with Dip-Solder Contacts, IP40

SMS3RE3TR29 thumbnail

Part no. : SMS3RE3TR29

3 Way Female Flanged Board Connector with Dip-Solder Stamped & Formed Contacts for 3.2mm PCB, IP40

SMS3GE33 thumbnail

Part no. : SMS3GE33

3 Way Female Flanged Board Connector with Dip-Solder Contacts, IP40

SMS4GE3 thumbnail

Part no. : SMS4GE3

4 Way Female Flanged Board Connector with Dip-Solder Contacts, IP40

SMS4RE3TR29 thumbnail

Part no. : SMS4RE3TR29

4 Way Female Flanged Board Connector with Dip-Solder Stamped & Formed Contacts for 3.2mm PCB, IP40

SMS6GE3 thumbnail

Part no. : SMS6GE3

6 Way Female Flanged Board Connector with Dip-Solder Contacts, IP40

SMS6RE3TR29 thumbnail

Part no. : SMS6RE3TR29

6 Way Female Flanged Board Connector with Dip-Solder Stamped & Formed Contacts for 3.2mm PCB, IP40

SMS6GE33 thumbnail

Part no. : SMS6GE33

6 Way Female Flanged Board Connector with Dip-Solder Contacts, IP40

SMS9GE3 thumbnail

Part no. : SMS9GE3

9 Way Female Flanged Board Connector with Dip-Solder Contacts, IP40

SMS9RE3TR29 thumbnail

Part no. : SMS9RE3TR29

9 Way Female Flanged Board Connector with Dip-Solder Stamped & Formed Contacts for 3.2mm PCB, IP40

SMS9GE33 thumbnail

Part no. : SMS9GE33

9 Way Female Flanged Board Connector with Dip-Solder Contacts, IP40

SMS12GE3 thumbnail

Part no. : SMS12GE3

12 Way Female Flanged Board Connector with Dip-Solder Contacts, IP40

SMS12RE3TR29 thumbnail

Part no. : SMS12RE3TR29

12 Way Female Flanged Board Connector with Dip-Solder Stamped & Formed Contacts for 3.2mm PCB, IP40

SMS12GE33 thumbnail

Part no. : SMS12GE33

12 Way Female Flanged Board Connector with Dip-Solder Contacts, IP40

SMS15GE3 thumbnail

Part no. : SMS15GE3

15 Way Female Flanged Board Connector with Dip-Solder Contacts, IP40

SMS15RE3TR29 thumbnail

Part no. : SMS15RE3TR29

15 Way Female Flanged Board Connector with Dip-Solder Stamped & Formed Contacts for 3.2mm PCB, IP40

SMS15GE33 thumbnail

Part no. : SMS15GE33

15 Way Female Flanged Board Connector with Dip-Solder Contacts, IP40

SMS18GE3 thumbnail

Part no. : SMS18GE3

18 Way Female Flanged Board Connector with Dip-Solder Contacts, IP40

SMS18RE3TR29 thumbnail

Part no. : SMS18RE3TR29

18 Way Female Flanged Board Connector with Dip-Solder Stamped & Formed Contacts for 3.2mm PCB, IP40

SMS18GE33 thumbnail

Part no. : SMS18GE33

18 Way Female Flanged Board Connector with Dip-Solder Contacts, IP40

SMS24GE3 thumbnail

Part no. : SMS24GE3

24 Way Female Flanged Board Connector with Dip-Solder Contacts, IP40

SMS24RE3TR29 thumbnail

Part no. : SMS24RE3TR29

24 Way Female Flanged Board Connector with Dip-Solder Stamped & Formed Contacts for 3.2mm PCB, IP40

SMS24GE33 thumbnail

Part no. : SMS24GE33

24 Way Female Flanged Board Connector with Dip-Solder Contacts, IP40

SMS36GE3 thumbnail

Part no. : SMS36GE3

36 Way Female Flanged Board Connector with Dip-Solder Contacts, IP40

SMS36RE3TR29 thumbnail

Part no. : SMS36RE3TR29

36 Way Female Flanged Board Connector with Dip-Solder Stamped & Formed Contacts for 3.2mm PCB, IP40

SMS36GE33 thumbnail

Part no. : SMS36GE33

36 Way Female Flanged Board Connector with Dip-Solder Contacts, IP40

SMS2GE4 thumbnail

Part no. : SMS2GE4

2 Way Male Flanged Board Connector with Dip-Solder Contacts, IP40

SMS2RE4TR29 thumbnail

Part no. : SMS2RE4TR29

2 Way Male Flanged Board Connector with Dip-Solder Stamped & Formed Contacts for 3.2mm PCB, IP40

SMS3GE4 thumbnail

Part no. : SMS3GE4

3 Way Male Flanged Board Connector with Dip-Solder Contacts, IP40

SMS3RE4TR29 thumbnail

Part no. : SMS3RE4TR29

3 Way Male Flanged Board Connector with Dip-Solder Stamped & Formed Contacts for 3.2mm PCB, IP40

SMS3GE43 thumbnail

Part no. : SMS3GE43

3 Way Male Flanged Board Connector with Dip-Solder Contacts, IP40

SMS4GE4 thumbnail

Part no. : SMS4GE4

4 Way Male Flanged Board Connector with Dip-Solder Contacts, IP40

SMS4RE4TR29 thumbnail

Part no. : SMS4RE4TR29

4 Way Male Flanged Board Connector with Dip-Solder Stamped & Formed Contacts for 3.2mm PCB, IP40

SMS6GE4 thumbnail

Part no. : SMS6GE4

6 Way Male Flanged Board Connector with Dip-Solder Contacts, IP40

SMS6RE4TR29 thumbnail

Part no. : SMS6RE4TR29

6 Way Male Flanged Board Connector with Dip-Solder Stamped & Formed Contacts for 3.2mm PCB, IP40

SMS6GE43 thumbnail

Part no. : SMS6GE43

6 Way Male Flanged Board Connector with Dip-Solder Contacts, IP40

SMS9GE4 thumbnail

Part no. : SMS9GE4

9 Way Male Flanged Board Connector with Dip-Solder Contacts, IP40

SMS9RE4TR29 thumbnail

Part no. : SMS9RE4TR29

9 Way Male Flanged Board Connector with Dip-Solder Stamped & Formed Contacts for 3.2mm PCB, IP40

SMS9GE43 thumbnail

Part no. : SMS9GE43

9 Way Male Flanged Board Connector with Dip-Solder Contacts, IP40

SMS12GE4 thumbnail

Part no. : SMS12GE4

12 Way Male Flanged Board Connector with Dip-Solder Contacts, IP40

SMS12RE4TR29 thumbnail

Part no. : SMS12RE4TR29

12 Way Male Flanged Board Connector with Dip-Solder Stamped & Formed Contacts for 3.2mm PCB, IP40

SMS12GE43 thumbnail

Part no. : SMS12GE43

12 Way Male Flanged Board Connector with Dip-Solder Contacts, IP40

SMS15GE4 thumbnail

Part no. : SMS15GE4

15 Way Male Flanged Board Connector with Dip-Solder Contacts, IP40

SMS15RE4TR29 thumbnail

Part no. : SMS15RE4TR29

15 Way Male Flanged Board Connector with Dip-Solder Stamped & Formed Contacts for 3.2mm PCB, IP40

SMS15GE43 thumbnail

Part no. : SMS15GE43

15 Way Male Flanged Board Connector with Dip-Solder Contacts, IP40

SMS18GE4 thumbnail

Part no. : SMS18GE4

18 Way Male Flanged Board Connector with Dip-Solder Contacts, IP40

SMS18RE4TR29 thumbnail

Part no. : SMS18RE4TR29

18 Way Male Flanged Board Connector with Dip-Solder Stamped & Formed Contacts for 3.2mm PCB, IP40

SMS18GE43 thumbnail

Part no. : SMS18GE43

18 Way Male Flanged Board Connector with Dip-Solder Contacts, IP40

SMS24GE4 thumbnail

Part no. : SMS24GE4

24 Way Male Flanged Board Connector with Dip-Solder Contacts, IP40

SMS24RE4TR29 thumbnail

Part no. : SMS24RE4TR29

24 Way Male Flanged Board Connector with Dip-Solder Stamped & Formed Contacts for 3.2mm PCB, IP40

SMS24GE43 thumbnail

Part no. : SMS24GE43

24 Way Male Flanged Board Connector with Dip-Solder Contacts, IP40

SMS36GE4 thumbnail

Part no. : SMS36GE4

36 Way Male Flanged Board Connector with Dip-Solder Contacts, IP40

SMS36RE4TR29 thumbnail

Part no. : SMS36RE4TR29

36 Way Male Flanged Board Connector with Dip-Solder Stamped & Formed Contacts for 3.2mm PCB, IP40

SMS36GE43 thumbnail

Part no. : SMS36GE43

36 Way Male Flanged Board Connector with Dip-Solder Contacts, IP40

SMS3GE5 thumbnail

Part no. : SMS3GE5

3 Way Female Flanged Angled Board Connector with Dip-Solder Contacts, IP40

SMS3GE53 thumbnail

Part no. : SMS3GE53

3 Way Female Flanged Angled Board Connector with Dip-Solder Contacts, IP40

SMS6GE5 thumbnail

Part no. : SMS6GE5

6 Way Female Flanged Angled Board Connector with Dip-Solder Contacts, IP40

SMS6GE53 thumbnail

Part no. : SMS6GE53

6 Way Female Flanged Angled Board Connector with Dip-Solder Contacts, IP40

SMS12GE5 thumbnail

Part no. : SMS12GE5

12 Way Female Flanged Angled Board Connector with Dip-Solder Contacts, IP40

SMS12GE53 thumbnail

Part no. : SMS12GE53

12 Way Female Flanged Angled Board Connector with Dip-Solder Contacts, IP40

SMS18GE5 thumbnail

Part no. : SMS18GE5

18 Way Female Flanged Angled Board Connector with Dip-Solder Contacts, IP40

SMS18GE53 thumbnail

Part no. : SMS18GE53

18 Way Female Flanged Angled Board Connector with Dip-Solder Contacts, IP40

SMS3GE6 thumbnail

Part no. : SMS3GE6

3 Way Male Flanged Angled Board Connector with Dip-Solder Contacts, IP40

SMS3GE63 thumbnail

Part no. : SMS3GE63

3 Way Male Flanged Angled Board Connector with Dip-Solder Contacts, IP40

SMS6GE6 thumbnail

Part no. : SMS6GE6

6 Way Male Flanged Angled Board Connector with Dip-Solder Contacts, IP40

SMS6GE63 thumbnail

Part no. : SMS6GE63

6 Way Male Flanged Angled Board Connector with Dip-Solder Contacts, IP40

SMS12GE6 thumbnail

Part no. : SMS12GE6

12 Way Male Flanged Angled Board Connector with Dip-Solder Contacts, IP40

SMS12GE63 thumbnail

Part no. : SMS12GE63

12 Way Male Flanged Angled Board Connector with Dip-Solder Contacts, IP40

SMS18GE6 thumbnail

Part no. : SMS18GE6

18 Way Male Flanged Angled Board Connector with Dip-Solder Contacts, IP40

SMS18GE63 thumbnail

Part no. : SMS18GE63

18 Way Male Flanged Angled Board Connector with Dip-Solder Contacts, IP40

SMS3PH3TR29 thumbnail

Part no. : SMS3PH3TR29

3 Way Male Flanged Angled Board Connector with Stamped Dip-Solder Contacts, IP40

SMS4PH3TR29 thumbnail

Part no. : SMS4PH3TR29

4 Way Male Flanged Angled Board Connector with Stamped Dip-Solder Contacts, IP40

SMS6PH3TR29 thumbnail

Part no. : SMS6PH3TR29

6 Way Male Flanged Angled Board Connector with Stamped Dip-Solder Contacts, IP40

SMS9PH3TR29 thumbnail

Part no. : SMS9PH3TR29

9 Way Male Flanged Angled Board Connector with Stamped Dip-Solder Contacts, IP40

SMS10PH3TR29 thumbnail

Part no. : SMS10PH3TR29

10 Way Male Flanged Angled Board Connector with Stamped Dip-Solder Contacts, IP40

SMS3PH4TR29 thumbnail

Part no. : SMS3PH4TR29

3 Way Male Flanged Board Connector with Stamped Dip-Solder Contacts, IP40

SMS4PH4TR29 thumbnail

Part no. : SMS4PH4TR29

4 Way Male Flanged Board Connector with Stamped Dip-Solder Contacts, IP40

SMS6PH4TR29 thumbnail

Part no. : SMS6PH4TR29

6 Way Male Flanged Board Connector with Stamped Dip-Solder Contacts, IP40

SMS9PH4TR29 thumbnail

Part no. : SMS9PH4TR29

9 Way Male Flanged Board Connector with Stamped Dip-Solder Contacts, IP40

SMS10PH4TR29 thumbnail

Part no. : SMS10PH4TR29

10 Way Male Flanged Board Connector with Stamped Dip-Solder Contacts, IP40

RC14M30K thumbnail

Part no. : RC14M30K

1.6mm Crimp Socket Contact, Machined Construction, Gold Plating, 1.50-2.50mm²

RC14M50K thumbnail

Part no. : RC14M50K

1.6mm Crimp Socket Contact, Machined Construction, Gold Plating, 1.50-2.50mm²

RC16M23D28 thumbnail

Part no. : RC16M23D28

1.6mm Crimp Socket Contact, Machined Construction, Gold Plating, 0.50-1.50mm²

RC16M23GE1K thumbnail

Part no. : RC16M23GE1K

1.6mm Crimp Socket Contact, Machined Construction, Gold Plating, FMLB Version, 0.50-1.50mm²

RC16M23GE7K thumbnail

Part no. : RC16M23GE7K

1.6mm Crimp Socket Contact, Machined Construction, Gold Plating, LBFM Version, 0.50-1.50mm²

RC16M23K thumbnail

Part no. : RC16M23K

1.6mm Crimp Socket Contact, Machined Construction, Gold Plating, 0.50-1.50mm²

RC16M23N thumbnail

Part no. : RC16M23N

1.6mm Crimp Socket Contact, Machined Construction, Gold Plating, 0.50-1.50mm²

RC16SE4K thumbnail

Part no. : RC16SE4K

1.6mm Solder Socket Contact, Machined Construction, Gold Plating, 0.52-1.50mm²

RC20M12E83K thumbnail

Part no. : RC20M12E83K

1.6mm Dip-Solder Socket Contact, Machined Construction, Gold Plating

RC20M12E84K thumbnail

Part no. : RC20M12E84K

1.6mm Dip-Solder Socket Contact, Machined Construction, Gold Plating

RC20M12E8K thumbnail

Part no. : RC20M12E8K

1.6mm Dip-Solder Socket Contact, Machined Construction, Gold Plating

RC20M12GE1K thumbnail

Part no. : RC20M12GE1K

1.6mm Crimp Socket Contact, Machined Construction, Gold Plating, FMLB Version, 0.32-0.50mm²

RC20M12GE7K thumbnail

Part no. : RC20M12GE7K

1.6mm Crimp Socket Contact, Machined Construction, Gold Plating, LBFM Version, 0.32-0.50mm²

RC20M12K thumbnail

Part no. : RC20M12K

1.6mm Crimp Socket Contact, Machined Construction, Gold Plating, 0.32-0.50mm²

RC20M12N thumbnail

Part no. : RC20M12N

1.6mm Crimp Socket Contact, Machined Construction, Gold Plating, 0.32-0.50mm²

RC20M13K thumbnail

Part no. : RC20M13K

1.6mm Crimp Socket Contact, Machined Construction, Gold Plating, 0.32-0.50mm²

RC20M13KUC thumbnail

Part no. : RC20M13KUC

1.6mm Crimp Socket Contact, Machined Construction, Gold Plating, No Colour Band Version, 0.32-0.50mm²

RC24M9K thumbnail

Part no. : RC24M9K

1.6mm Crimp Socket Contact, Machined Construction, Gold Plating, 0.12-0.25mm²

RC24M9KUC thumbnail

Part no. : RC24M9KUC

1.6mm Crimp Socket Contact, Machined Construction, Gold Plating, No Colour Band Version, 0.12-0.25mm²

RC28M1K thumbnail

Part no. : RC28M1K

1.6mm Crimp Socket Contact, Machined Construction, Gold Plating, 0.05-0.08mm²

RCDXK1D28 thumbnail

Part no. : RCDXK1D28

1.6mm Multipiece Socket Contact Kit for Coaxial Cable

RM14M30K thumbnail

Part no. : RM14M30K

1.6mm Crimp Pin Contact, Machined Construction, Gold Plating, 1.50-2.50mm²

RM14M50K thumbnail

Part no. : RM14M50K

1.6mm Crimp Pin Contact, Machined Construction, Gold Plating, 1.50-2.50mm²

RM16M23D28 thumbnail

Part no. : RM16M23D28

1.6mm Crimp Pin Contact, Machined Construction, Gold Plating, 0.50-1.50mm²

RM16M23GE1K thumbnail

Part no. : RM16M23GE1K

1.6mm Crimp Pin Contact, Machined Construction, Gold Plating, FMLB Version, 0.50-1.50mm²

RM16M23J thumbnail

Part no. : RM16M23J

1.6mm Crimp Pin Contact, Machined Construction, Gold Plating, 0.50-1.50mm²

RM16M23K thumbnail

Part no. : RM16M23K

1.6mm Crimp Pin Contact, Machined Construction, Gold Plating, 0.50-1.50mm²

RM16M23M thumbnail

Part no. : RM16M23M

1.6mm Crimp Pin Contact, Machined Construction, Gold Plating, 0.50-1.50mm²

RM16M23N thumbnail

Part no. : RM16M23N

1.6mm Crimp Pin Contact, Machined Construction, Gold Plating, 0.50-1.50mm²

RM16SE0K thumbnail

Part no. : RM16SE0K

1.6mm Solder Pin Contact, Machined Construction, Gold Plating, 0.52-1.50mm²

RM20M12E8K thumbnail

Part no. : RM20M12E8K

1.6mm Dip-Solder Pin Contact, Machined Construction, Gold Plating

RM20M12K thumbnail

Part no. : RM20M12K

1.6mm Crimp Pin Contact, Machined Construction, Gold Plating, 0.32-0.50mm²

RM20M12M thumbnail

Part no. : RM20M12M

1.6mm Crimp Pin Contact, Machined Construction, Gold Plating, 0.32-0.50mm²

RM20M12N thumbnail

Part no. : RM20M12N

1.6mm Crimp Pin Contact, Machined Construction, Gold Plating, 0.32-0.50mm²

RM20M13K thumbnail

Part no. : RM20M13K

1.6mm Crimp Pin Contact, Machined Construction, Gold Plating, 0.32-0.50mm²

RM20M13KUC thumbnail

Part no. : RM20M13KUC

1.6mm Crimp Pin Contact, Machined Construction, Gold Plating, No Colour Band Version, 0.32-0.50mm²

RM24M9K thumbnail

Part no. : RM24M9K

1.6mm Crimp Pin Contact, Machined Construction, Gold Plating, 0.12-0.25mm²

RM24M9KUC thumbnail

Part no. : RM24M9KUC

1.6mm Crimp Pin Contact, Machined Construction, Gold Plating, No Colour Band Version, 0.12-0.25mm²

RM24M9M thumbnail

Part no. : RM24M9M

1.6mm Crimp Pin Contact, Machined Construction, Gold Plating, 0.12-0.25mm²

RM28M1K thumbnail

Part no. : RM28M1K

1.6mm Crimp Pin Contact, Machined Construction, Gold Plating, 0.05-0.08mm²

RM28M1M thumbnail

Part no. : RM28M1M

1.6mm Crimp Pin Contact, Machined Construction, Gold Plating, 0.05-0.08mm²

RMDXK10D28 thumbnail

Part no. : RMDXK10D28

1.6mm Multipiece Pin Contact Kit for Coaxial Cable

RTM205 thumbnail

Part no. : RTM205

Insertion Tool for Souriau 1mm & 1.6mm Contacts

RX2025GE1 thumbnail

Part no. : RX2025GE1

Extraction Tool for Souriau 1.6mm Contacts

S16RCM14 thumbnail

Part no. : S16RCM14

Crimp Tool Head for Souriau 1.6mm Machined Contacts, for use with SHANDLES Handles

S16RCM1450 thumbnail

Part no. : S16RCM1450

Crimp Tool Head for Souriau 1.6mm Machined Contacts, for use with SHANDLES Handles

S16RCM16 thumbnail

Part no. : S16RCM16

Crimp Tool Head for Souriau 1.6mm Machined Contacts, for use with SHANDLES Handles

S16RCM20 thumbnail

Part no. : S16RCM20

Crimp Tool Head for Souriau 1.6mm Machined Contacts, for use with SHANDLES Handles

S16SCM20 thumbnail

Part no. : S16SCM20

Crimp Tool Head for Souriau 1.6mm Stamped & Formed Contacts, for use with SHANDLES Handles

S16SCML1 thumbnail

Part no. : S16SCML1

Crimp Tool Head for Souriau 1.6mm Stamped & Formed Contacts, for use with SHANDLES Handles

S16SCML11 thumbnail

Part no. : S16SCML11

Crimp Tool Head for Souriau 1.6mm Stamped & Formed Contacts, for use with SHANDLES Handles

SC14M1S31 thumbnail

Part no. : SC14M1S31

3,000 Piece Reel of 1.6mm Crimp Socket Contacts, Stamped & Formed Construction, Gold Plating, 2.10-2.50mm² (Priced Per Contact)

SC14M1TK6 thumbnail

Part no. : SC14M1TK6

3,000 Piece Reel of 1.6mm Crimp Socket Contacts, Stamped & Formed Construction, Tin Plating, 2.10-2.50mm² (Priced Per Contact)

SC14ML1S18 thumbnail

Part no. : SC14ML1S18

1.6mm Crimp Socket Contact, Stamped & Formed Construction, Gold Plating, 2.10-2.50mm²

SC14ML1S31 thumbnail

Part no. : SC14ML1S31

1.6mm Crimp Socket Contact, Stamped & Formed Construction, Gold Plating, 2.10-2.50mm²

SC14ML1TK6 thumbnail

Part no. : SC14ML1TK6

1.6mm Crimp Socket Contact, Stamped & Formed Construction, Tin Plating, 2.10-2.50mm²

SC16M11S18 thumbnail

Part no. : SC16M11S18

3,000 Piece Reel of 1.6mm Crimp Socket Contacts, Stamped & Formed Construction, Gold Plating, 0.82-1.50mm² (Priced Per Contact)

SC16M11S31 thumbnail

Part no. : SC16M11S31

3,000 Piece Reel of 1.6mm Crimp Socket Contacts, Stamped & Formed Construction, Gold Plating, 0.82-1.50mm² (Priced Per Contact)

SC16M11TK6 thumbnail

Part no. : SC16M11TK6

3,000 Piece Reel of 1.6mm Crimp Socket Contacts, Stamped & Formed Construction, Tin Plating, 0.82-1.50mm² (Priced Per Contact)

SC16M1S18 thumbnail

Part no. : SC16M1S18

3,000 Piece Reel of 1.6mm Crimp Socket Contacts, Stamped & Formed Construction, Gold Plating, 0.82-1.50mm² (Priced Per Contact)

SC16M1S31 thumbnail

Part no. : SC16M1S31

3,000 Piece Reel of 1.6mm Crimp Socket Contacts, Stamped & Formed Construction, Gold Plating, 0.82-1.50mm² (Priced Per Contact)

SC16M1TK6 thumbnail

Part no. : SC16M1TK6

3,000 Piece Reel of 1.6mm Crimp Socket Contacts, Stamped & Formed Construction, Tin Plating, 0.82-1.50mm² (Priced Per Contact)

SC16ML11S18 thumbnail

Part no. : SC16ML11S18

1.6mm Crimp Socket Contact, Stamped & Formed Construction, Gold Plating, 0.82-1.50mm²

SC16ML11S31 thumbnail

Part no. : SC16ML11S31

1.6mm Crimp Socket Contact, Stamped & Formed Construction, Gold Plating, 0.82-1.50mm²

SC16ML11TK6 thumbnail

Part no. : SC16ML11TK6

1.6mm Crimp Socket Contact, Stamped & Formed Construction, Tin Plating, 0.82-1.50mm²

SC16ML1S18 thumbnail

Part no. : SC16ML1S18

1.6mm Crimp Socket Contact, Stamped & Formed Construction, Gold Plating, 0.82-1.50mm²

SC16ML1S31 thumbnail

Part no. : SC16ML1S31

1.6mm Crimp Socket Contact, Stamped & Formed Construction, Gold Plating, 0.82-1.50mm²

SC16ML1TK6 thumbnail

Part no. : SC16ML1TK6

1.6mm Crimp Socket Contact, Stamped & Formed Construction, Tin Plating, 0.82-1.50mm²

SC20M1S18 thumbnail

Part no. : SC20M1S18

3,000 Piece Reel of 1.6mm Crimp Socket Contacts, Stamped & Formed Construction, Gold Plating, 0.32-0.50mm² (Priced Per Contact)

SC20M1S31 thumbnail

Part no. : SC20M1S31

3,000 Piece Reel of 1.6mm Crimp Socket Contacts, Stamped & Formed Construction, Gold Plating, 0.32-0.50mm² (Priced Per Contact)

SC20M1TK6 thumbnail

Part no. : SC20M1TK6

3,000 Piece Reel of 1.6mm Crimp Socket Contacts, Stamped & Formed Construction, Tin Plating, 0.32-0.50mm² (Priced Per Contact)

SC20ML1S18 thumbnail

Part no. : SC20ML1S18

1.6mm Crimp Socket Contact, Stamped & Formed Construction, Gold Plating, 0.32-0.50mm²

SC20ML1S31 thumbnail

Part no. : SC20ML1S31

1.6mm Crimp Socket Contact, Stamped & Formed Construction, Gold Plating, 0.32-0.50mm²

SC20ML1TK6 thumbnail

Part no. : SC20ML1TK6

1.6mm Crimp Socket Contact, Stamped & Formed Construction, Tin Plating, 0.32-0.50mm²

SC24M1S18 thumbnail

Part no. : SC24M1S18

3,000 Piece Reel of 1.6mm Crimp Socket Contacts, Stamped & Formed Construction, Gold Plating, 0.12-0.25mm² (Priced Per Contact)

SC24M1S31 thumbnail

Part no. : SC24M1S31

3,000 Piece Reel of 1.6mm Crimp Socket Contacts, Stamped & Formed Construction, Gold Plating, 0.12-0.25mm² (Priced Per Contact)

SC24M1TK6 thumbnail

Part no. : SC24M1TK6

3,000 Piece Reel of 1.6mm Crimp Socket Contacts, Stamped & Formed Construction, Tin Plating, 0.12-0.25mm² (Priced Per Contact)

SC24ML1S31 thumbnail

Part no. : SC24ML1S31

1.6mm Crimp Socket Contact, Stamped & Formed Construction, Gold Plating, 0.12-0.25mm²

SC24ML1TK6 thumbnail

Part no. : SC24ML1TK6

1.6mm Crimp Socket Contact, Stamped & Formed Construction, Tin Plating, 0.12-0.25mm²

SHANDLES thumbnail

Part no. : SHANDLES

Crimp Tool Handles for Souriau 1mm & 1.6mm Contacts

SM14M1S31 thumbnail

Part no. : SM14M1S31

3,000 Piece Reel of 1.6mm Crimp Pin Contacts, Stamped & Formed Construction, Gold Plating, 2.10-2.50mm² (Priced Per Contact)

SM14M1TK6 thumbnail

Part no. : SM14M1TK6

3,000 Piece Reel of 1.6mm Crimp Pin Contacts, Stamped & Formed Construction, Tin Plating, 2.10-2.50mm² (Priced Per Contact)

SM14ML1S18 thumbnail

Part no. : SM14ML1S18

1.6mm Crimp Pin Contact, Stamped & Formed Construction, Gold Plating, 2.10-2.50mm²

SM14ML1S31 thumbnail

Part no. : SM14ML1S31

1.6mm Crimp Pin Contact, Stamped & Formed Construction, Gold Plating, 2.10-2.50mm²

SM14ML1TK6 thumbnail

Part no. : SM14ML1TK6

1.6mm Crimp Pin Contact, Stamped & Formed Construction, Tin Plating, 2.10-2.50mm²

SM16M11S18 thumbnail

Part no. : SM16M11S18

3,000 Piece Reel of 1.6mm Crimp Pin Contacts, Stamped & Formed Construction, Gold Plating, 0.82-1.50mm² (Priced Per Contact)

SM16M11S31 thumbnail

Part no. : SM16M11S31

3,000 Piece Reel of 1.6mm Crimp Pin Contacts, Stamped & Formed Construction, Gold Plating, 0.82-1.50mm² (Priced Per Contact)

SM16M11TK6 thumbnail

Part no. : SM16M11TK6

3,000 Piece Reel of 1.6mm Crimp Pin Contacts, Stamped & Formed Construction, Tin Plating, 0.82-1.50mm² (Priced Per Contact)

SM16M1S31 thumbnail

Part no. : SM16M1S31

3,000 Piece Reel of 1.6mm Crimp Pin Contacts, Stamped & Formed Construction, Gold Plating, 0.82-1.50mm² (Priced Per Contact)

SM16M1TK6 thumbnail

Part no. : SM16M1TK6

3,000 Piece Reel of 1.6mm Crimp Pin Contacts, Stamped & Formed Construction, Tin Plating, 0.82-1.50mm² (Priced Per Contact)

SM16ML11S18 thumbnail

Part no. : SM16ML11S18

1.6mm Crimp Pin Contact, Stamped & Formed Construction, Gold Plating, 0.82-1.50mm²

SM16ML11S31 thumbnail

Part no. : SM16ML11S31

1.6mm Crimp Pin Contact, Stamped & Formed Construction, Gold Plating, 0.82-1.50mm²

SM16ML11TK6 thumbnail

Part no. : SM16ML11TK6

1.6mm Crimp Pin Contact, Stamped & Formed Construction, Tin Plating, 0.82-1.50mm²

SM16ML1S18 thumbnail

Part no. : SM16ML1S18

1.6mm Crimp Pin Contact, Stamped & Formed Construction, Gold Plating, 0.82-1.50mm²

SM16ML1S31 thumbnail

Part no. : SM16ML1S31

1.6mm Crimp Pin Contact, Stamped & Formed Construction, Gold Plating, 0.82-1.50mm²

SM16ML1TK6 thumbnail

Part no. : SM16ML1TK6

1.6mm Crimp Pin Contact, Stamped & Formed Construction, Tin Plating, 0.82-1.50mm²

SM20M1S18 thumbnail

Part no. : SM20M1S18

3,000 Piece Reel of 1.6mm Crimp Pin Contacts, Stamped & Formed Construction, Gold Plating, 0.32-0.50mm² (Priced Per Contact)

SM20M1S31 thumbnail

Part no. : SM20M1S31

3,000 Piece Reel of 1.6mm Crimp Pin Contacts, Stamped & Formed Construction, Gold Plating, 0.32-0.50mm² (Priced Per Contact)

SM20M1TK6 thumbnail

Part no. : SM20M1TK6

3,000 Piece Reel of 1.6mm Crimp Pin Contacts, Stamped & Formed Construction, Tin Plating, 0.32-0.50mm² (Priced Per Contact)

SM20ML1S18 thumbnail

Part no. : SM20ML1S18

1.6mm Crimp Pin Contact, Stamped & Formed Construction, Gold Plating, 0.32-0.50mm²

SM20ML1S31 thumbnail

Part no. : SM20ML1S31

1.6mm Crimp Pin Contact, Stamped & Formed Construction, Gold Plating, 0.32-0.50mm²

SM20ML1TK6 thumbnail

Part no. : SM20ML1TK6

1.6mm Crimp Pin Contact, Stamped & Formed Construction, Tin Plating, 0.32-0.50mm²

SM24M1S18 thumbnail

Part no. : SM24M1S18

3,000 Piece Reel of 1.6mm Crimp Pin Contacts, Stamped & Formed Construction, Gold Plating, 0.12-0.25mm² (Priced Per Contact)

SM24M1S31 thumbnail

Part no. : SM24M1S31

3,000 Piece Reel of 1.6mm Crimp Pin Contacts, Stamped & Formed Construction, Gold Plating, 0.12-0.25mm² (Priced Per Contact)

SM24M1TK6 thumbnail

Part no. : SM24M1TK6

3,000 Piece Reel of 1.6mm Crimp Pin Contacts, Stamped & Formed Construction, Tin Plating, 0.12-0.25mm² (Priced Per Contact)

SM24ML1S18 thumbnail

Part no. : SM24ML1S18

1.6mm Crimp Pin Contact, Stamped & Formed Construction, Gold Plating, 0.12-0.25mm²

SM24ML1S31 thumbnail

Part no. : SM24ML1S31

1.6mm Crimp Pin Contact, Stamped & Formed Construction, Gold Plating, 0.12-0.25mm²

SM24ML1TK6 thumbnail

Part no. : SM24ML1TK6

1.6mm Crimp Pin Contact, Stamped & Formed Construction, Tin Plating, 0.12-0.25mm²

Technical expertise is just a click away. For rapid service & personalised support, complete the following form or call 01744 815 001

What Our Customers Say

Quotation marks

“I am writing to your company today to say a very big thank you, I mainly speak to Fran she is such a lovely lady, nothing is to much trouble and your assembly workers are brilliant they have very kindly fitted in many urgent orders for me over the years and always deliver on time.

I love working with your company it is excellent so please say a very big thank you to all your staff, they have done you proud.”

Woods, Essex
Quotation marks

“Once again many thanks for your very good service response, I wish I could say all companies we deal with are like this, but sadly that is not always the case!”

Combstock, Hereford

Long Term, Flexible Call-Offs

We can facilitate your Kanban, Just-in-Time requirements and schedule orders over a 12 month period, supporting contracts that require that extra level of support and taking advantage of secure pricing levels and stock availability.

Clipboard
Quote & Order
Van
Stock Arrival & Start
Credit cards
Pay as You Go
Box with tick
Tracked Service
