Sales Description

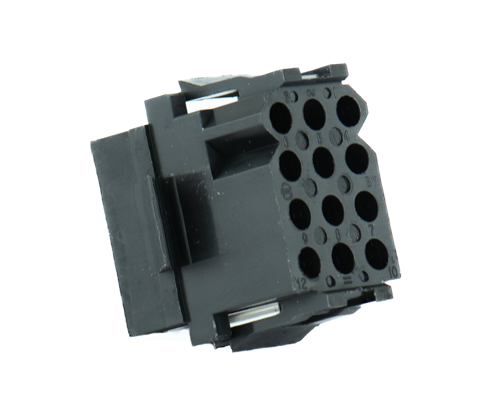

Got a question about this product?Lightweight multi-pin rectangular connector system with latch locking mechanism.
SMS (Quick Mating) connectors offer pin-counts from 2 to 36 with a current carrying capacity of up to 13A per contact.
The series caters for cable OD’s of up to 24.5mm, has a wire gauge max. of 2.50mm² and is capable of offering IP40 ingress protection in mated state.
Technical Specification
- Approvals UL, CSA
- Backshell Included No
- Body Orientation Straight
- Connector Type Panel Connector
- Contact Plating NA
- Contacts Included No
- Coupling Area Material Plastic
- Current Rating 13A
- Voltage Rating 250V
- Electrical Notes Voltage rating according to UL/CSA standard
- Degree of Ingress Protection IP40
- EMC Sheilding Capability No
- Gender of Contacts Accepted Male or Female
- Gender of Insert Female
- Housing Material Plastic
- Keyway/Coding Type Standard
- Locking System Latch
- Min. Mechanical Mating Cycles 500
- Max. Wire Gauge/Cross Sectional Area 2.50mm²
- Min. Cable Entry (mm) NA
- Max. Cable Entry (mm) NA
- Number of Ways 12
- Operating Temperature -55 to +105°C
- Positive Earth (PE) No (possible with specific contact)
- Termination Method/Technology Crimp
