Souriau Clipper Series

Souriau Clipper series is a robust plastic circular connector system with screw locking functionality.

Clipper connectors are compliant with IP67/IP68 sealing and major electrical IEC and UL standards which guarantee a secured connection for its users.

Due to its water, corrosion, and UV resistant capabilities, the Clipper series provides a long outdoor life expectancy even in harsh environments.

Within the Clipper series there are 4 shell sizes and 7 layout options allowing a number of possibilities for the user.

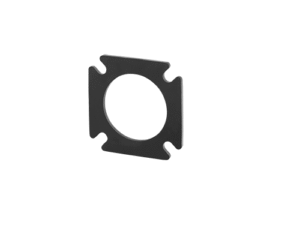

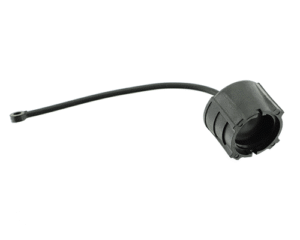

Available with a large choice of accessories from single wire sealing to flexible conduit adapters, the Clipper series has many solutions for your termination requirements.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.

• No. of Contacts: 4-40
• Locking Mechanism: Screw

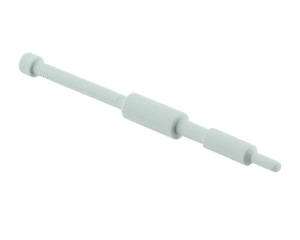

• Contact Termination: Crimp, Solder, Dip-Solder
• Wire Gauge Max: 2.60mm²
• Cable Diameter Range: 6-32mm
• Connector Types: Cable to Panel, Cable to Cable
• Max. Voltage: 380V (class 2 VDE)
• Max. Current: 5-13A
• Ingress Protection Max: IP40, IP67, IP68
• Moulded Cable Option: No

Electrical Notes

See literature for derating curves

Safety Notes

Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury

Ingress Protection Notes

Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise

Additional accessories may also be required to maintain IP rating in some instances
