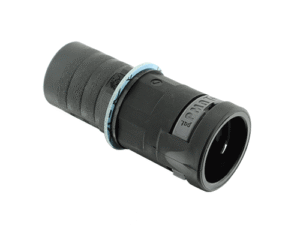

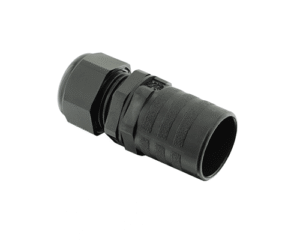

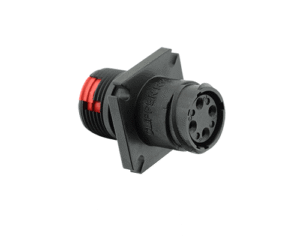

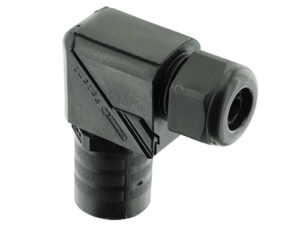

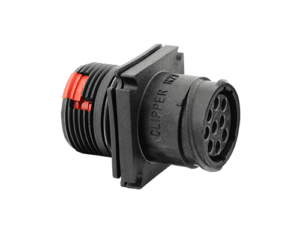

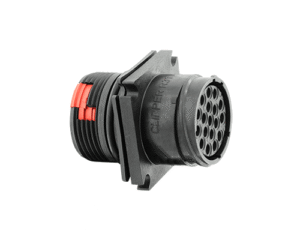

Souriau Clipper series is a robust plastic circular connector system with screw locking functionality.
Clipper connectors are compliant with IP67/IP68 sealing and major electrical IEC and UL standards which guarantee a secured connection for its users.
Due to its water, corrosion, and UV resistant capabilities, the Clipper series provides a long outdoor life expectancy even in harsh environments.
Within the Clipper series there are 4 shell sizes and 7 layout options allowing a number of possibilities for the user.
Available with a large choice of accessories from single wire sealing to flexible conduit adapters, the Clipper series has many solutions for your termination requirements.
For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.
- No. of Contacts: 4-40
- Locking Mechanism: Screw
- Contact Termination: Crimp, Solder, Dip-Solder
- Wire Gauge Max: 2.60mm²
- Cable Diameter Range: 6-32mm
- Connector Types: Cable to Panel, Cable to Cable
- Max. Voltage: 380V (class 2 VDE)
- Max. Current: 5-13A
- Ingress Protection Max: IP40, IP67, IP68
- Moulded Cable Option: No
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
Souriau Clipper series is a robust plastic circular connector system with screw locking functionality.
Clipper connectors are compliant with IP67/IP68 sealing and major electrical IEC and UL standards which guarantee a secured connection for its users.
Due to its water, corrosion, and UV resistant capabilities, the Clipper series provides a long outdoor life expectancy even in harsh environments.
Within the Clipper series there are 4 shell sizes and 7 layout options allowing a number of possibilities for the user.
Available with a large choice of accessories from single wire sealing to flexible conduit adapters, the Clipper series has many solutions for your termination requirements.
For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.
- No. of Contacts: 4-40
- Locking Mechanism: Screw
- Contact Termination: Crimp, Solder, Dip-Solder
- Wire Gauge Max: 2.60mm²
- Cable Diameter Range: 6-32mm
- Connector Types: Cable to Panel, Cable to Cable
- Max. Voltage: 380V (class 2 VDE)
- Max. Current: 5-13A
- Ingress Protection Max: IP40, IP67, IP68
- Moulded Cable Option: No
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
CL1C3201
31 Way In-Line Cable Connector for Pin Contacts, without Backshell, IP68
CL1C3200
31 Way In-Line Cable Connector for Pin Contacts, without Backshell, IP40
CL1C3101
18 Way In-Line Cable Connector for Pin Contacts, without Backshell, IP68
CL1C3100
18 Way In-Line Cable Connector for Pin Contacts, without Backshell, IP40
CL1C2201
14 Way In-Line Cable Connector for Pin Contacts, without Backshell, IP68
CL1C2200
14 Way In-Line Cable Connector for Pin Contacts, without Backshell, IP40
CL1C2101
9 Way In-Line Cable Connector for Pin Contacts, without Backshell, IP68
CL1C2100
9 Way In-Line Cable Connector for Pin Contacts, without Backshell, IP40
CL1C1201
9 Way In-Line Cable Connector for Pin Contacts, without Backshell, IP68
CL1C1200
9 Way In-Line Cable Connector for Pin Contacts, without Backshell, IP40
CL1C1101
4 Way In-Line Cable Connector for Pin Contacts, without Backshell, IP68
CL1C1100
4 Way In-Line Cable Connector for Pin Contacts, without Backshell, IP40
SHANDLES
Crimp Tool Handle
S20CFSP
Crimp Tool Head
S16CFSP
Crimp Tool Head
M22520/1-02
Crimp Tool Head
M22520/1-01
Crimp Tool Frame
CM16SS10MQ
1.6mm Solder Socket Contact, Machined, Gold Plating, Max. 1.91mm²
CM16SC20MQ
1.6mm Crimp Socket Contact with Reducing Sleeve, Machined, Gold Plating, 0.21-0.60mm²
CM16SC10MQ
1.6mm Crimp Socket Contact, Machined, Gold Plating, 0.93-1.91mm²
CM16SC00LY
1.6mm Crimp Socket Contact, Machined, Gold Plating, 0.93-2.60mm²
CM16PT10LY
1.6mm Dip-Solder Pin Contact, Machined, Gold Plating
CM16PS10MQ
1.6mm Solder Pin Contact, Machined, Gold Plating, Max. 1.91mm²
CM16PC20MQ
1.6mm Crimp Pin Contact with Reducing Sleeve, Machined, Gold Plating, 0.21-0.60mm²
