Sales Description

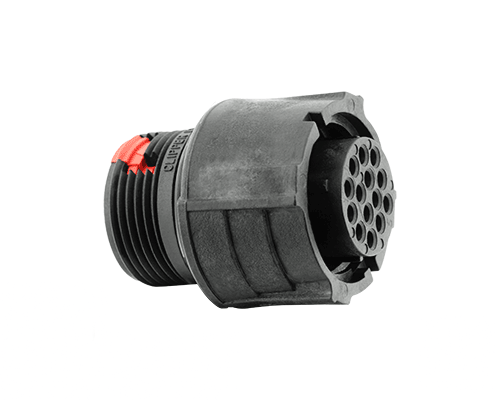

Got a question about this product?Robust multi-pin circular connector system with screw locking mechanism.
Clipper connectors offer pin-counts from 4 to 40 with a current carrying capacity of up to 13A per contact.
The series caters for cable OD’s of up to 32mm, has a wire gauge max. of 2.60mm² and is capable of offering IP67/IP68 ingress protection in mated state.
Technical Specification
- Approvals UL, CSA
- Backshell Included No
- Body Orientation Straight
- Connector Type Cable Connector
- Contact Plating NA
- Contacts Included No
- Coupling Area Material Plastic
- Current Rating 7A
- Voltage Rating 1500 Vrms min (Withstand)
- Electrical Notes In accordance with DIN 57110b
- Degree of Ingress Protection IP67
- EMC Sheilding Capability No
- Gender of Insert Female
- Housing Material Plastic
- Keyway/Coding Type Standard
- Locking System Screw
- Min. Mechanical Mating Cycles 250
- Max. Wire Gauge/Cross Sectional Area 2.60mm²
- Min. Cable Entry (mm) NA
- Max. Cable Entry (mm) NA
- Number of Ways 14
- Operating Temperature -40 to +125°C
- Positive Earth (PE) No
- Shell Size 2
- Termination Method/Technology Crimp, Solder
