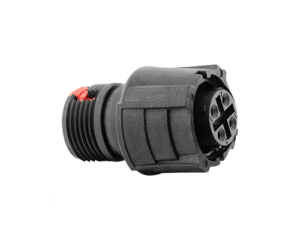

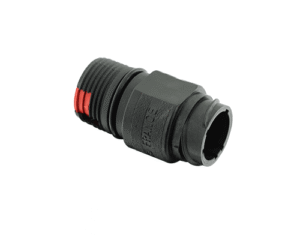

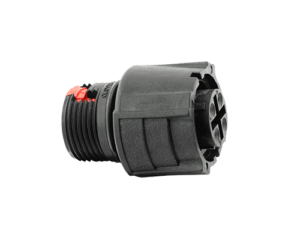

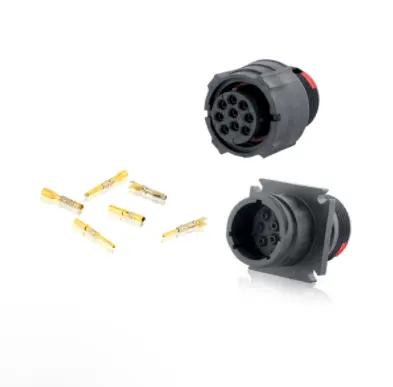

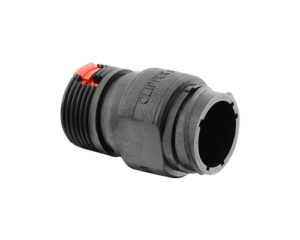

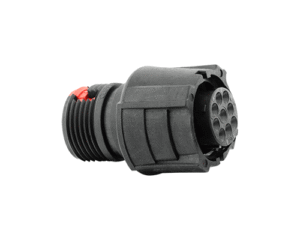

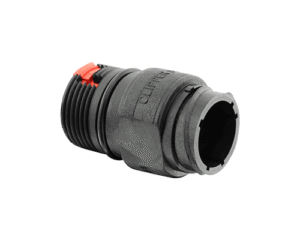

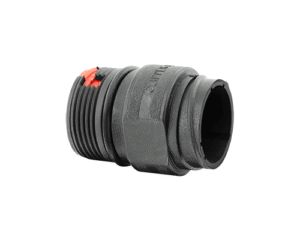

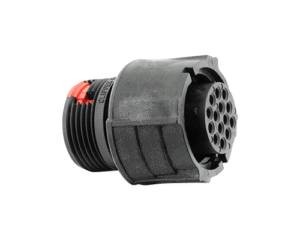

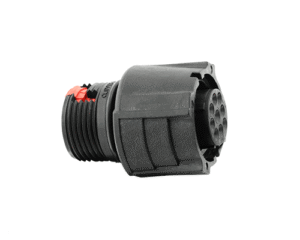

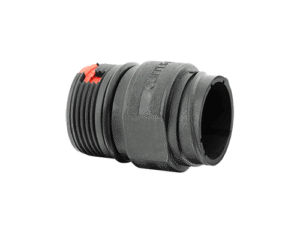

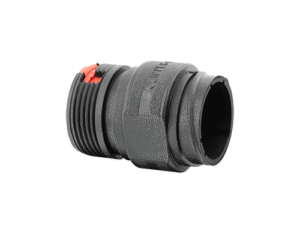

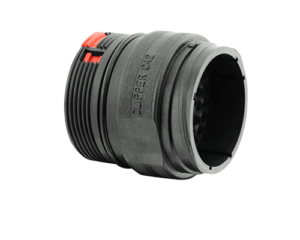

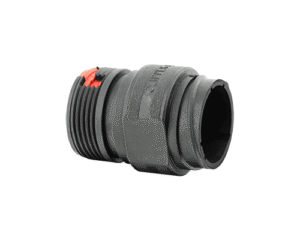

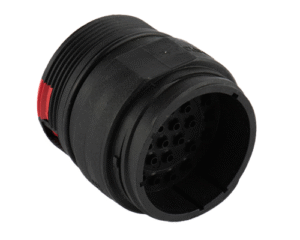

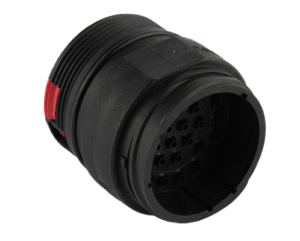

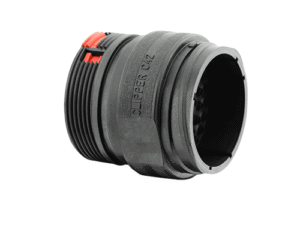

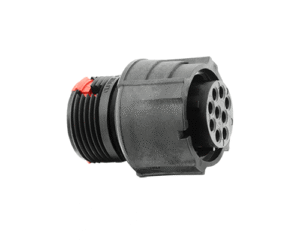

Souriau Clipper series is a robust plastic circular connector system with screw locking functionality.
Clipper connectors are compliant with IP67/IP68 sealing and major electrical IEC and UL standards which guarantee a secured connection for its users.
Due to its water, corrosion, and UV resistant capabilities, the Clipper series provides a long outdoor life expectancy even in harsh environments.
Within the Clipper series there are 4 shell sizes and 7 layout options allowing a number of possibilities for the user.
Available with a large choice of accessories from single wire sealing to flexible conduit adapters, the Clipper series has many solutions for your termination requirements.
For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.
- No. of Contacts: 4-40
- Locking Mechanism: Screw
- Contact Termination: Crimp, Solder, Dip-Solder
- Wire Gauge Max: 2.60mm²
- Cable Diameter Range: 6-32mm
- Connector Types: Cable to Panel, Cable to Cable
- Max. Voltage: 380V (class 2 VDE)
- Max. Current: 5-13A
- Ingress Protection Max: IP40, IP67, IP68
- Moulded Cable Option: No
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
Souriau Clipper series is a robust plastic circular connector system with screw locking functionality.
Clipper connectors are compliant with IP67/IP68 sealing and major electrical IEC and UL standards which guarantee a secured connection for its users.
Due to its water, corrosion, and UV resistant capabilities, the Clipper series provides a long outdoor life expectancy even in harsh environments.
Within the Clipper series there are 4 shell sizes and 7 layout options allowing a number of possibilities for the user.
Available with a large choice of accessories from single wire sealing to flexible conduit adapters, the Clipper series has many solutions for your termination requirements.
For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.
- No. of Contacts: 4-40
- Locking Mechanism: Screw
- Contact Termination: Crimp, Solder, Dip-Solder
- Wire Gauge Max: 2.60mm²
- Cable Diameter Range: 6-32mm
- Connector Types: Cable to Panel, Cable to Cable
- Max. Voltage: 380V (class 2 VDE)
- Max. Current: 5-13A
- Ingress Protection Max: IP40, IP67, IP68
- Moulded Cable Option: No
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
CL192001
Shell Size 2 Gasket for Souriau Square Flanged Panel Connector
CL193001
Shell Size 3 Gasket for Souriau Square Flanged Panel Connector
CL194001
Shell Size 4 Gasket for Souriau Square Flanged Panel Connector
CP16SW9700
Dummy Pin Contact for Souriau Clipper Series 1.6mm Connector Cavity
CL141001
Shell Size 1 Protection Cover for Clipper Series Panel Connectors, with Fixing Rope, IP67
CL142001
Shell Size 2 Protection Cover for Clipper Series Panel Connectors, with Fixing Rope, IP67
CL143001
Shell Size 3 Protection Cover for Clipper Series Panel Connectors, with Fixing Rope, IP67
CL144001
Shell Size 4 Protection Cover for Clipper Series Panel Connectors, with Fixing Rope, IP67
CL191001
Shell Size 1 Gasket for Souriau Square Flanged Panel Connector
CL104000
Shell Size 4 Cable Connector Backshell Adaptor
CL131001
Shell Size 1 Angled Wall Mounting Adaptor for Clipper Series, IP67
CL132001
Shell Size 2 Angled Wall Mounting Adaptor for Clipper Series, IP67
CL133001
Shell Size 3 Angled Wall Mounting Adaptor for Clipper Series, IP67
CL134001
Shell Size 4 Angled Wall Mounting Adaptor for Clipper Series, IP67
85004144
Filler Plug for Souriau Clipper Series 1mm Connector Cavity
8500479CL
Filler Plug for Souriau Clipper Series 1.6mm Connector Cavity
CL101000
Shell Size 1 Cable Connector Backshell Adaptor
CL102000
Shell Size 2 Cable Connector Backshell Adaptor
CL103000
Shell Size 3 Cable Connector Backshell Adaptor
S20CFSP
Crimp Tool Head
SHANDLES
Crimp Tool Handle
S16CFSP
Crimp Tool Head
M22520/1-01
Crimp Tool Frame
M22520/1-02
Crimp Tool Head
