HUMMEL M40 Power Series

HUMMEL M40 Power series is a range of robust waterproof circular connectors for use in tough environments.

The M40 system is sealed to IP67 and IP69K in mated condition thus provides a ruggedized sealed connection at all times.

6 & 8 way variants offer a current carrying capacity of up to 55A and allow for cable OD’s of up to 28mm and wire gauges of 16.00mm².

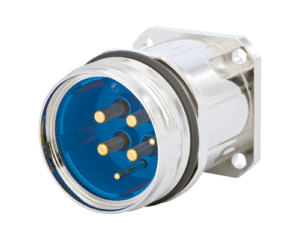

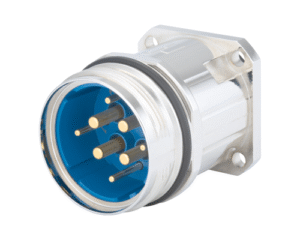

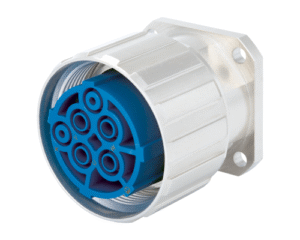

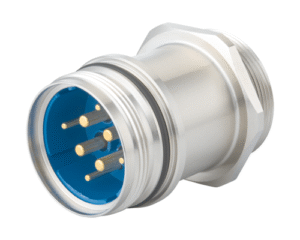

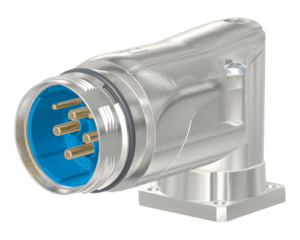

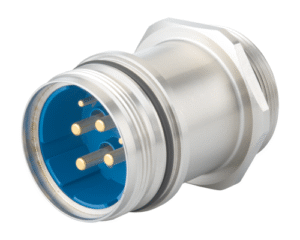

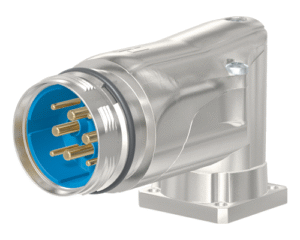

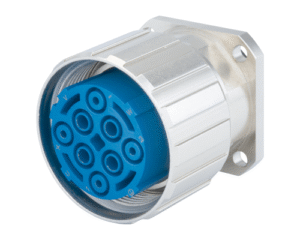

Cable shells are available with both male and female thread for an in-line connection or can be mated with the panel receptacle which is available in standard or angled square flange and jam-nut style.

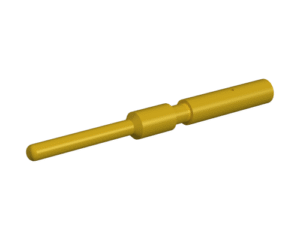

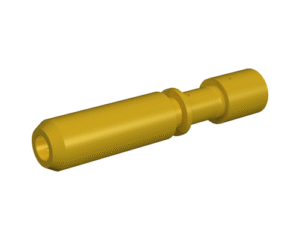

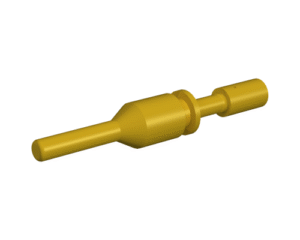

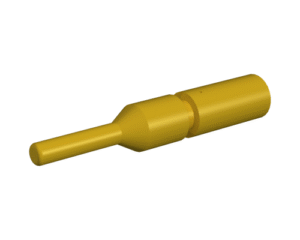

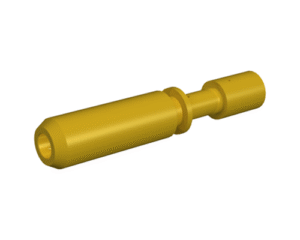

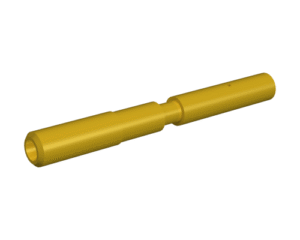

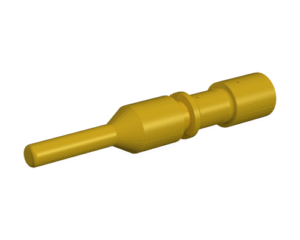

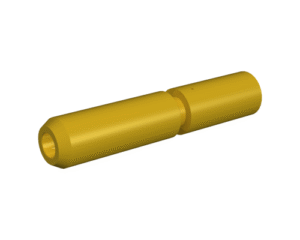

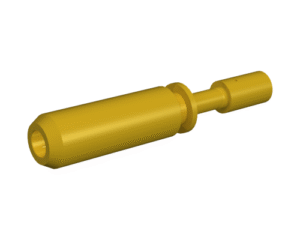

Connectors shells arrive with the relevant 6 or 8 way insert with crimp contacts chosen separately depending on the desired wire gauge.

For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.

• No. of Contacts: 6 & 8
• Locking Mechanism: Screw, Twist Lock (Twilock & Twilock-S)
• Contact Termination: Crimp
• Wire Gauge Max: 16.00mm²
• Cable Diameter Range: 13-28mm
• Connector Types: Cable to Panel, Cable to Cable
• Max. Voltage: 300-600V
• Max. Current: 28-55A
• Ingress Protection Max: IP67, IP69K
• Moulded Cable Option: On Request

Electrical Notes

See literature for derating curves

Safety Notes

Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury

Ingress Protection Notes

Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise

Additional accessories may also be required to maintain IP rating in some instances
