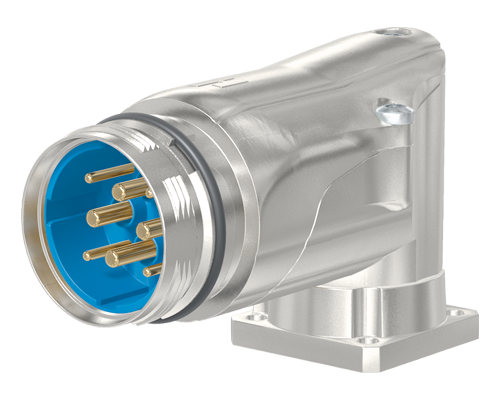

Image may be representative of a range of products, see literature to confirm.
Authorised Partner
of the industry’s leading manufacturers
Credit Accounts
to simplify the ordering process
Scheduled Orders
over a 12-month
period
Technical Expertise
in-house product
specialists
Personalised Support
designated Coordinators for your specific needs
Certification
ISO 9001 quality management system
Sales Description
Got a question about this product?Robust multi-pin circular connector system with industry standard M40x1.5 Screw or Twist Locking interface.
M40 Power connectors offer pin-counts of 6 and 8 with a current carrying capacity of up to 55A per contact.
The series caters for cable OD’s of up to 28mm, has a wire gauge max. of 16.00mm² and is capable of offering IP67 & IP69K ingress protection in mated state or with the use of a protection cover.
Technical Specification
- Approvals CSA, UL, VDE
- Backshell Included NA
- Body Orientation Angled
- Connector Type Panel Connector
- Contact Plating NA
- Contacts Included No
- Coupling Area Material Metal
- Current Rating 55A
- Voltage Rating 600V
- Electrical Notes Voltage and nominal current rating is continuous. Not suitable for connecting or disconnecting under load.
- Degree of Ingress Protection IP67, IP69K
- EMC Sheilding Capability Yes
- Gender of Insert Male
- Housing Material Metal
- Keyway/Coding Type Standard
- Locking System Screw
- Min. Mechanical Mating Cycles 500
- Max. Wire Gauge/Cross Sectional Area 16.00mm²
- Min. Cable Entry (mm) NA
- Max. Cable Entry (mm) NA
- Number of Ways 8
- Operating Temperature -40 to +125°C
- Positive Earth (PE) Yes
- Termination Method/Technology Crimp
