Sales Description
Got a question about this product?Robust multi-pin circular connector system with M27x1 screw locking mechanism.
M27 connectors offer pin-counts of 26 and 28 with a current carrying capacity of up to 8A per contact.
The series caters for cable OD’s of up to 17mm, has a wire gauge max. of 1.00mm² and is capable of offering IP67 & IP69K ingress protection in mated state or with the use of a protection cover.
Technical Specification
- Contact Bearer Material Thermoplastic Polyamid PA 6 (Nylon 6/6), PBT
- Contacts Included Yes
- Current Rating 8A
- Voltage Rating 150V
- Electrical Notes Allowable voltage is what can be applied to each contact continuously and simultaneously
- Gender of Contacts Accepted Female
- Max. Wire Gauge/Cross Sectional Area 0.56mm²

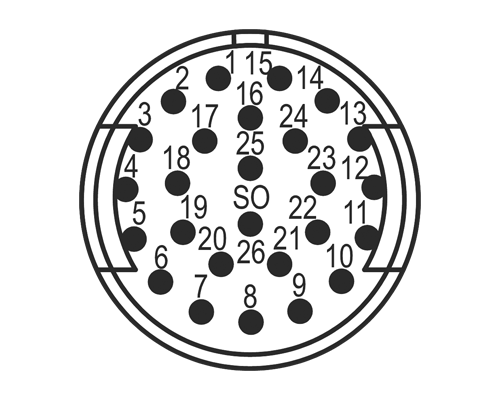

- Number of Ways 26
- Operating Temperature -40 to +125°C
- Positive Earth (PE) No
