HUMMEL M27 Signal Series

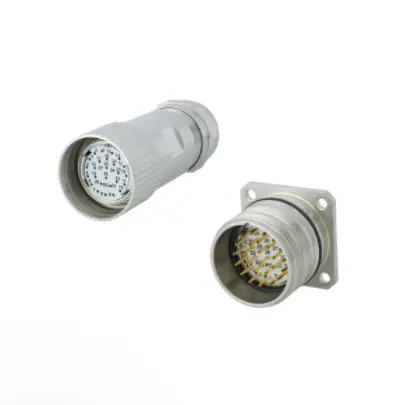

Hummel M27 series is a range of robust waterproof circular connectors for use in tough environments.

The M27 system is sealed to IP67 and IP69K in mated condition thus provides a ruggedized sealed connection at all times.

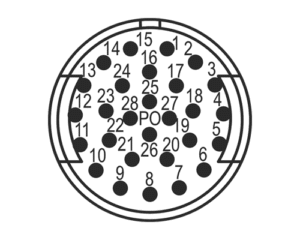

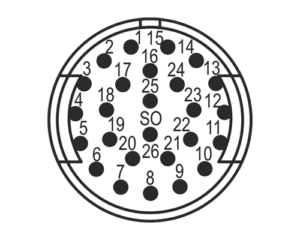

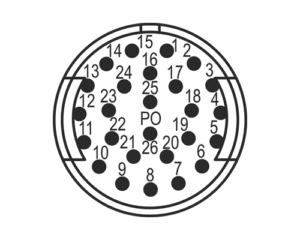

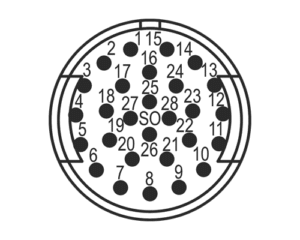

26 & 28 way variants offer a current carrying capacity of up to 8A.

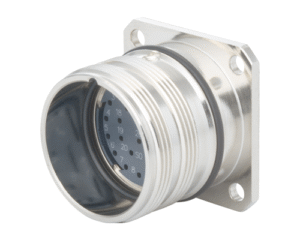

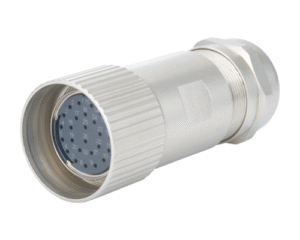

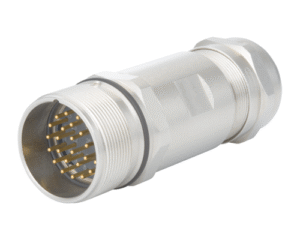

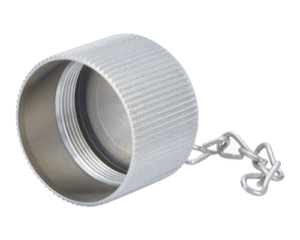

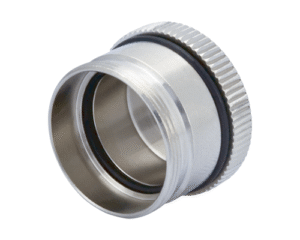

Cable shells are available with both male and female thread for an in-line connection or can be mated with the panel receptacle which is available with male thread only.

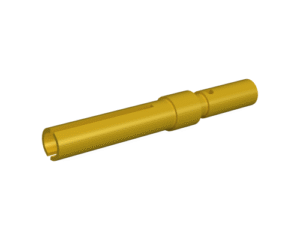

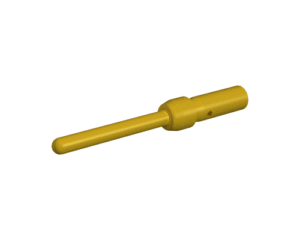

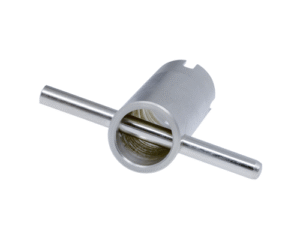

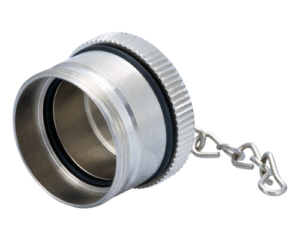

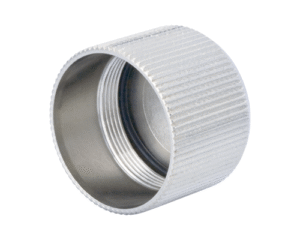

Shells, inserts and contacts have individual part numbers to reduce inventory levels if a number of pinouts are used and to allow the user to tailor their setup.

For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.

• No. of Contacts: 26 & 28
• Locking Mechanism: Screw
• Contact Termination: Crimp, Solder, Dip-Solder
• Wire Gauge Max: 1.00mm²
• Cable Diameter Range: 7-17mm
• Connector Types: Cable to Panel, Cable to Cable
• Max. Voltage: 150V
• Max. Current: 8A
• Ingress Protection Max: IP67, IP69K
• Moulded Cable Option: No

Electrical Notes

See literature for derating curves

Safety Notes

Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury

Ingress Protection Notes

Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise

Additional accessories may also be required to maintain IP rating in some instances
