Sales Description
Got a question about this product?Robust multi-pin circular connector system with industry standard M23x1 Screw or Twist Locking interface.
M23 Signal connectors offer pin-counts from 6 to 19 with a current carrying capacity of up to 20A per contact.
The series caters for cable OD’s of up to 17mm, has a wire gauge max. of 2.50mm² and is capable of offering IP67 & IP69K ingress protection in mated state or with the use of a protection cover.
Technical Specification
- Approvals UL, CSA
- Contact Bearer Material Thermoplastic Polyamid PA 6 (Nylon 6/6), PBT
- Contacts Included Yes
- Current Rating 8A
- Voltage Rating 160V
- Electrical Notes Current rating is continuous. Nominal voltage rating according to EN 60664-1, pollution degree 3
- Gender of Contacts Accepted Male
- Max. Wire Gauge/Cross Sectional Area 1.00mm²

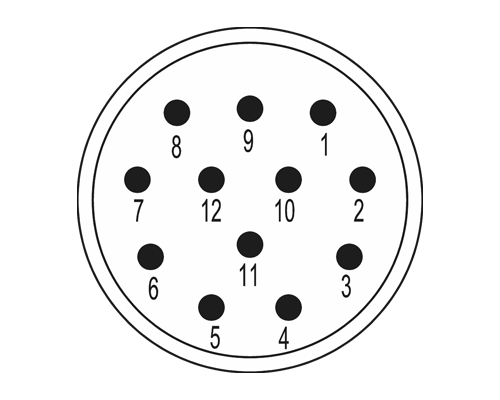

- Number of Ways 12
- Operating Temperature -40°C to 125°C
- Positive Earth (PE) No
