Sales Description
Got a question about this product?Compact multi-pin circular connector system with industry standard M16x0.75 Screw Locking interface.
M16 Signal & Power connectors offer pin-counts from 3 to 18 with a current carrying capacity of up to 20A per contact.
The series caters for cable OD’s of up to 11mm, has a wire gauge max. of 2.50mm² and is capable of offering IP67 & IP69K ingress protection in mated state or with the use of a protection cover.
Technical Specification
- Contact Bearer Material Thermoplastic Polyamid PA 6 (Nylon 6/6), PBT
- Contacts Included No
- Current Rating 5A, 16A
- Voltage Rating 160V, 600V
- Electrical Notes Values for this mixed layout are according to the largest contacts used. Please refer to the datasheet for more information.
- Gender of Contacts Accepted Female
- Max. Wire Gauge/Cross Sectional Area 1.50mm²

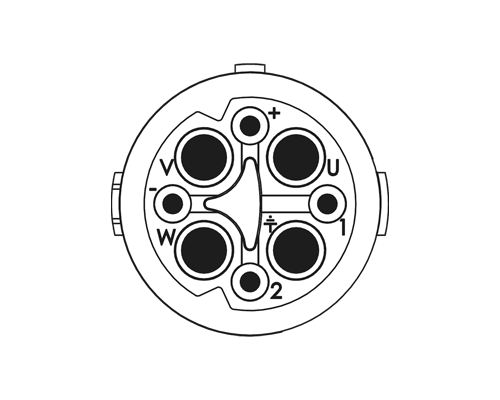

- Number of Ways 8
- Operating Temperature -40 to +125°C
- Positive Earth (PE) Yes
