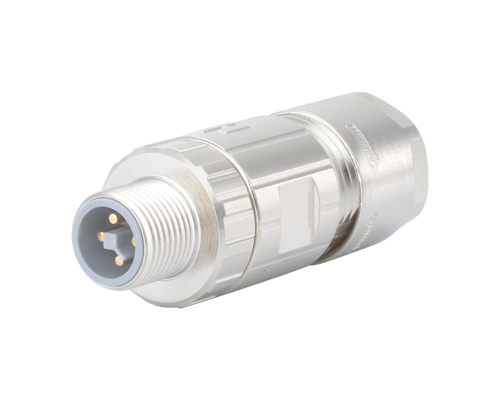

Image may be representative of a range of products, see literature to confirm.
Authorised Partner
of the industry’s leading manufacturers
Credit Accounts
to simplify the ordering process
Scheduled Orders
over a 12-month
period
Technical Expertise
in-house product
specialists
Personalised Support
designated Coordinators for your specific needs
Certification
ISO 9001 quality management system
Sales Description
Got a question about this product?Compact circular connector system with industry standard IEC 61076-2-111 M12x1 screw locking interface.
M12 Power connectors offer pin-counts of 4 and 5 with a current carrying capacity of up to 16A per contact.
The series caters for cable OD’s of up to 11mm, has a wire gauge max. of 2.50mm² and is capable of offering IP65, IP67 & IP69K ingress protection in mated state or with the use of a protection cover.
Technical Specification
- Approvals UL, VDE
- Body Orientation Straight
- Degree of Ingress Protection IP67, IP69K
- EMC Sheilding Capability Yes
- Locking System Screw
- Material Metal
- Min. Mechanical Mating Cycles 100
- Min. Cable Entry (mm) 5
- Max. Cable Entry (mm) 9
