Sales Description
Got a question about this product?Compact circular connector system with industry standard IEC 61076-2-111 M12x1 screw locking interface.
M12 Power connectors offer pin-counts of 4 and 5 with a current carrying capacity of up to 16A per contact.
The series caters for cable OD’s of up to 11mm, has a wire gauge max. of 2.50mm² and is capable of offering IP65, IP67 & IP69K ingress protection in mated state or with the use of a protection cover.
Technical Specification
- Approvals UL
- Contact Bearer Material PBT
- Contacts Included No
- Current Rating 12
- Voltage Rating 630
- Electrical Notes Voltage and nominal current rating is continuous. Not suitable for connecting or disconnecting under load.
- Gender of Contacts Accepted Female
- Max. Wire Gauge/Cross Sectional Area NA

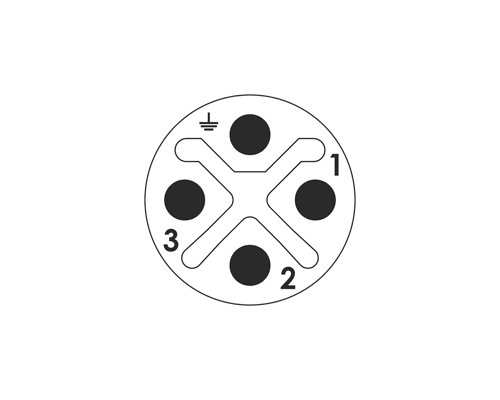

- Number of Ways 4
- Operating Temperature '-40°C to 125°C
- Positive Earth (PE) Yes
