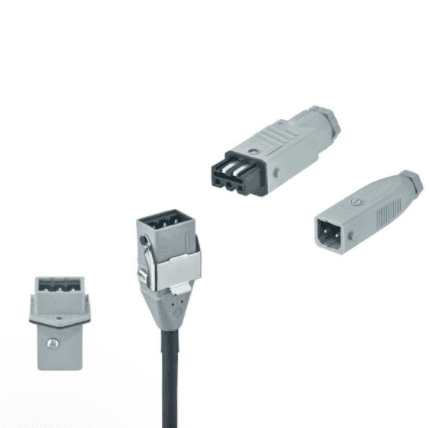

Hirschmann ST Series

In brief:

Tough and compact rectangular power connector with lever locking mechanism for current supply and signal transmission in industrial installations.

The Hirschmann ST series is a low cost field attachable connector system known for its resilient qualities and reliability.

Available in 3, 4, 5 and 6 way and with screw termination, crimp or with pre-moulded cable.

Hirschmann logo

High-quality products for the automation industry, delivered at great value

DownloadDownload Brochure

The Hirschmann ST Series, with its robust and compact power features, is eminently suitable for power supply and signal transmission in industrial installations and mechanical engineering.

The ST series has become the de-facto market standard for the motors that operate blinds and awnings and is also frequently used in power supplies for moulding machines, medical applications and industrial lighting systems.

The series is available in 3, 4, 5 and 6 way with screw termination cavities for a swift installation. A crimp variant is also available for areas that require even further resistance to the effects of vibration.

The lever which locks a mating pair together guarantees a secure and robust connection and one that can be disengaged simply and efficiently.

The lever can be mounted on either the male or female and provides versatility for the user to customise their installation.

Cable connectors can be straight or angled and panel receptacles are available in both bulkhead and surface mount design.

Key features include:

  • Available in 3 to 6 pin variants (including PE)
  • For voltages up to 400V and currents up to 16A
  • Dust and spray water protection for high resistance
  • Approved by VDE & UL for worldwide application
  • Protection class up to IP54

For a more detailed description of this connector series please see the manufacturer's brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001.

We have many products in this series, find what you need using the filters below

42 products match your criteria:

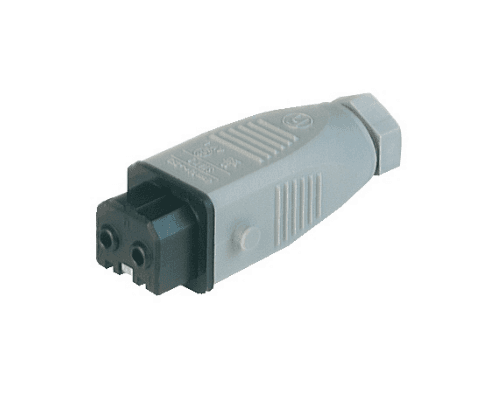

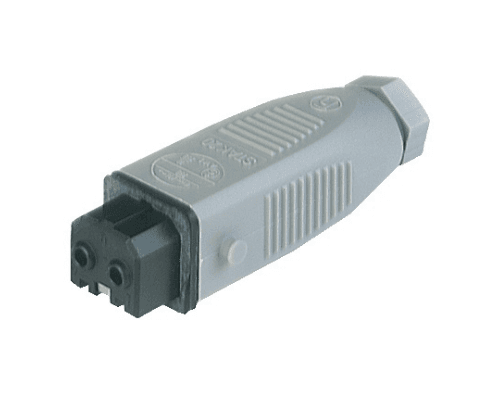

930621106 (STAK 2 Grey) thumbnail

Part no. : 930621106 (STAK 2 Grey)

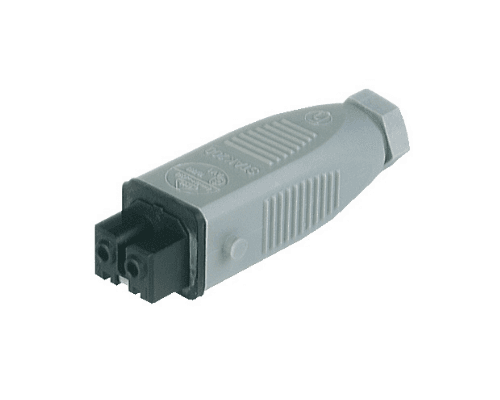

3 Way (2+PE) Female Cable Connector with Screw Termination Contacts, 4-6.5mm Cable Entry, IP54

931264106 (STAK 20 Grey) thumbnail

Part no. : 931264106 (STAK 20 Grey)

3 Way (2+PE) Female Cable Connector with Screw Termination Contacts, 4-6.5mm Cable Entry, IP54

932037106 (STAK 200 Grey) thumbnail

Part no. : 932037106 (STAK 200 Grey)

3 Way (2+PE) Female Cable Connector with Screw Termination Contacts, 4-6.5mm Cable Entry, Alternative Coding, IP54

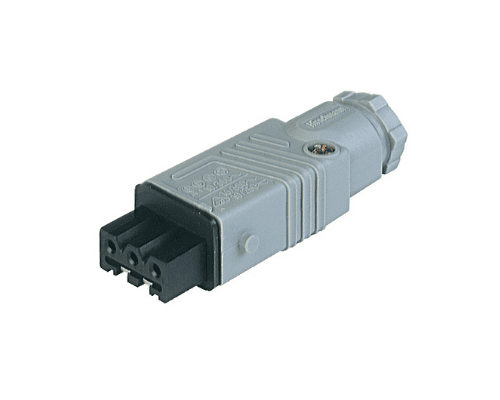

932140106 (STAK 3 N Grey) thumbnail

Part no. : 932140106 (STAK 3 N Grey)

4 Way (3+PE) Female Cable Connector with Screw Termination Contacts, 6-10mm Cable Entry, IP54

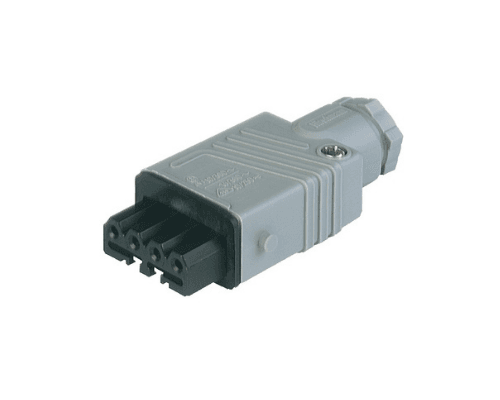

932533106 (STAK 4 N Grey) thumbnail

Part no. : 932533106 (STAK 4 N Grey)

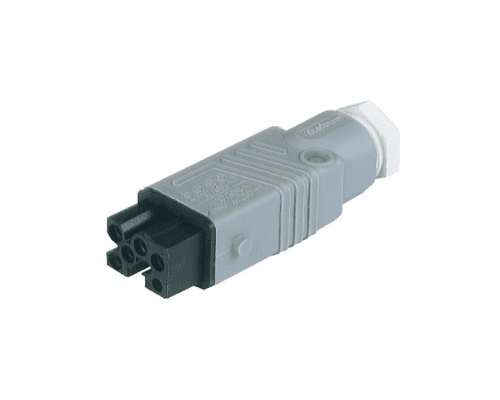

5 Way (4+PE) Female Cable Connector with Screw Termination Contacts, 6-10mm Cable Entry, IP54

931691106 (STAK 5 Grey) thumbnail

Part no. : 931691106 (STAK 5 Grey)

6 Way (5+PE) Female Cable Connector with Crimp Termination Contacts, 8-10mm Cable Entry, IP54

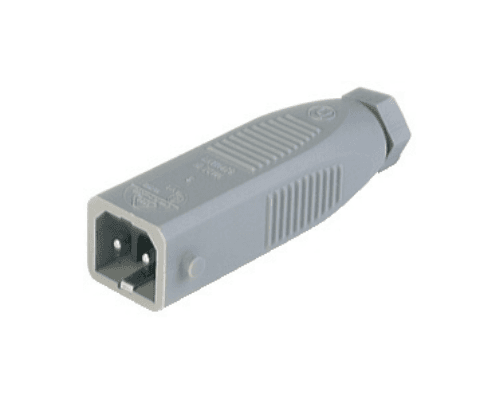

930620106 (STAS 2 Grey) thumbnail

Part no. : 930620106 (STAS 2 Grey)

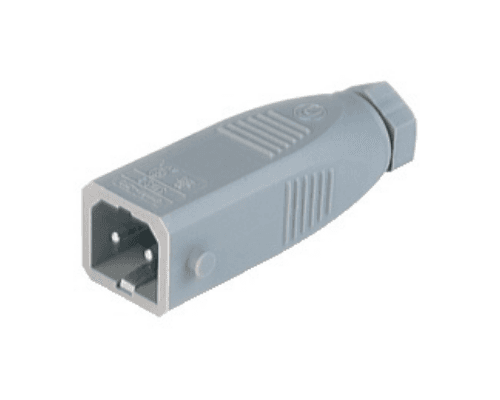

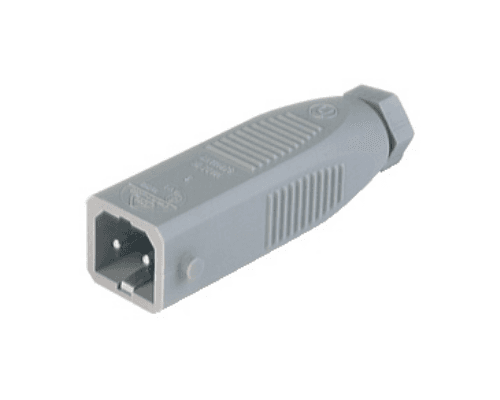

3 Way (2+PE) Male Cable Connector with Screw Termination Contacts, 4-6.5mm Cable Entry, IP54

931265106 (STAS 20 Grey) thumbnail

Part no. : 931265106 (STAS 20 Grey)

3 Way (2+PE) Male Cable Connector with Screw Termination Contacts, 4-6.5mm Cable Entry, IP54

932038106 (STAS 200 Grey) thumbnail

Part no. : 932038106 (STAS 200 Grey)

3 Way (2+PE) Male Cable Connector with Screw Termination Contacts, 4-6.5mm Cable Entry, Alternative Coding, IP54

932143106 (STAS 3 N Grey) thumbnail

Part no. : 932143106 (STAS 3 N Grey)

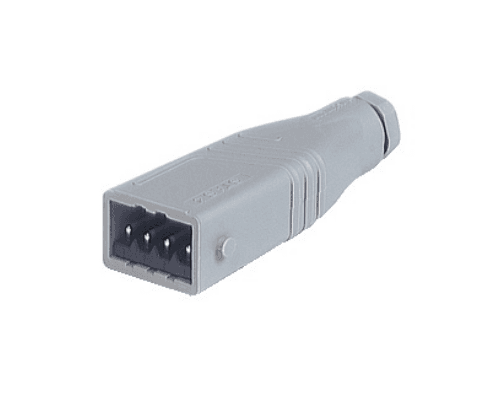

4 Way (3+PE) Male Cable Connector with Screw Termination Contacts, 6-10mm Cable Entry, IP54

934442106 (STAS 4 N Grey) thumbnail

Part no. : 934442106 (STAS 4 N Grey)

5 Way (4+PE) Male Cable Connector with Screw Termination Contacts, 6-10mm Cable Entry, IP54

931692106 (STAS 5 Grey) thumbnail

Part no. : 931692106 (STAS 5 Grey)

6 Way (5+PE) Male Cable Connector with Crimp Termination Contacts, 8-10mm Cable Entry, IP54

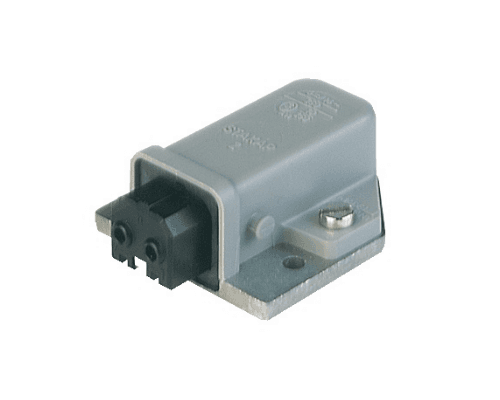

930647106 (STAKEI 2 Grey) thumbnail

Part no. : 930647106 (STAKEI 2 Grey)

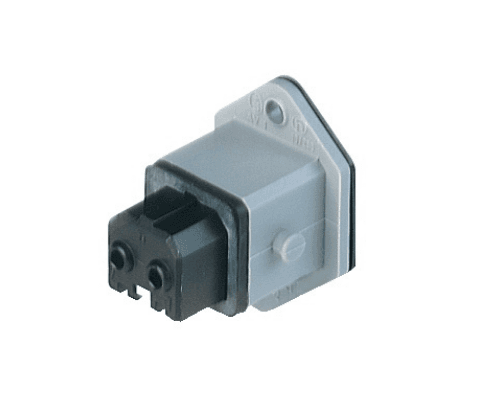

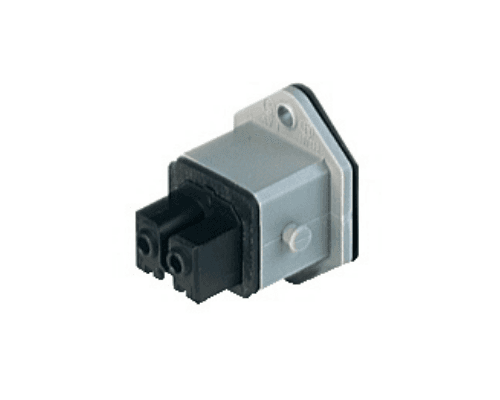

3 Way (2+PE) Female Flanged Panel Connector with Screw Termination Contacts, IP54

932047106 (STAKEI 200 Grey) thumbnail

Part no. : 932047106 (STAKEI 200 Grey)

3 Way (2+PE) Female Flanged Panel Connector with Screw Termination Contacts, Alternative Coding, IP54

932142106 (STAKEI 3 N Grey) thumbnail

Part no. : 932142106 (STAKEI 3 N Grey)

4 Way (3+PE) Female Flanged Panel Connector with Screw Termination Contacts, IP54

931694106 (STAKEI 5 Grey) thumbnail

Part no. : 931694106 (STAKEI 5 Grey)

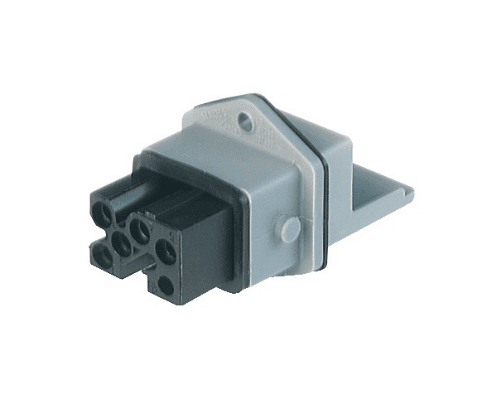

6 Way (5+PE) Female Flanged Panel Connector with Crimp Termination Contacts, IP54

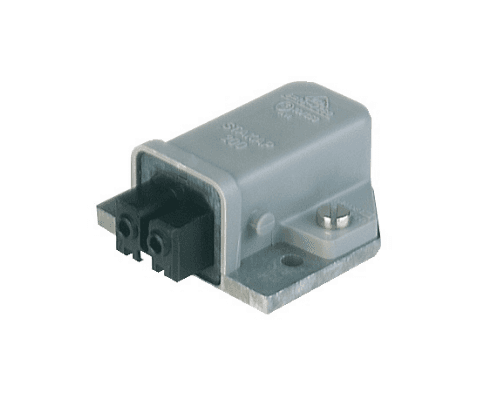

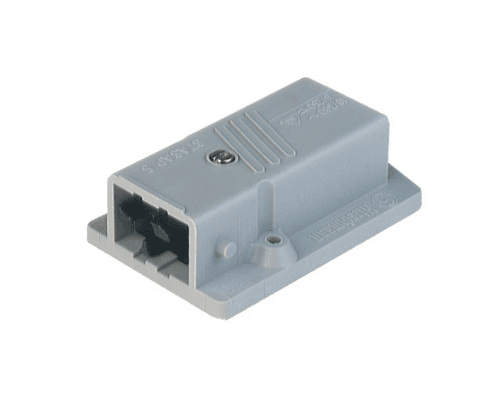

930329106 (STAKAP 2 Grey) thumbnail

Part no. : 930329106 (STAKAP 2 Grey)

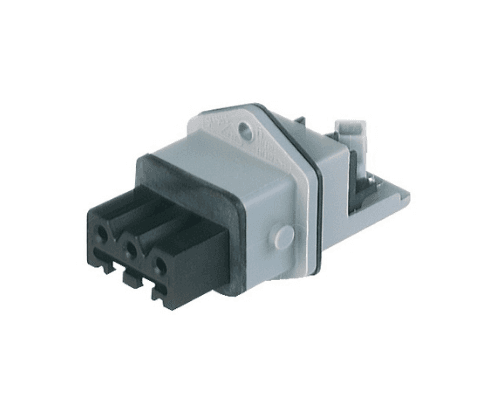

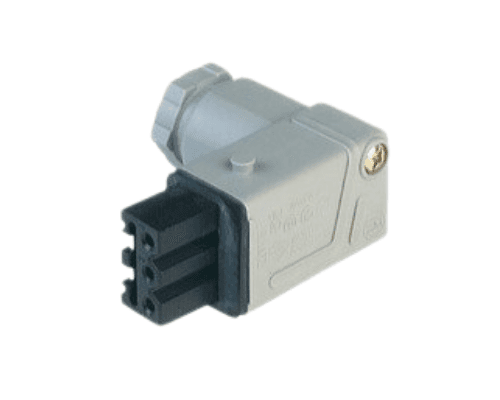

3 Way (2+PE) Female Flanged Angled Panel Connector with Screw Termination Contacts, IP54

932045106 (STAKAP 200 Grey) thumbnail

Part no. : 932045106 (STAKAP 200 Grey)

3 Way (2+PE) Female Flanged Angled Panel Connector with Screw Termination Contacts, Alternative Coding, IP54

932513106 (STAKAP 3 N Grey) thumbnail

Part no. : 932513106 (STAKAP 3 N Grey)

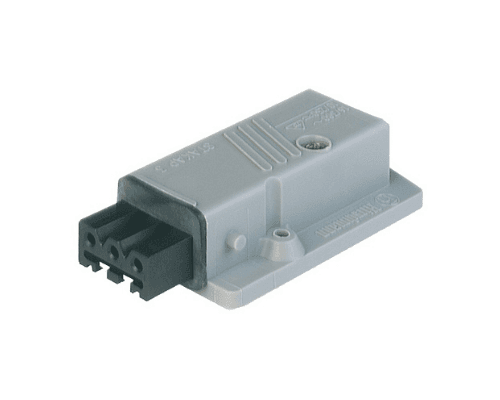

4 Way (3+PE) Female Flanged Angled Panel Connector with Screw Termination Contacts, IP54

932511106 (STAKAP 5 Grey) thumbnail

Part no. : 932511106 (STAKAP 5 Grey)

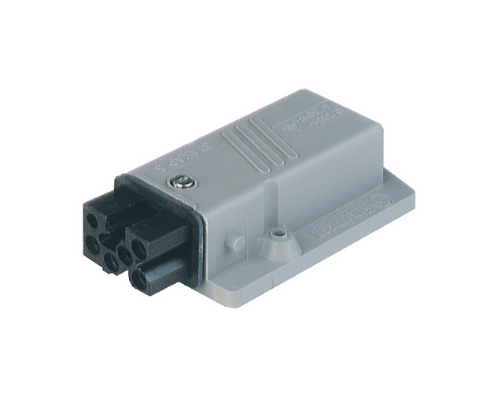

6 Way (5+PE) Female Flanged Angled Panel Connector with Crimp Termination Contacts, IP54

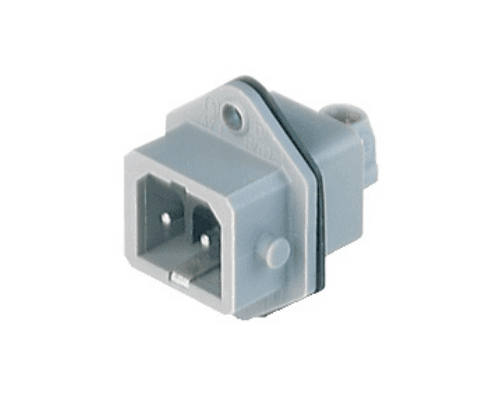

930622106 (STASEI 2 Grey) thumbnail

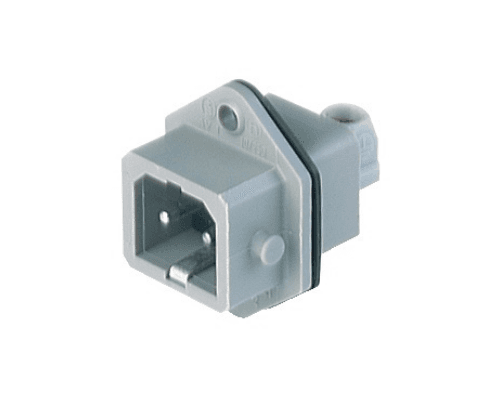

Part no. : 930622106 (STASEI 2 Grey)

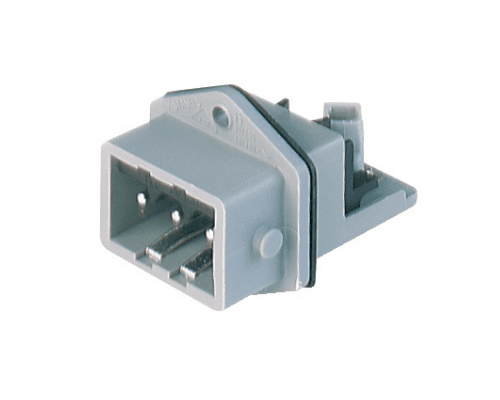

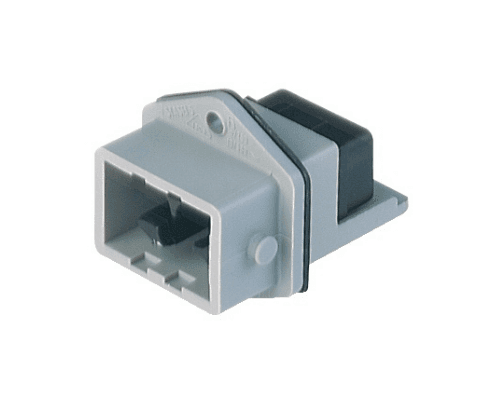

3 Way (2+PE) Male Flanged Panel Connector with Screw Termination Contacts, IP54

932048106 (STASEI 200 Grey) thumbnail

Part no. : 932048106 (STASEI 200 Grey)

3 Way (2+PE) Male Flanged Panel Connector with Screw Termination Contacts, Alternative Coding, IP54

932145106 (STASEI 3 N Grey) thumbnail

Part no. : 932145106 (STASEI 3 N Grey)

4 Way (3+PE) Male Flanged Panel Connector with Screw Termination Contacts, IP54

931697106 (STASEI 5 Grey) thumbnail

Part no. : 931697106 (STASEI 5 Grey)

6 Way (5+PE) Male Flanged Panel Connector with Crimp Termination Contacts, IP54

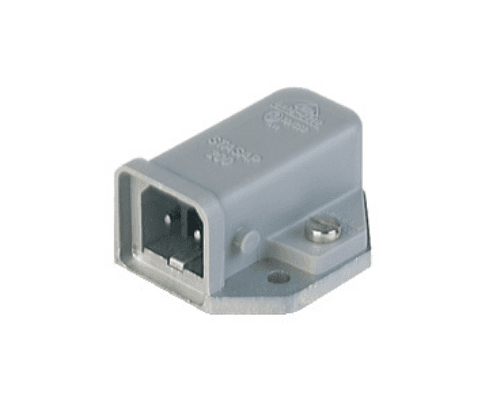

930822106 (STASAP 2 B Grey) thumbnail

Part no. : 930822106 (STASAP 2 B Grey)

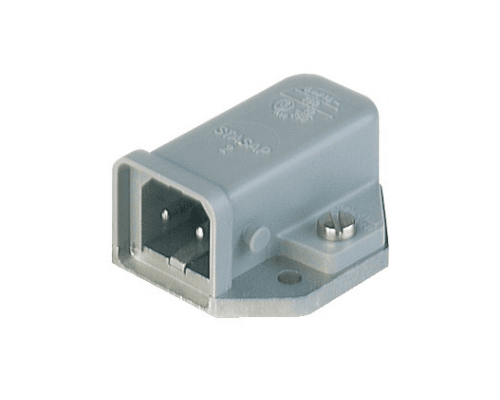

3 Way (2+PE) Male Flanged Angled Panel Connector with Screw Termination Contacts, IP54

932046106 (STASAP 200 Grey) thumbnail

Part no. : 932046106 (STASAP 200 Grey)

3 Way (2+PE) Male Flanged Angled Panel Connector with Screw Termination Contacts, Alternative Coding, IP54

932514106 (STASAP 3 N Grey) thumbnail

Part no. : 932514106 (STASAP 3 N Grey)

4 Way (3+PE) Male Flanged Angled Panel Connector with Screw Termination Contacts, IP54

932512106 (STASAP 5 Grey) thumbnail

Part no. : 932512106 (STASAP 5 Grey)

6 Way (5+PE) Male Flanged Angled Panel Connector with Crimp Termination Contacts, IP54

732044000 (STASI 2) thumbnail

Part no. : 732044000 (STASI 2)

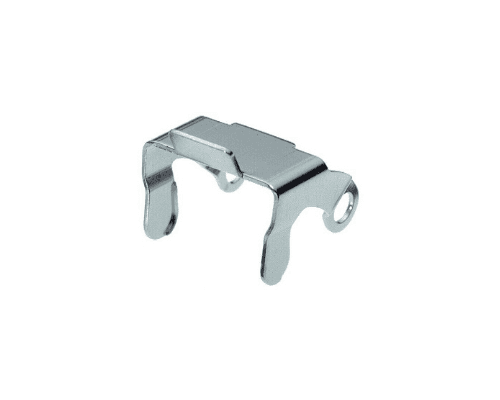

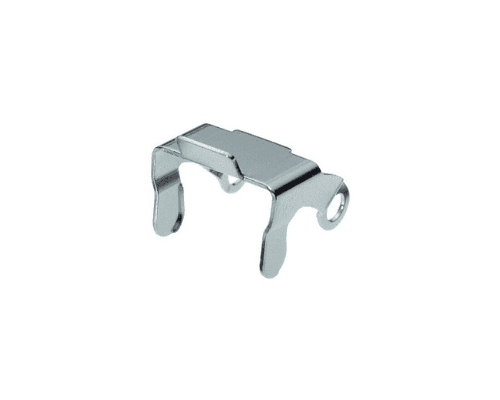

Safety Bracket for Hirschmann ST Series 2+PE Connectors

733045001 (STASI 3) thumbnail

Part no. : 733045001 (STASI 3)

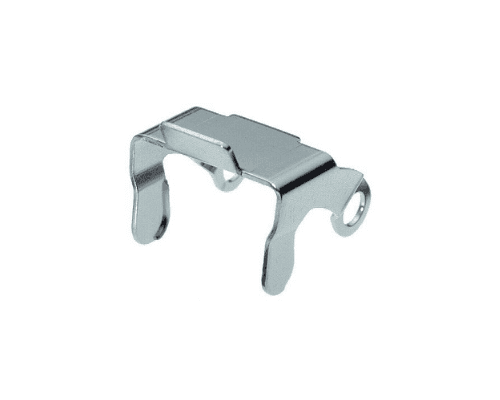

Safety Bracket for Hirschmann ST Series 3+PE & 5+PE Connectors

733449001 (STASI 4) thumbnail

Part no. : 733449001 (STASI 4)

Safety Bracket for Hirschmann ST Series 4+PE Connectors

731724221 (RBC 162 Ag) thumbnail

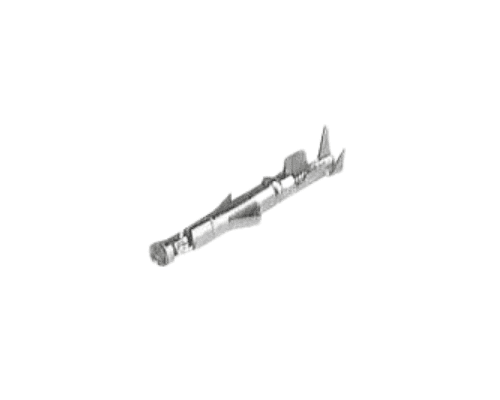

Part no. : 731724221 (RBC 162 Ag)

Female 1.6mm Crimp Contact, Stamped & Formed, Silver Plating, 0.50-1.50mm²

731725021 (RSC 162 Ag) thumbnail

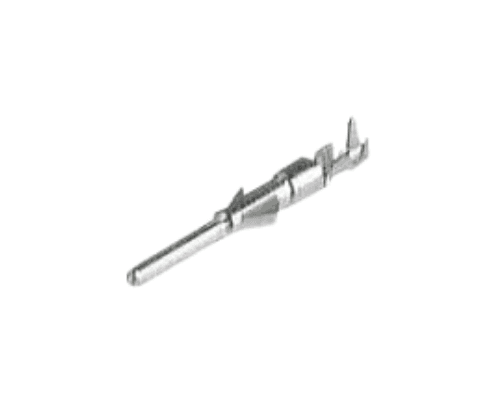

Part no. : 731725021 (RSC 162 Ag)

Male 1.6mm Crimp Contact, Stamped & Formed, Silver Plating, 0.50-1.50mm²

731726201 (RBCB 162 Ag) thumbnail

Part no. : 731726201 (RBCB 162 Ag)

Reeled Female 1.6mm Crimp Contacts, Stamped & Formed, Silver Plating, 0.50-1.50mm²

731726202 (RBCB 162 Ag) thumbnail

Part no. : 731726202 (RBCB 162 Ag)

Reeled Female 1.6mm Crimp Contacts, Stamped & Formed, Silver Plating, 0.50-1.50mm²

731727001 (RSCB 162 Ag) thumbnail

Part no. : 731727001 (RSCB 162 Ag)

Reeled Male 1.6mm Crimp Contact, Stamped & Formed, Silver Plating, 0.50-1.50mm²

733383021 (RBC 162/1 Ag) thumbnail

Part no. : 733383021 (RBC 162/1 Ag)

Female 1.6mm Crimp Contact, Stamped & Formed, Silver Plating, 0.14-0.50mm²

733384021 (RSC 162/1 Ag) thumbnail

Part no. : 733384021 (RSC 162/1 Ag)

Male 1.6mm Crimp Contact, Stamped & Formed, Silver Plating, 0.14-0.50mm²

733385001 (RBCB 162/1 Ag) thumbnail

Part no. : 733385001 (RBCB 162/1 Ag)

Reeled Female 1.6mm Crimp Contacts, Stamped & Formed, Silver Plating, 0.14-0.50mm²

931812001 (XWA 164) thumbnail

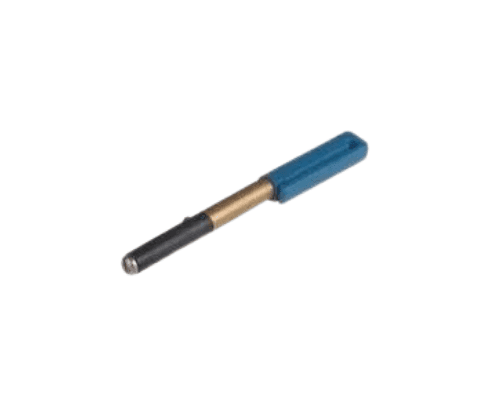

Part no. : 931812001 (XWA 164)

Extraction Tool for NR and ST Series 1.6mm Crimp Contacts

932507005 (XZC 0704) thumbnail

Part no. : 932507005 (XZC 0704)

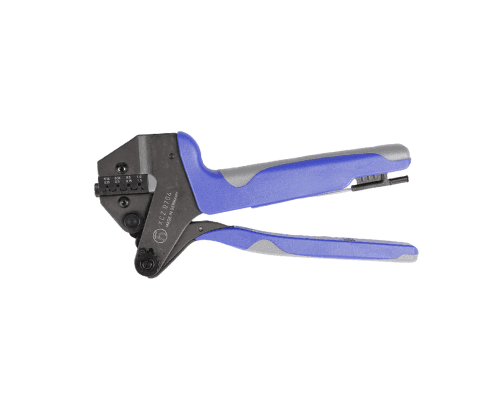

Crimp Tool for NR and ST Series 1.6mm Crimp Contacts

932413106 thumbnail

Part no. : 932413106

4 Way Female Cable Connector with Screw Termination Contacts, 6-10mm Angled Cable Entry, IP54 (STAKWI 3 Grey)
