Hirschmann CA Series

In brief:

Robust universal circular connector with IP67 environmental protection.

The Hirschmann CA series is a genuine all-rounder and is used in a wide variety of applications including areas of hydraulics and pneumatics, machine building and automation control technology.

Available in a 4 pole (3+PE) screw termination and 7 pole (6+PE) solder cup options, the Hirschmann CA is a hugely popular series for users looking for a simple, reliable and cost effective solution that can be used in harsh environments.

Hirschmann logo

High-quality products for the automation industry, delivered at great value

DownloadDownload Brochure

The Hirschmann CA series is a range of circular cable and panel connectors in 4 and 7 pin variants which can be used in tough environments.

The CA series offers users a low cost but robust system that can withstand the elements present in an industrial environment.

The connectors when mated seal to IP67 and therefore have a high degree of resistance to external influences such as water and industrial fluids.

Panel receptacles are available in both male and female gender with optional protection cap to remain sealed in unmated state.

Cable connectors are available in male and female gender and in straight or angled orientation and can be coupled with either a panel receptacle or another cable connector if the opposite gender to provide an in-line connection.

Key features include:

  • Available in 4 & 7 pin variants
  • Provides reliable transmission properties even under high stress
  • High degree of resistance to external influences
  • Easy installation due to few components
  • Protection class up to IP67

For a more detailed description of this connector series please see the manufacturer's brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001.

We have many products in this series, find what you need using the filters below

14 products match your criteria:

934125100 thumbnail

Part no. : 934125100

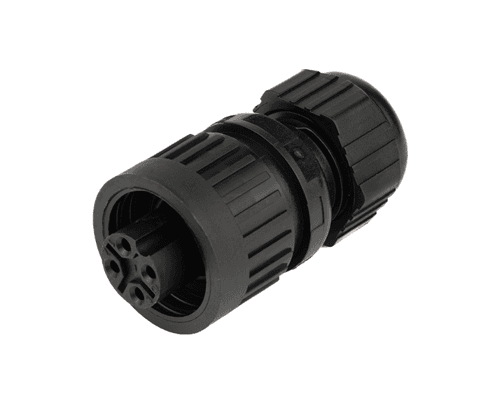

4 Way (3+PE) Female Cable Connector with Screw Termination Contacts, 6-12mm Cable Entry, IP65 & IP67 (CA 3 LD)

934129100 thumbnail

Part no. : 934129100

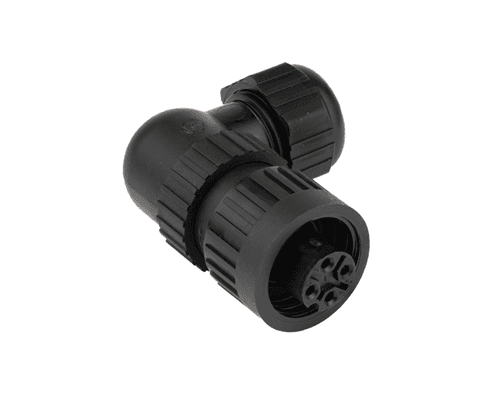

4 Way (3+PE) Female Angled Cable Connector with Screw Termination Contacts, 6-12mm Cable Entry, IP65 & IP67 (CA 3 W LD)

932321100 thumbnail

Part no. : 932321100

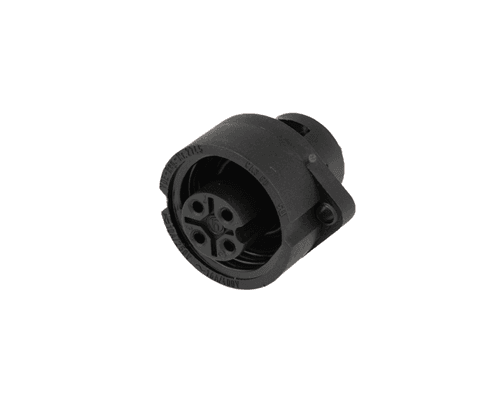

4 Way (3+PE) Female Flanged Panel Connector with Screw Termination Contacts, IP65 & IP67 (CA 3 GD)

934124100 thumbnail

Part no. : 934124100

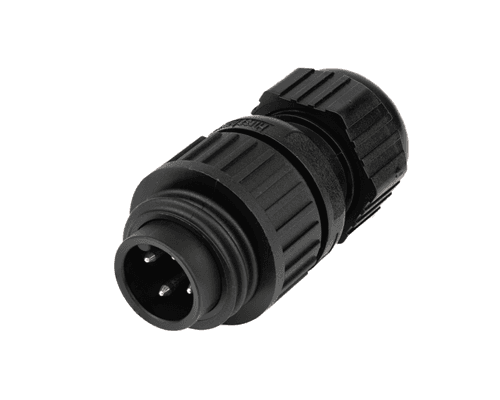

4 Way (3+PE) Male Cable Connector with Screw Termination Contacts, 6-12mm Cable Entry, IP65 & IP67 (CA 3 LS)

934128100 thumbnail

Part no. : 934128100

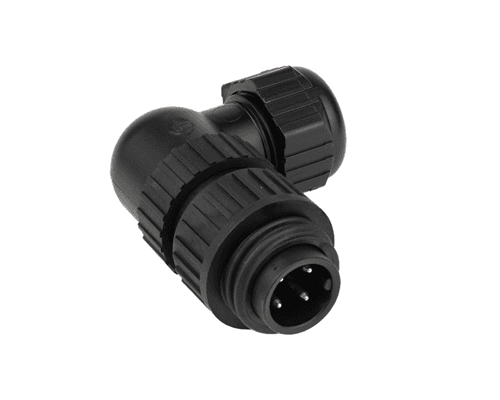

4 Way (3+PE) Male Angled Cable Connector with Screw Termination Contacts, 6-12mm Cable Entry, IP65 & IP67 (CA 3 W LS)

932322100 thumbnail

Part no. : 932322100

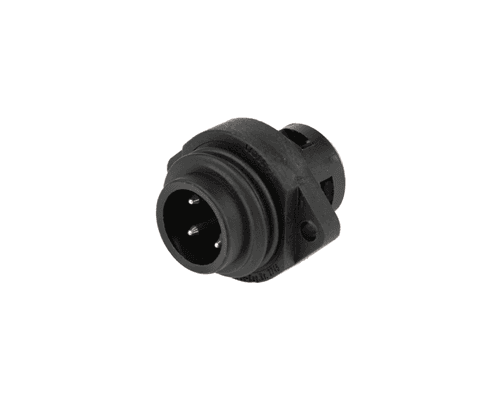

4 Way (3+PE) Male Flanged Panel Connector with Screw Termination Contacts, IP65 & IP67 (CA 3 GS)

934127100 thumbnail

Part no. : 934127100

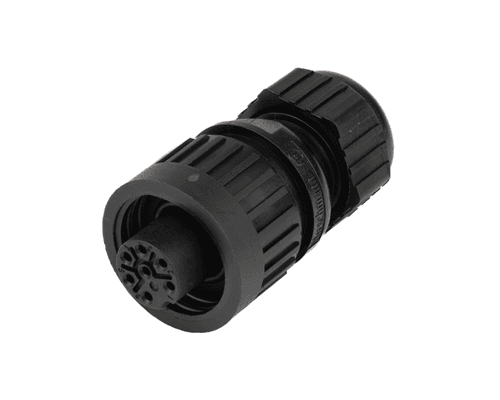

7 Way (6+PE) Female Cable Connector with Solder Contacts, 6-12mm Cable Entry, IP65 & IP67 (CA 6 LD)

934131100 thumbnail

Part no. : 934131100

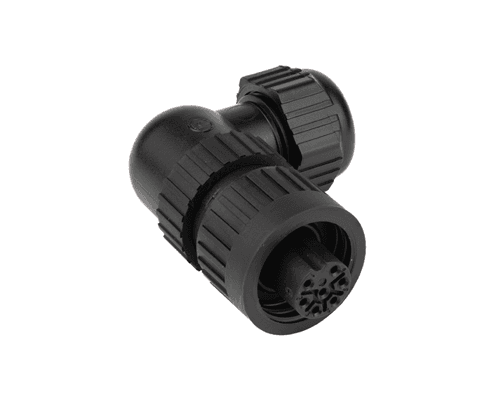

7 Way (6+PE) Female Angled Cable Connector with Solder Contacts, 6-12mm Cable Entry, IP65 & IP67 (CA 6 W LD)

932325100 thumbnail

Part no. : 932325100

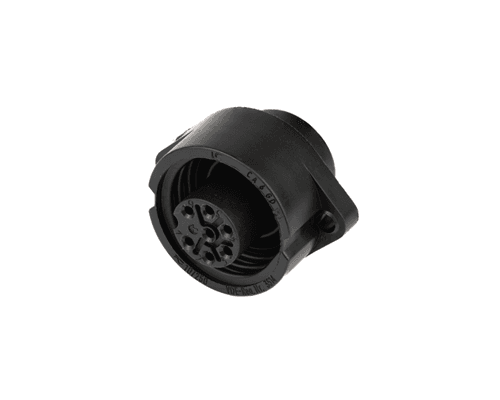

7 Way (6+PE) Female Flanged Panel Connector with Solder Contacts, IP65 & IP67 (CA 6 GD)

934126100 thumbnail

Part no. : 934126100

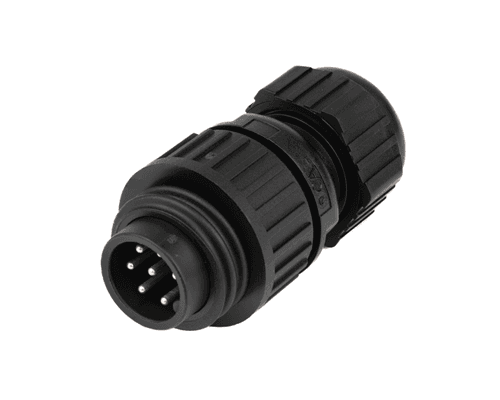

7 Way (6+PE) Male Cable Connector with Solder Contacts, 6-12mm Cable Entry, IP65 & IP67 (CA 6 LS)

934130100 thumbnail

Part no. : 934130100

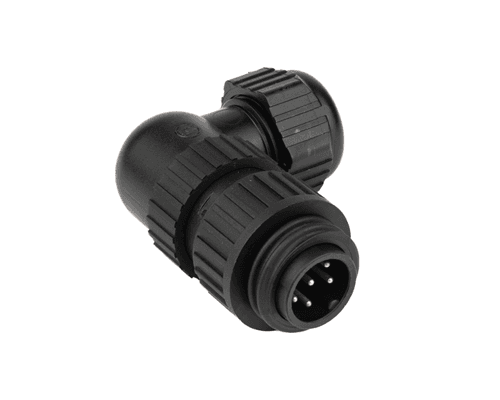

7 Way (6+PE) Male Angled Cable Connector with Solder Contacts, 6-12mm Cable Entry, IP65 & IP67 (CA 6 W LS)

932326100 thumbnail

Part no. : 932326100

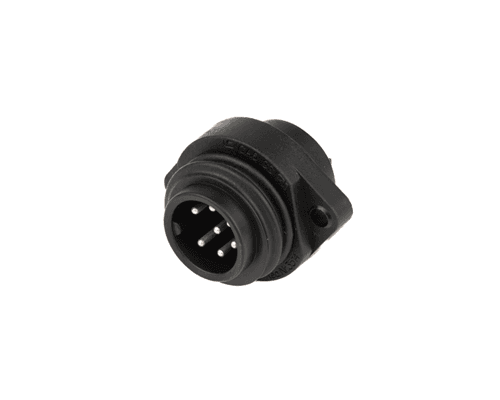

7 Way (6+PE) Male Flanged Panel Connector with Solder Contacts, IP65 & IP67 (CA 6 GS)

831530400 (CA 00 SD 1) thumbnail

Part no. : 831530400 (CA 00 SD 1)

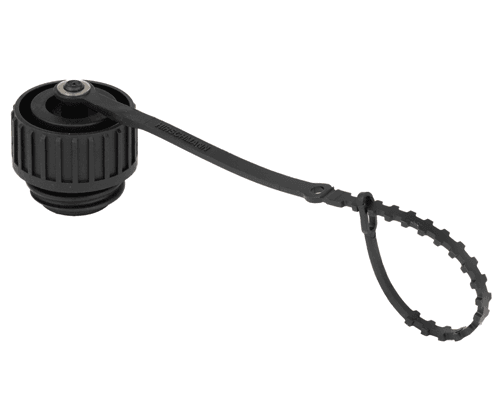

Protection Cover for CA Series Male Connectors, with Fixing Rope, IP65 & IP67 (CA 00 SD 1)

831532400 (CA 00 SD 3) thumbnail

Part no. : 831532400 (CA 00 SD 3)

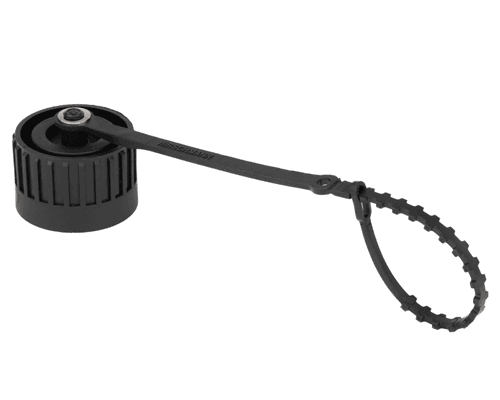

Protection Cover for CA Series Female Connectors, with Fixing Rope, IP65 & IP67 (CA 00 SD 3)
