Hirschmann CA Series

Belden’s Hirschmann CA series is a range of circular cable and panel connectors in 4 and 7 way variants which can be used in demanding environments.

The CA series offers users a low cost but robust system that can withstand the elements present in an industrial environment.

When mated, the connectors seal to IP65 & IP67 and therefore have a high degree of resistance to external influences such as water and industrial fluids.

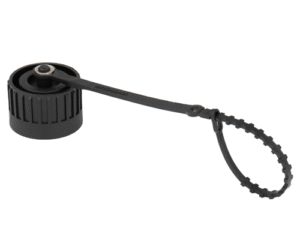

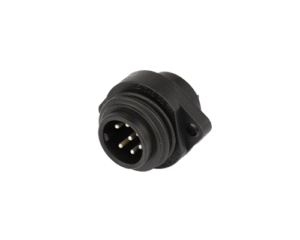

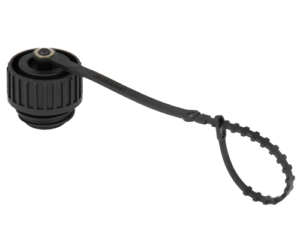

Panel receptacles are available in both male and female gender with optional protection cap to remain sealed in unmated state.

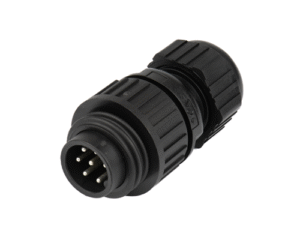

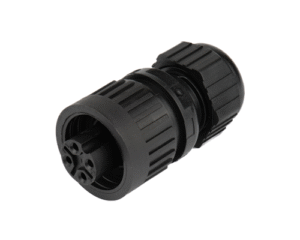

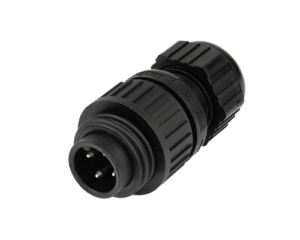

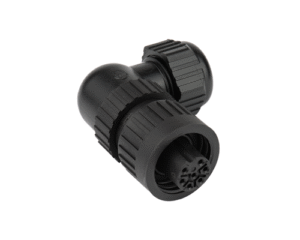

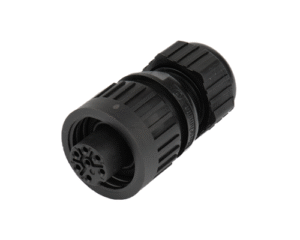

Cable connectors are available in male and female gender and in straight or angled orientation and can be coupled with either a panel receptacle or another cable connector if the opposite gender to provide an in-line connection.

Key features include:

• Available in 4 & 7 way versions
• Provides reliable transmission properties even under high stress
• High degree of resistance to external influences
• Easy installation due to few components
• Protection class up to IP67

For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.

• No. of Contacts: 4 & 7
• Locking Mechanism: Screw
• Contact Termination: Screw, Solder
• Wire Gauge Max: 2.50mm²
• Cable Diameter Range: 6-12mm
• Connector Types: Cable to Panel, Cable to Cable
• Max. Voltage: 250-400V
• Max. Current: 10-16A
• Ingress Protection Max: IP65, IP67
• Moulded Cable Option: No

Electrical Notes

See literature for derating curves

Safety Notes

Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury

Ingress Protection Notes

Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise

Additional accessories may also be required to maintain IP rating in some instances
