The waterproof robust circular M23 Power connector series from HARTING is ideal for use in tough environments.
Sealed to IP67 and IP69K in mated condition, the M23 system provides a ruggedised sealed connection at all times, while pin counts are available in a range from 6 to 19 and the current carrying capacity stands at 28A.
A number of cable clamping ranges are available, while cable connectors come in both straight and angled orientation. Both rear and front mount options are available for the panel connectors, both with or without built-in rear cable strain relief.
Inventory levels can be effectively reduced thanks to inserts, contacts and shells containing their own individual part numbers, which can also enable users to adjust the setup to meet their specific requirements.
For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.
- No. of Contacts: 6-19
- Locking Mechanism: Screw, Twist Lock (ComLock)
- Termination: Crimp, Solder, Dip-Solder
- Wire Gauge Max: 4.00mm²
- Cable Diameter Range: 7-17mm
- Max. Voltage: 160-600V
- Max. Current: 8-28A
- Ingress Protection: IP67, IP69K
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
The waterproof robust circular M23 Power connector series from HARTING is ideal for use in tough environments.
Sealed to IP67 and IP69K in mated condition, the M23 system provides a ruggedised sealed connection at all times, while pin counts are available in a range from 6 to 19 and the current carrying capacity stands at 28A.
A number of cable clamping ranges are available, while cable connectors come in both straight and angled orientation. Both rear and front mount options are available for the panel connectors, both with or without built-in rear cable strain relief.
Inventory levels can be effectively reduced thanks to inserts, contacts and shells containing their own individual part numbers, which can also enable users to adjust the setup to meet their specific requirements.
For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.
- No. of Contacts: 6-19
- Locking Mechanism: Screw, Twist Lock (ComLock)
- Termination: Crimp, Solder, Dip-Solder
- Wire Gauge Max: 4.00mm²
- Cable Diameter Range: 7-17mm
- Max. Voltage: 160-600V
- Max. Current: 8-28A
- Ingress Protection: IP67, IP69K
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances

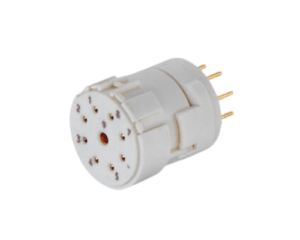

0915 109 2703
9 Way M23 (Signal) Female Insert with Dip-Solder Contacts
0915 112 3001
12 Way M23 (Signal) Male Insert for Crimp Contacts

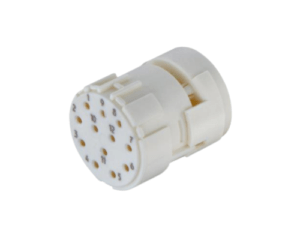

0915 112 3101
12 Way M23 (Signal) Female Insert for Crimp Contacts

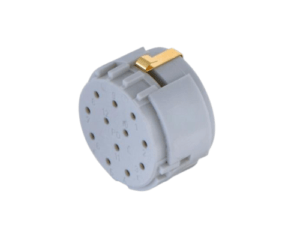

0915 112 3021
12 Way M23 (Signal) Male Insert for Crimp Contacts, PE on Position 9

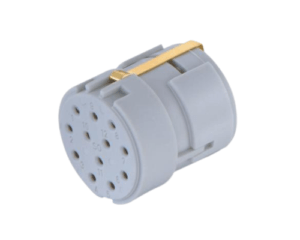

0915 112 3121
12 Way M23 (Signal) Female Insert for Crimp Contacts, PE on Position 9

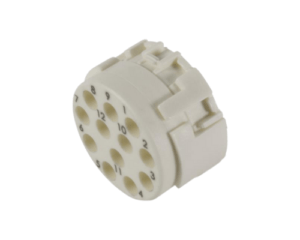

0915 112 3011
12 Way M23 (Signal) Male Insert for Pin Contacts, Counter-clockwise Pinout

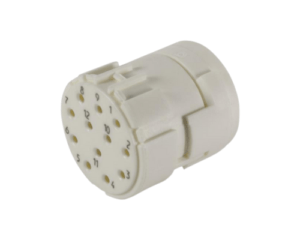

0915 112 3111
12 Way M23 (Signal) Female Insert for Socket Contacts, Counter-clockwise Pinout

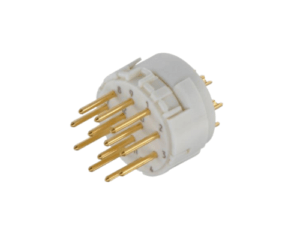

0915 112 2602
12 Way M23 (Signal) Male Insert with Solder Contacts

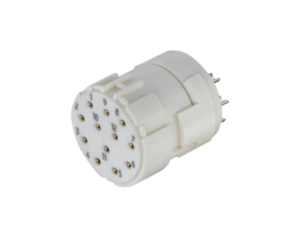

0915 112 2702
12 Way M23 (Signal) Female Insert with Solder Contacts

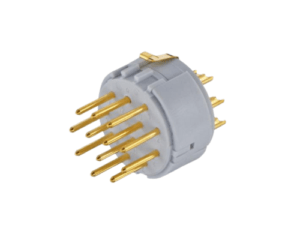

0915 112 2622
12 Way M23 (Signal) Male Insert with Solder Contacts, PE on Position 9

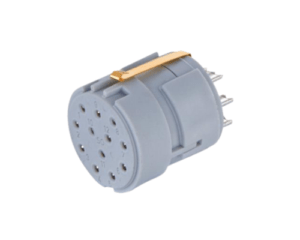

0915 112 2722
12 Way M23 (Signal) Female Insert with Solder Contacts, PE on Position 9

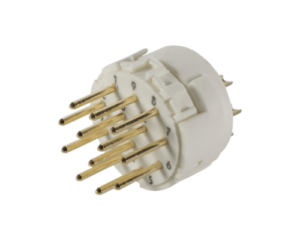

0915 112 2612
12 Way M23 (Signal) Male Insert with Solder Contacts, Counter-clockwise Pinout

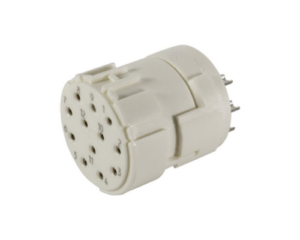

0915 112 2712
12 Way M23 (Signal) Female Insert with Solder Contacts, Counter-clockwise Pinout

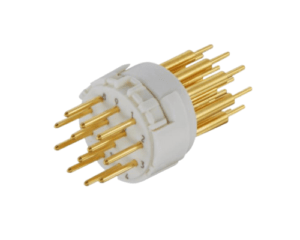

0915 112 2603
12 Way M23 (Signal) Male Insert with Dip-Solder Contacts
0915 112 2703
12 Way M23 (Signal) Female Insert with Dip-Solder Contacts

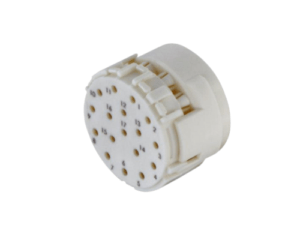

0915 117 3001
17 Way M23 (Signal) Male Insert for Crimp Contacts

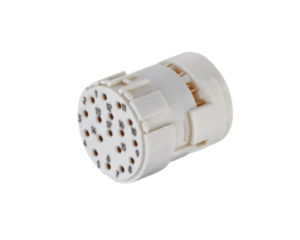

0915 117 3101
17 Way M23 (Signal) Female Insert for Crimp Contacts

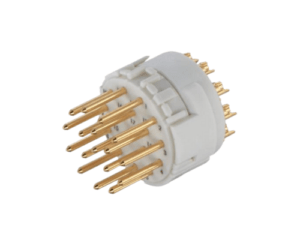

0915 117 2602
17 Way M23 (Signal) Male Insert with Solder Contacts

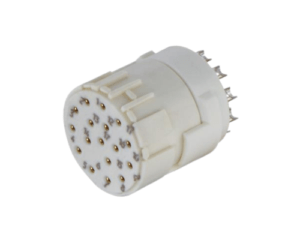

0915 117 2702
17 Way M23 (Signal) Female Insert with Solder Contacts

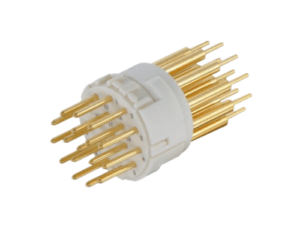

0915 117 2603
17 Way M23 (Signal) Male Insert with Dip-Solder Contacts

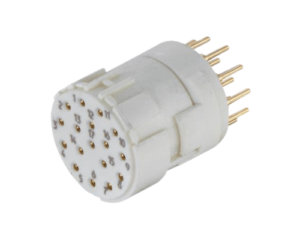

0915 117 2703
17 Way M23 (Signal) Female Insert with Dip-Solder Contacts

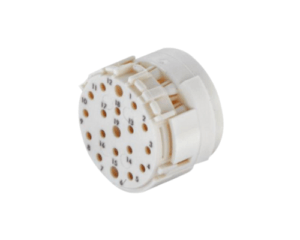

0915 119 3001
19 Way M23 (Signal) Male Insert for Crimp Contacts

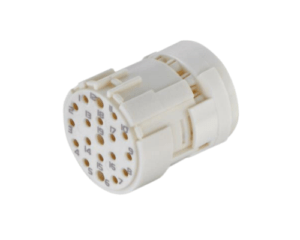

0915 119 3101
19 Way M23 (Signal) Female Insert for Crimp Contacts

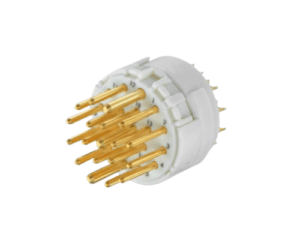

0915 119 2602
19 Way M23 (Signal) Male Insert with Solder Contacts
