With the Han-Modular® Domino System, HARTING is launching the next level of modular connectors to the market.
It is compatible with the components of the Han-Modular® series, the market standard for modular industrial connectors.
Therefore, the Domino modules can be easily integrated into existing systems; existing frames, hoods and housings or connector modules can be used and complemented.
Just as dominoes have two separate squares, a domino module is made up of two building blocks or cubes. Each domino module consists of a cube with a small tab and a cube with a large tab. The cubes can be flexibly joined to form modules as required.
A Han-Modular® Domino module therefore enables the transmission of power, signals, data or compressed air, as male and female contacts can be combined in one domino module.
- No. of Contacts: 1-448
- Locking Mechanism: Lever, Toggles, Screws
- Contact Termination: Crimp
- Wire Gauge Max: 4.00mm²
- Cable Diameter Range: 5-38mm
- Connector Types: Cable to Panel, Cable to Cable
- Max. Voltage: 32-400V
- Max. Current: 4-16A
- Ingress Protection Max: IP44, IP65, IP67, IP68, IP69K
- Moulded Cable Option: No
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
With the Han-Modular® Domino System, HARTING is launching the next level of modular connectors to the market.
It is compatible with the components of the Han-Modular® series, the market standard for modular industrial connectors.
Therefore, the Domino modules can be easily integrated into existing systems; existing frames, hoods and housings or connector modules can be used and complemented.
Just as dominoes have two separate squares, a domino module is made up of two building blocks or cubes. Each domino module consists of a cube with a small tab and a cube with a large tab. The cubes can be flexibly joined to form modules as required.
A Han-Modular® Domino module therefore enables the transmission of power, signals, data or compressed air, as male and female contacts can be combined in one domino module.
- No. of Contacts: 1-448
- Locking Mechanism: Lever, Toggles, Screws
- Contact Termination: Crimp
- Wire Gauge Max: 4.00mm²
- Cable Diameter Range: 5-38mm
- Connector Types: Cable to Panel, Cable to Cable
- Max. Voltage: 32-400V
- Max. Current: 4-16A
- Ingress Protection Max: IP44, IP65, IP67, IP68, IP69K
- Moulded Cable Option: No
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances

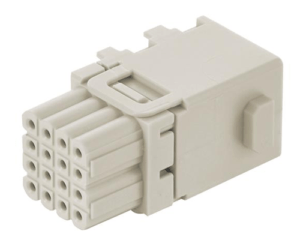

0914 916 1101
Han-Modular-Domino 16 Way Female Module for Socket Contacts, Small Tab

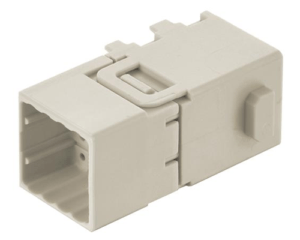

0914 916 1001
Han-Modular-Domino 16 Way Male Module for Pin Contacts, Small Tab

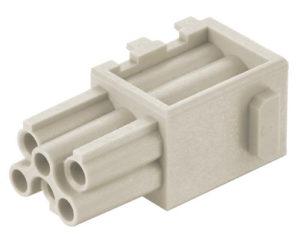

0914 906 2101
Han-Modular-Domino 6 Way Female Module for Socket Contacts, Large Tab, Markings 21-26
0914 906 2001

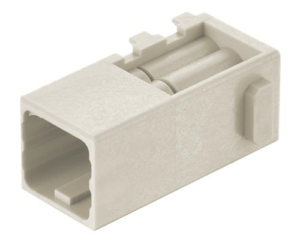

Han-Modular-Domino 6 Way Male Module for Pin Contacts, Large Tab, Markings 21-26

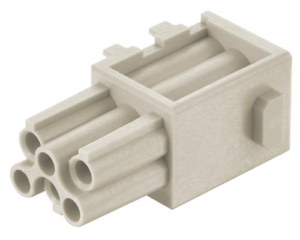

0914 906 1101
Han-Modular-Domino 6 Way Female Module for Socket Contacts, Small Tab

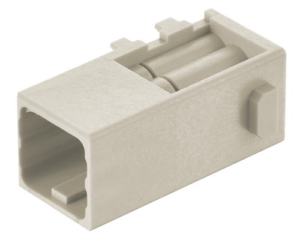

0914 906 1001
Han-Modular-Domino 6 Way Male Module for Pin Contacts, Small Tab
0914 904 2101

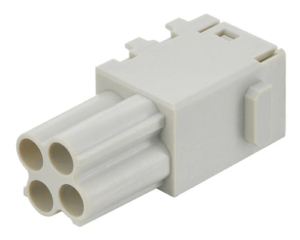

Han-Modular-Domino 4 Way Female Module for Socket Contacts, Large Tab, Markings 21-24

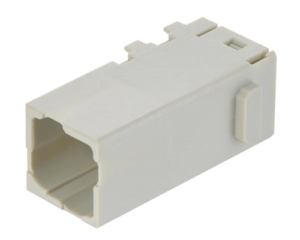

0914 904 2001
Han-Modular-Domino 4 Way Male Module for Pin Contacts, Large Tab, Markings 21-24
0914 904 1101

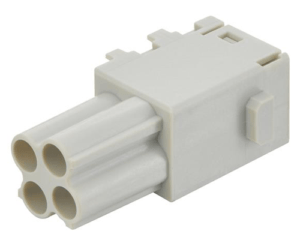

Han-Modular-Domino 4 Way Female Module for Socket Contacts, Small Tab

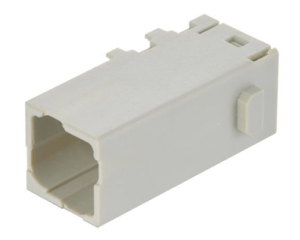

0914 904 1001
Han-Modular-Domino 4 Way Male Module for Pin Contacts, Small Tab
0999 000 0897
Crimp Tool Locator for Harting D-Sub Machined Contacts
0999 000 0531
Crimp Tool Locator for D-Sub (Standard) Machined Contacts
0999 000 0501
Crimp Tool
0999 000 0319
Extraction Tool for Harting Han-E Machined Contacts
0999 000 0171
Insertion & Extraction Tool for Harting D-Sub Machined Contacts
0999 000 0021
Crimp Tool
0999 000 0012
Extraction Tool for Han-D Machined Contacts
0967 000 8576
Han D-Sub (Standard) Crimp Pin Contact, Machined Construction, Gold Plating, 0.25-0.52mm²
0967 000 8476
Han D-Sub (Standard) Crimp Socket Contact, Machined Construction, Gold Plating, 0.25-0.52mm²
0967 000 7576
Han D-Sub (Standard) Crimp Pin Contact, Machined Construction, Gold Plating, 0.09-0.25mm²
0967 000 7476
Han D-Sub (Standard) Crimp Socket Contact, Machined Construction, Gold Plating, 0.09-0.25mm²
0967 000 5576
Han D-Sub (Standard) Crimp Pin Contact, Machined Construction, Gold Plating, 0.13-0.33mm²
0967 000 5476
Han D-Sub (Standard) Crimp Socket Contact, Machined Construction, Gold Plating, 0.13-0.33mm²
0933 000 6227
Han-E Crimp Socket Contact, Machined Construction, Silver Plating, 0.14-0.37mm²
