HARTING Han-Compact® is a space‑saving industrial connector system designed to deliver reliable power, signal and data transmission where installation space is limited. As part of the proven Han® rectangular connector family, Han-Compact® combines the robustness required for harsh industrial environments with a significantly reduced form factor. This makes it an ideal choice for modern machine and equipment designs that demand high performance without compromising on panel space, weight or layout flexibility.
The system is based on a modular design concept, allowing different contact types such as power, signal and data to be combined within a single compact housing.
Despite its smaller size, Han-Compact® maintains the high mechanical stability, vibration resistance and ingress protection expected from HARTING connectors, with protection ratings up to IP65 or IP67 when correctly assembled. This ensures dependable operation in demanding applications involving dust, moisture, vibration or frequent mating cycles.
HARTING Han-Compact® connectors are widely used in industrial automation, robotics, machine building and control cabinet construction, where quick installation, easy maintenance and high connection density are essential. By reducing the number and size of connection interfaces, Han Compact helps streamline wiring, simplify assembly and support more compact, efficient machine designs – without sacrificing durability or electrical performance.
For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form above or simply call us on 01744 815001
- No of Contacts: 4-18
- Locking Mechanism: Lever
- Contact Termination: Crimp, Quick-Lock, Axial Screw
- Wire Gauge Max: 10.00mm²
- Cable Diameter Range: 5-18mm
- Connector Types: Cable to Panel, Cable to Cable
- Max. Voltage: 50-690V
- Max. Current: 5-40A
- Ingress Protection Max: IP65
- Pre-wired Options: No
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
HARTING Han-Compact® is a space‑saving industrial connector system designed to deliver reliable power, signal and data transmission where installation space is limited. As part of the proven Han® rectangular connector family, Han-Compact® combines the robustness required for harsh industrial environments with a significantly reduced form factor. This makes it an ideal choice for modern machine and equipment designs that demand high performance without compromising on panel space, weight or layout flexibility.
The system is based on a modular design concept, allowing different contact types such as power, signal and data to be combined within a single compact housing.
Despite its smaller size, Han-Compact® maintains the high mechanical stability, vibration resistance and ingress protection expected from HARTING connectors, with protection ratings up to IP65 or IP67 when correctly assembled. This ensures dependable operation in demanding applications involving dust, moisture, vibration or frequent mating cycles.
HARTING Han-Compact® connectors are widely used in industrial automation, robotics, machine building and control cabinet construction, where quick installation, easy maintenance and high connection density are essential. By reducing the number and size of connection interfaces, Han Compact helps streamline wiring, simplify assembly and support more compact, efficient machine designs – without sacrificing durability or electrical performance.
For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form above or simply call us on 01744 815001
- No of Contacts: 4-18
- Locking Mechanism: Lever
- Contact Termination: Crimp, Quick-Lock, Axial Screw
- Wire Gauge Max: 10.00mm²
- Cable Diameter Range: 5-18mm
- Connector Types: Cable to Panel, Cable to Cable
- Max. Voltage: 50-690V
- Max. Current: 5-40A
- Ingress Protection Max: IP65
- Pre-wired Options: No
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances

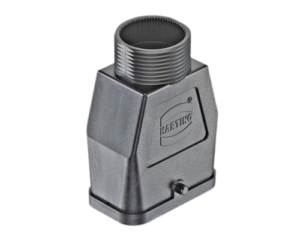

0912 008 0429
Han-Compact Cable Connector Housing with 1 x PG21 Threaded Half-Gland Cable Inlet, Top Entry, Single Lever Locking, Black Plastic Version, IP65

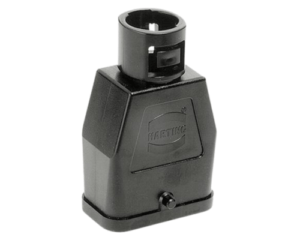

0912 008 0428
Han-Compact Cable Connector Housing with 1 x Adaptaflex PAFS 18 Conduit Inlet, Top Entry, Single Lever Locking, Black Plastic Version, IP65

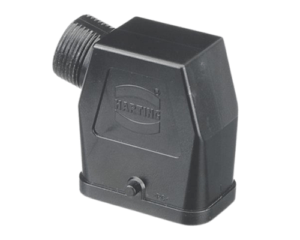

0915 008 0527
Han-Compact Cable Connector Housing with 1 x PG16 Threaded Half-Gland Cable Inlet, Side Entry, Single Lever Locking, Black Plastic Version, IP65

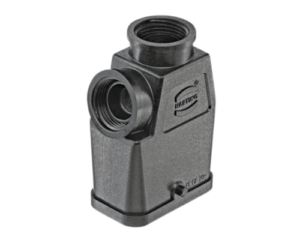

1912 008 0425
Han-Compact Cable Connector Housing with 2 x M20 Threaded Cable Inlets, Top & Side Entry, Single Lever Locking, Black Plastic Version, IP65

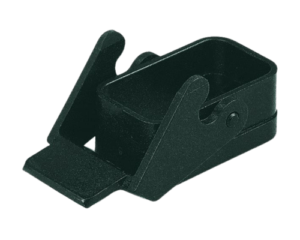

0912 008 0327
Han-Compact Flanged Panel Connector Housing, Single Lever Locking, Black Plastic Version, IP65

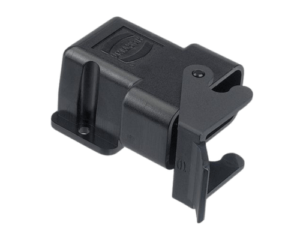

0912 008 0902
Han-Compact Angled Flanged Panel Connector Housing, Single Lever Locking, Black Plastic Version, IP65

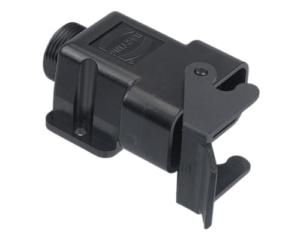

0912 008 0901
Han-Compact Angled Surface Mount Panel Connector Housing with 1 x PG16 Threaded Half-Gland Cable Inlet, Single Lever Locking, Black Plastic Version, IP65
1912 008 0729
Han-Compact In-Line Cable Connector Housing with 1 x M25 Threaded Half-Gland Cable Inlet, Top Entry, Single Lever Locking, Black Plastic Version, IP65

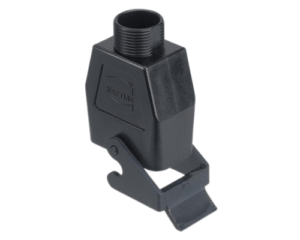

0912 008 0727
Han-Compact In-Line Cable Connector Housing with 1 x PG16 Threaded Half-Gland Cable Inlet, Top Entry, Single Lever Locking, Black Plastic Version, IP65

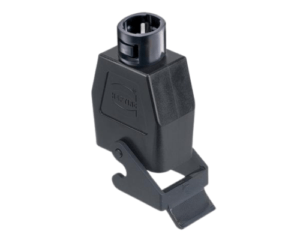

0912 008 0728
Han-Compact In-Line Cable Connector Housing with 1 x Adaptaflex PAFS 18 Conduit Inlet, Top Entry, Single Lever Locking, Black Plastic Version, IP65

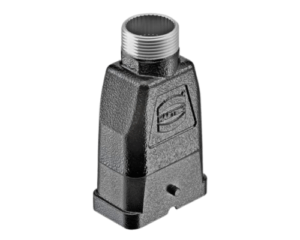

1912 708 0411
Han-Compact Cable Connector Housing with 1 x M25 Threaded Half-Gland Cable Inlet Plus Separate PE Terminating Point, Top Entry, Single Lever Locking, Metal Powder Coated Version, IP65

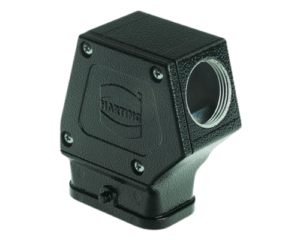

1912 008 0526
Han-Compact Cable Connector Housing with 1 x M25 Threaded Cable Inlet Plus Separate PE Terminating Point, Side Entry, Single Lever Locking, Metal Powder Coated Version, IP65

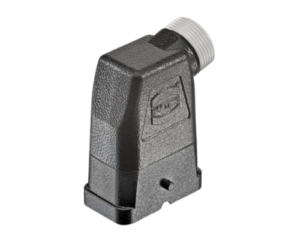

1912 708 0511
Han-Compact Cable Connector Housing with 1 x M25 Threaded Half-Gland Cable Inlet Plus Separate PE Terminating Point, Side Entry, Single Lever Locking, Metal Powder Coated Version, IP65

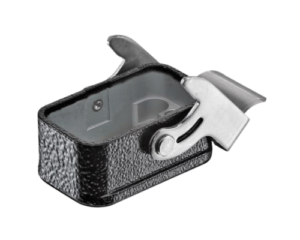

0912 708 0301
Han-Compact Flanged Panel Connector Housing, Single Lever Locking, Metal Powder Coated Version, IP65

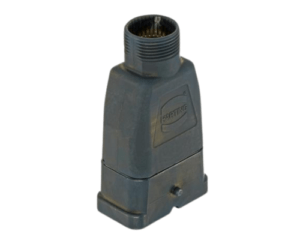

1912 008 0411
Han-Compact Cable Connector Housing with 1 x M25 Threaded Half-Gland Cable Inlet Plus Separate PE Terminating Point, Top Entry, Single Lever Locking, Metal Chromated Version, IP65

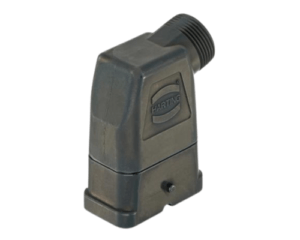

1912 008 0511
Han-Compact Cable Connector Housing with 1 x M25 Threaded Half-Gland Cable Inlet Plus Separate PE Terminating Point, Side Entry, Single Lever Locking, Metal Chromated Version, IP65

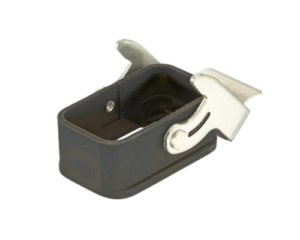

0912 008 0301
Han-Compact Flanged Panel Connector Housing, Single Lever Locking, Metal Chromated Version, IP65

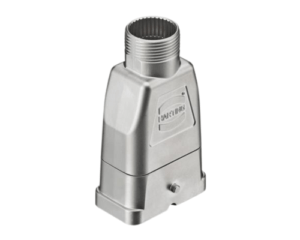

1912 008 0412
Han-Compact Cable Connector Housing with 1 x M25 Threaded Half-Gland Cable Inlet Plus Separate PE Terminating Point, Top Entry, Single Lever Locking, Metal EMC Version, IP65

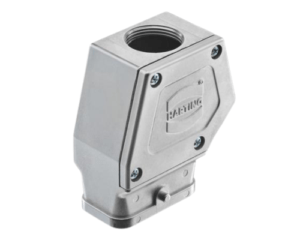

1912 008 0428
Han-Compact Cable Connector Housing with 1 x M25 Threaded Cable Inlet Plus Separate PE Terminating Point, Top Entry, Single Lever Locking, Metal EMC Version, IP65

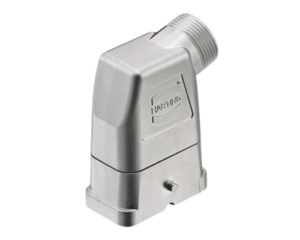

1912 008 0512
Han-Compact Cable Connector Housing with 1 x M25 Threaded Half-Gland Cable Inlet Plus Separate PE Terminating Point, Side Entry, Single Lever Locking, Metal EMC Version, IP65

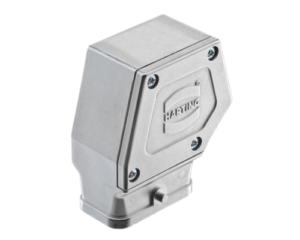

1912 008 0528
Han-Compact Cable Connector Housing with 1 x M25 Threaded Cable Inlet Plus Separate PE Terminating Point, Side Entry, Single Lever Locking, Metal EMC Version, IP65

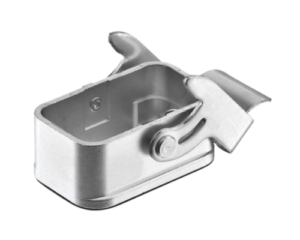

0912 008 0303
Han-Compact Flanged Panel Connector Housing, Single Lever Locking, Metal EMC Version, IP65

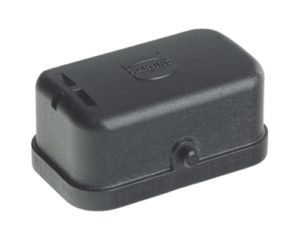

0912 008 5407
Han-Compact Panel Connector Protection Cover, without Fixing Rope, Black Plastic Version, for use with Male Inserts Only, IP65
0912 008 5408
Han-Compact Panel Connector Protection Cover, without Fixing Rope, Black Plastic Version, for use with Female Inserts Only, IP65
