Ideal for applications potentially impacted by dust or water, CONEC’s water-resistant system includes D-subminiature connectors available in a variety of configurations, including standard, high density and combination. Corresponding accessories are also available, such as protective caps and water-resistant hoods.

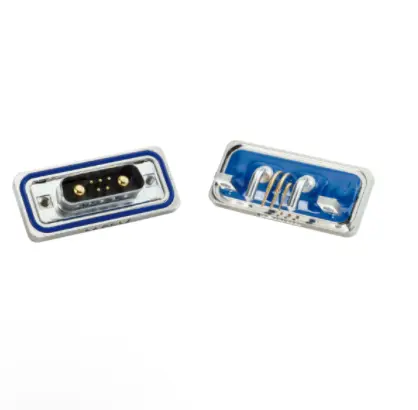

The CONEC IP67 waterproof D-sub combination connectors come in a standard design featuring a metal shell and O-ring, while for instances of greater mechanical stresses a one piece solid body design can be used. Dustproof and able to safeguard against temporary submersion in water, these products are ideal for use in environments where dust and water can be factors, with the seal in the connector preventing any water getting through to the electronics.
Protection offered through these connectors is defined by IEC 60529, which also specifies the suitability of electrical components for a wide number of ambient conditions. Importantly, the products also ensure a continuously secure connection compliant with the IP67 rating. They allow for a wide number of configurations to be achieved and are ideal for meeting the strict demands of use in particularly difficult environments.
System details
CONEC IP67 waterproof D-sub combination connectors boast a number of other important system details, including:
- Special threaded parts, 4-40 UNC and M 3
- All plastic materials comply with UL 94 V0
- Machined precision contacts for heavy duty usage
- Basic connector dimensions – without frame – in compliance with DIN 41652 MIL-C-24308
- All conventional contact termination types available
- Available for front and rear side panel mounting
- Various gold plating options available
- Connector without frame for cable housing
For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.
- No. of Contacts: 2-47
- Locking Mechanism: Hood with Screws
- Termination: Solder, Dip-Solder, Crimp
- Wire Gauge Max: 8.38mm²
- Max. Voltage: Available on Request
- Max. Current: 2.5-40A
- Ingress Protection: IP67
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
