The CONEC Industrial RJ45 connector system has been developed to meet the requirements of harsh environments allowing ethernet networking technology to becoming industry capable.
The IP67 shells are designed to provide improved protection for the connector system, safeguarding against moisture and potential contamination. They also help to provide immunity from vibration, temperature resistance, greater mechanical stability and protection against EMI/RFI.
The popularity and versatility of these waterproof shells ensure they can be used for a wide variety of applications, including communications equipment, oil exploration, printers, food and chemical process controllers, industrial production, outdoor telecommunications systems, industrial process control and more.
Thanks to the shells bayonet latching mechanism, which complies with the IEC 61076-3-106 standard, they offer increased protection and a secure connection in the harshest environments.
For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.
- Interface: RJ45 – Cat. 5e / Cat. 6A
- Locking Mechanism: Bayonet, Lever
- Termination: Screw, Solder, IDC, Crimp
- Housing Material: Plastic, Metalised Plastic, Metal
- Max. Panel Thickness: 3.2mm
- Ingress Protection: IP20, IP67
- Pre-wired Options: Yes
- Standard Cable Lengths: 2m, 4m, 5m
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
The CONEC Industrial RJ45 connector system has been developed to meet the requirements of harsh environments allowing ethernet networking technology to becoming industry capable.
The IP67 shells are designed to provide improved protection for the connector system, safeguarding against moisture and potential contamination. They also help to provide immunity from vibration, temperature resistance, greater mechanical stability and protection against EMI/RFI.
The popularity and versatility of these waterproof shells ensure they can be used for a wide variety of applications, including communications equipment, oil exploration, printers, food and chemical process controllers, industrial production, outdoor telecommunications systems, industrial process control and more.
Thanks to the shells bayonet latching mechanism, which complies with the IEC 61076-3-106 standard, they offer increased protection and a secure connection in the harshest environments.
For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.
- Interface: RJ45 – Cat. 5e / Cat. 6A
- Locking Mechanism: Bayonet, Lever
- Termination: Screw, Solder, IDC, Crimp
- Housing Material: Plastic, Metalised Plastic, Metal
- Max. Panel Thickness: 3.2mm
- Ingress Protection: IP20, IP67
- Pre-wired Options: Yes
- Standard Cable Lengths: 2m, 4m, 5m
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
17-110554
Jam-Nut Panel Connector with Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, with Grounding, Metalised Plastic Shell, IP67
17-111034
Jam-Nut Panel Connector with Protection Cover & Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, with Grounding, Metalised Plastic Shell, IP67

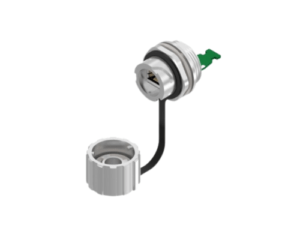

17-111044
Jam-Nut Panel Connector with Protection Cover & Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, with Grounding, Metalised Plastic Shell, IP67
17-110564
Jam-Nut Panel Connector with Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, with Grounding, Metal Shell, IP67

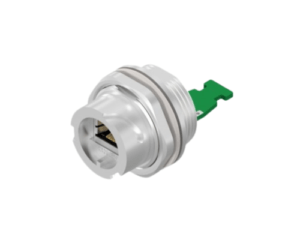

17-110574
Jam-Nut Panel Connector with Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, with Grounding, Metal Shell, IP67
17-111054
Jam-Nut Panel Connector with Protection Cover & Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, with Grounding, Metal Shell, IP67

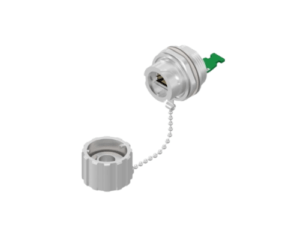

17-111064
Jam-Nut Panel Connector with Protection Cover & Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, with Grounding, Metal Shell, IP67
17-111094
Square Flanged Panel Connector with Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, with Grounding, Metal Shell, IP67

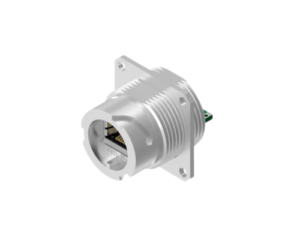

17-111104
Square Flanged Panel Connector with Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, with Grounding, Metal Shell, IP67

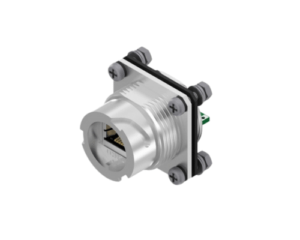

17-111154
Square Flanged Panel Connector with Accessories & Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, with Grounding, Metal Shell, IP67
17-111164
Square Flanged Panel Connector with Accessories & Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, with Grounding, Metal Shell, IP67

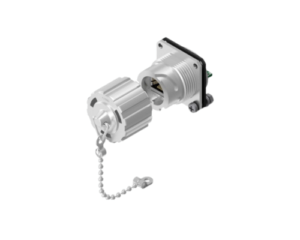

17-111214
Square Flanged Panel Connector with Accessories, Protection Cover & Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, with Grounding, Metal Shell, IP67
17-111224
Square Flanged Panel Connector with Accessories, Protection Cover & Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, with Grounding, Metal Shell, IP67
17-111114
Square Flanged Panel Connector with Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, with Grounding, Metal Shell, IP67

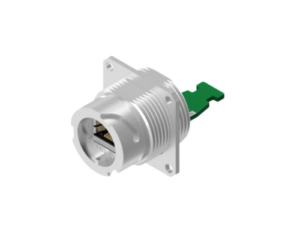

17-111124
Square Flanged Panel Connector with Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, with Grounding, Metal Shell, IP67
17-111174
Square Flanged Panel Connector with Accessories & Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, with Grounding, Metal Shell, IP67

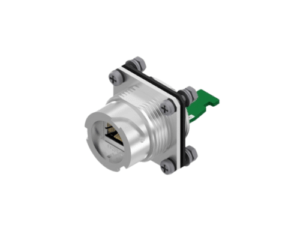

17-111184
Square Flanged Panel Connector with Accessories & Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, with Grounding, Metal Shell, IP67
17-111234
Square Flanged Panel Connector with Accessories, Protection Cover & Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, with Grounding, Metal Shell, IP67

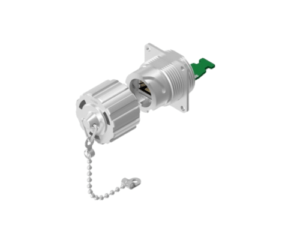

17-111244
Square Flanged Panel Connector with Accessories, Protection Cover & Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, with Grounding, Metal Shell, IP67

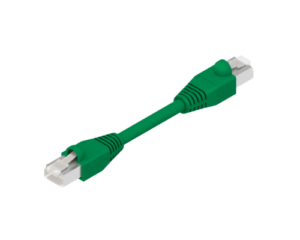

17-100754
8 Way RJ45 Cable Assembly, Straight Male to Straight Male, 4m Cat. 5e Cable with Green Jacket, IP20

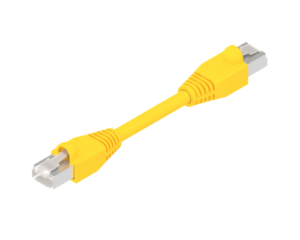

17-100784
8 Way RJ45 Cable Assembly, Straight Male to Straight Male, 4m Cat. 5e Cable with Yellow Jacket, IP20

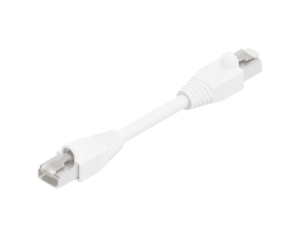

17-100814
8 Way RJ45 Cable Assembly, Straight Male to Straight Male, 4m Cat. 5e Cable with White Jacket, IP20

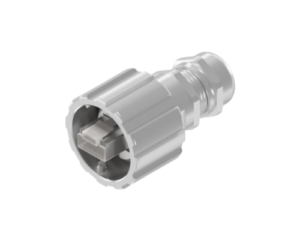

17-101794
Cable Connector Housing with Shieldable RJ45 Cat. 5e Plug, Metal Coupling Ring, IP67

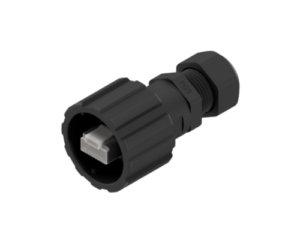

17-150234
Cable Connector Housing with Shieldable RJ45 Cat. 6A Plug, Plastic Coupling Ring, IP67
