The binder bayonet IP40 subminiature series is a neat and compact range of circular connectors with a secure locking mechanism.
The connector is quite a rare design in that the bayonet locking mechanism tends to be seen on much larger setups so this offers options not otherwise seen elsewhere.
Field attachable cable versions are available in solder cup with either 3-4 or 4-5mm cable outlet and in both genders for cable to cable or cable to panel connections. Panel receptacles are front mount / rear fastened and also have solder cup termination.
For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001
- No. of Contacts: 2-8
- Locking Mechanism: Bayonet
- Contact Termination: Solder
- Wire Gauge Max: 0.25mm²
- Cable Diameter Range: 3-5mm
- Connector Types: Cable to Panel, Cable to Cable
- Max. Voltage: 125V
- Max. Current: 1A
- Ingress Protection Max: IP40
- Pre-wired Options: No
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
The binder bayonet IP40 subminiature series is a neat and compact range of circular connectors with a secure locking mechanism.
The connector is quite a rare design in that the bayonet locking mechanism tends to be seen on much larger setups so this offers options not otherwise seen elsewhere.
Field attachable cable versions are available in solder cup with either 3-4 or 4-5mm cable outlet and in both genders for cable to cable or cable to panel connections. Panel receptacles are front mount / rear fastened and also have solder cup termination.
For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001
- No. of Contacts: 2-8
- Locking Mechanism: Bayonet
- Contact Termination: Solder
- Wire Gauge Max: 0.25mm²
- Cable Diameter Range: 3-5mm
- Connector Types: Cable to Panel, Cable to Cable
- Max. Voltage: 125V
- Max. Current: 1A
- Ingress Protection Max: IP40
- Pre-wired Options: No
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
09-0973-00-02

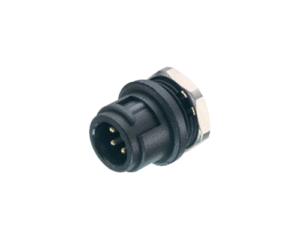

2 Way Bayonet Male Jam-Nut Panel Connector with Solder Contacts, IP40 (710 Series)
09-0978-00-03

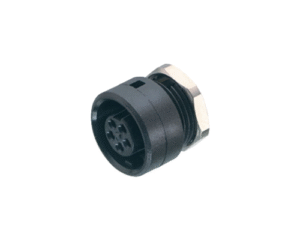

3 Way Bayonet Female Jam-Nut Panel Connector with Solder Contacts, IP40 (710 Series)
09-0977-00-03
3 Way Bayonet Male Jam-Nut Panel Connector with Solder Contacts, IP40 (710 Series)
09-0974-00-02
2 Way Bayonet Female Jam-Nut Panel Connector with Solder Contacts, IP40 (710 Series)
09-0997-00-05
5 Way Bayonet Male Jam-Nut Panel Connector with Solder Contacts, IP40 (710 Series)
09-0982-00-04
4 Way Bayonet Female Jam-Nut Panel Connector with Solder Contacts, IP40 (710 Series)
09-0981-00-04
4 Way Bayonet Male Jam-Nut Panel Connector with Solder Contacts, IP40 (710 Series)
09-0998-00-05
5 Way Bayonet Female Jam-Nut Panel Connector with Solder Contacts, IP40 (710 Series)
09-9481-00-08
8 Way Bayonet Male Jam-Nut Panel Connector with Solder Contacts, IP40 (710 Series)
09-9478-00-07
7 Way Bayonet Female Jam-Nut Panel Connector with Solder Contacts, IP40 (710 Series)
09-9477-00-07
7 Way Bayonet Male Jam-Nut Panel Connector with Solder Contacts, IP40 (710 Series)
09-9482-00-08
8 Way Bayonet Female Jam-Nut Panel Connector with Solder Contacts, IP40 (710 Series)
99-0972-100-02

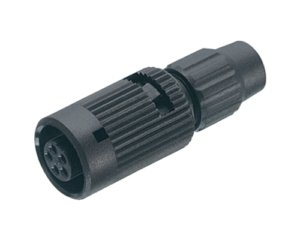

2 Way Bayonet Female Cable Connector with Solder Contacts, 3-4mm Straight Cable Entry, IP40 (710 Series)
99-0971-102-02

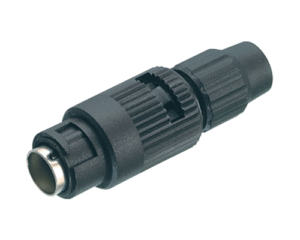

2 Way Bayonet Male Cable Connector with Solder Contacts, 4-5mm Straight Cable Entry, IP40 (710 Series)
99-0971-100-02
2 Way Bayonet Male Cable Connector with Solder Contacts, 3-4mm Straight Cable Entry, IP40 (710 Series)
99-0975-102-03
3 Way Bayonet Male Cable Connector with Solder Contacts, 4-5mm Straight Cable Entry, IP40 (710 Series)
99-0975-100-03
3 Way Bayonet Male Cable Connector with Solder Contacts, 3-4mm Straight Cable Entry, IP40 (710 Series)
99-0972-102-02
2 Way Bayonet Female Cable Connector with Solder Contacts, 4-5mm Straight Cable Entry, IP40 (710 Series)
99-0979-100-04
4 Way Bayonet Male Cable Connector with Solder Contacts, 3-4mm Straight Cable Entry, IP40 (710 Series)
99-0976-102-03
3 Way Bayonet Female Cable Connector with Solder Contacts, 4-5mm Straight Cable Entry, IP40 (710 Series)
99-0976-100-03
3 Way Bayonet Female Cable Connector with Solder Contacts, 3-4mm Straight Cable Entry, IP40 (710 Series)
99-0980-102-04
4 Way Bayonet Female Cable Connector with Solder Contacts, 4-5mm Straight Cable Entry, IP40 (710 Series)
99-0980-100-04
4 Way Bayonet Female Cable Connector with Solder Contacts, 3-4mm Straight Cable Entry, IP40 (710 Series)
99-0979-102-04
4 Way Bayonet Male Cable Connector with Solder Contacts, 4-5mm Straight Cable Entry, IP40 (710 Series)
