1303470000

Weidmüller / PV-Stick Connector Series

Pack of 200 Male PV Connectors with Snap-in Contact, 5.4-7.6mm Straight Cable Entry, IP65, IP67 & IP68 (PV-STICK+ VPE200)

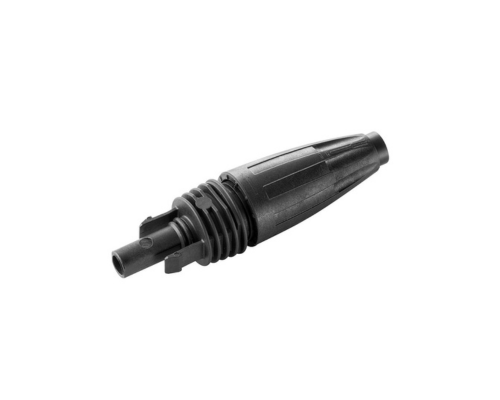

1303470000 thumbnailImage may be representative of a range of products, see literature to confirm

Available Downloads

Downloaded iconDatasheet thumbnail
Datasheet
Downloaded iconBrochure thumbnail
Brochure
Quick Quote

Technical Specification

Part Number1303470000
Product TypeConnector
BrandWeidmuller
Connector SeriesPV-Stick Connector Series
ApprovalsCE, TUV
Backshell IncludedYes
Body OrientationStraight
Connector Type 2Cable Connector
Contact Plating�
Contacts IncludedYes
Coupling Area MaterialPlastic
Current Rating30A
Voltage Rating1,500 DC
Electrical NotesStandard-compliant quality in accordance with IEC 62852
Degree of Ingress ProtectionIP65, IP67, IP68
EMC ShieldNo
Gender of InsertMale
Housing MaterialPlastic
Keyway/Coding TypeStandard
Locking SystemLatch
Min. Mechanical Mating Cycles�
Max. Wire Gauge/Cross-Sectional Area6.00mm²
Min. Cable Entry (mm)5.4
Max. Cable Entry (mm)7.6
Number of Ways1
Operating Temperature-40 to +85°C
Positive Earth (PE)NA
Termination Method/TechnologySNAP-IN

About this Series

Weidmüller logo

Offering high-quality connector innovations for the renewable energy, automation and aerospace sectors

In brief:

Robust circular connector system with latch locking mechanism.

PV-Stick connectors allow wire gauges up to 6.00mm² and have a maximum current carrying capacity of 30A.

The series caters for cable OD’s of up to 7.6mm and is capable of offering IP65, IP67 & IP68 ingress protection in both mated state or with the use of a protection cover.

Weidmuller PV Stick Connector Series

No crimping tool, no lost time, no extra effort - the unique PV-Stick uses tried & tested SNAP-IN wire technology. The fastest, easiest and safest way to wire up photovoltaic plants - literally in no time.

Simply insert the stripped photovoltaic conductor - you don’t need a wire end ferrule.

As soon as you hear a "click", the parts have safely made contact.

Then turn the screw cover cap a few times to tighten it. Done!

Product advantages

  • No crimp contact or tools required to terminate the wire with SNAP-IN wire technology
  • Fast & easy installation without assembly errors
  • TÜV-tested & approved according to IEC 62852

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001
