Weidmüller / OMNIMATE® 4.0 Signal Series

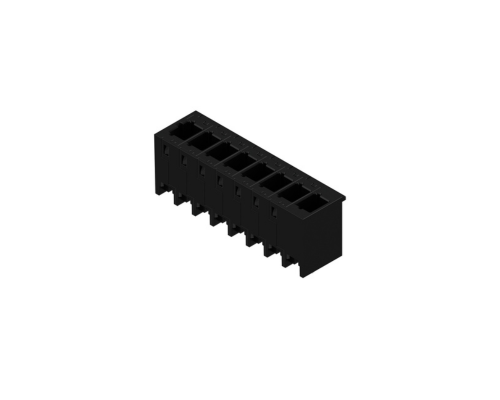

8 Way Male Board Connector with Dip-Solder Contacts, IP20 (MHS 5/08 V T3 B T)

Image may be representative of a range of products, see literature to confirm

Available Downloads

Technical Specification

Part Number8000072453

Product TypeConnector

BrandWeidmuller

Connector SeriesOmnimate 4.0 Signal

ApprovalsUL

Backshell IncludedNo

Body OrientationStraight

Connector TypeBoard Connector

Contact PlatingTin

Contacts IncludedYes

Coupling Area MaterialPlastic

Current Rating26.8A

Voltage Rating400V

Electrical NotesTested acc. to standard IEC 60664-1, IEC 61984

Degree of Ingress ProtectionIP20

EMC Shielding CapabilityNo

Gender of contacts acceptedMale

Gender of InsertMale

Housing MaterialPlastic

Keyway/Coding TypeStandard

Locking SystemPush-fit

Min. Mechanical Mating Cycles25

Max. Wire Gauge/Cross-Sectional AreaNA

Min. Cable Entry (mm)NA

Max. Cable Entry (mm)NA

Number of Ways8

Operating Temperature-50 to +100°C

Positive Earth (PE)No

Termination Method/TechnologyDip-Solder

About this Series

Offering high-quality connector innovations for the renewable energy, automation and aerospace sectors

In brief:

Compact 5.00 Pitch PCB connector system with push-fit or latch locking mechanism.

OMNIMATE® 4.0 Signal connectors offer pin-counts from 2 to 12 with a current carrying capacity of up to 26.8A per contact.

The series caters for wire & board connections, has a wire gauge max. of 4.00mm² and is capable of offering IP20 ingress protection in mated state.

Weidmuller OMNIMATE 4.0 Signal Series - Industrial Connectors from Northern Connectors

OMNIMATE® 4.0 - Fast. Flexible. Digital.

Ready for robot connectivity solutions for pioneers.

The demands on the development of electrical devices are constantly increasing. This leads to higher complexity and challenges device developers.

OMNIMATE® 4.0 is the efficient solution for a continuous, digitalised device development process for the connected world of tomorrow.

OMNIMATE® 4.0 combines three innovations in one:
1. Super-fast wire connection technology
2. Modular product design
3. Fastest possible delivery

The innovative SNAP IN wire connection technology allows even flexible conductors without ferrules to be connected easily without tools. An indicator signals the secure connection both acoustically & visually.

Hearable and visible feedback
OMNIMATE® 4.0 has a visual safety indicator that gives the user direct feedback of the clamping situation. In addition to a hearable "click" the green visual safety indicator increase the security and proper wiring of the connector.

Easy and intuitive handling
The easy and one-hand usable top flange fixes the product and prevents undesired disconnection.

The tool-less re-wiring with the lever function brings handling to a new level.

For a more detailed description of this connector series please see the manufacturer's brochure which is available to download above.
