Weidmüller / OMNIMATE® 4.0 Signal Series

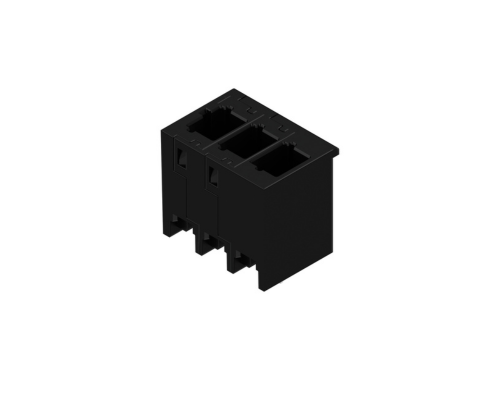

3 Way Male Board Connector with Dip-Solder Contacts, IP20 (MHS 5/03 V T3 B T)

8000072430 thumbnailImage may be representative of a range of products, see literature to confirm

Available Downloads

Quick Quote

Technical Specification

Part Number8000072430
Product TypeConnector
Connector SeriesOmnimate 4.0 Signal
Backshell IncludedNo
Body OrientationStraight
Connector TypeBoard Connector
Contact PlatingTin
Contacts IncludedYes
Coupling Area MaterialPlastic
Current Rating26.8A
Voltage Rating400V
Electrical NotesTested acc. to standard IEC 60664-1, IEC 61984
Degree of Ingress ProtectionIP20
EMC Shielding CapabilityNo
Gender of contacts acceptedMale
Gender of InsertMale
Housing MaterialPlastic
Keyway/Coding TypeStandard
Locking SystemPush-fit
Min. Mechanical Mating Cycles25
Max. Wire Gauge/Cross-Sectional AreaNA
Min. Cable Entry (mm)NA
Max. Cable Entry (mm)NA
Number of Ways3
Operating Temperature-50 to +100°C
Positive Earth (PE)No
Termination Method/TechnologyDip-Solder

About this Series

 Weidmüller logo

Offering high-quality connector innovations for the renewable energy, automation and aerospace sectors

In brief:

Compact 5.00 Pitch PCB connector system with push-fit or latch locking mechanism.

OMNIMATE® 4.0 Signal connectors offer pin-counts from 2 to 12 with a current carrying capacity of up to 26.8A per contact.

The series caters for wire & board connections, has a wire gauge max. of 4.00mm² and is capable of offering IP20 ingress protection in mated state.

Weidmuller OMNIMATE 4.0 Signal Series - Industrial Connectors from Northern Connectors

OMNIMATE® 4.0 - Fast. Flexible. Digital.

Ready for robot connectivity solutions for pioneers.

The demands on the development of electrical devices are constantly increasing. This leads to higher complexity and challenges device developers.

OMNIMATE® 4.0 is the efficient solution for a continuous, digitalised device development process for the connected world of tomorrow.

OMNIMATE® 4.0 combines three innovations in one:
1. Super-fast wire connection technology
2. Modular product design
3. Fastest possible delivery

The innovative SNAP IN wire connection technology allows even flexible conductors without ferrules to be connected easily without tools. An indicator signals the secure connection both acoustically & visually.

Hearable and visible feedback
OMNIMATE® 4.0 has a visual safety indicator that gives the user direct feedback of the clamping situation. In addition to a hearable "click" the green visual safety indicator increase the security and proper wiring of the connector.

Easy and intuitive handling
The easy and one-hand usable top flange fixes the product and prevents undesired disconnection.

The tool-less re-wiring with the lever function brings handling to a new level.

For a more detailed description of this connector series please see the manufacturer's brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001.
