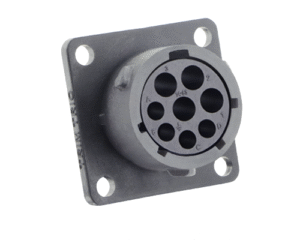

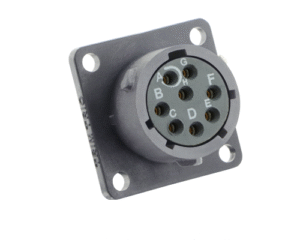

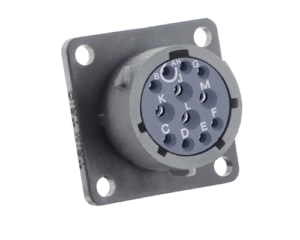

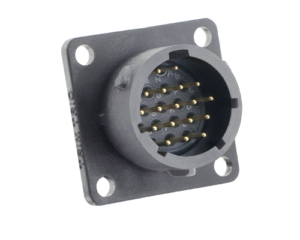

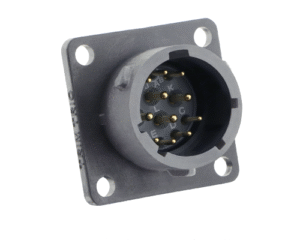

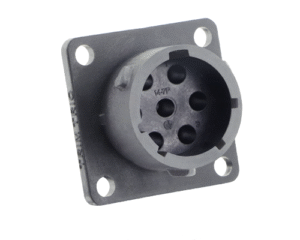

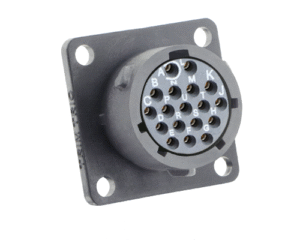

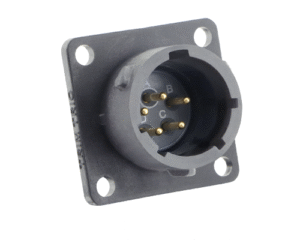

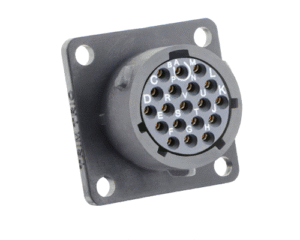

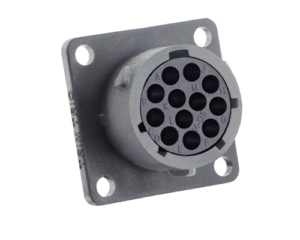

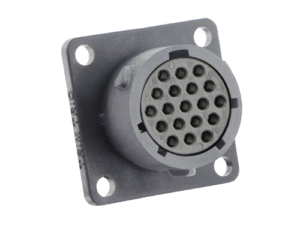

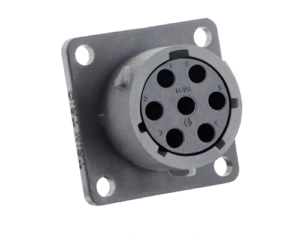

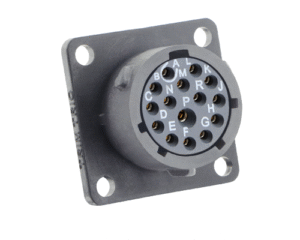

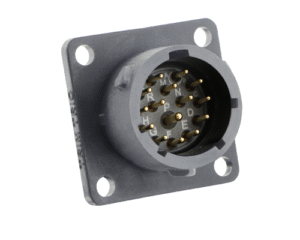

Souriau UTSX Series

The Souriau UTSX series is a full-plastic, waterproof circular connector designed for harsh environments.

The UTSX series features reinforced bayonet pins and a broader range of layouts, sizes and mechanical keyings when compared to its predecessor, the UTS series.

Reliable connections in harsh environments
UTSX series connectors are waterproof, lightweight, withstand 250 mating cycles and are manufactured from materials that have UV and corrosion resistant properties. They are IP68/69K rated even in dynamic conditions and available with multiple contact layouts for design flexibility, including hybrid power/signal and hybrid copper/fibre.

Easy, quick and safe to use in a wide range of applications
The easy to grip connectors have a one-third bayonet coupling to confirm the connection with an audible and tactile click. The UTSX series is compliant with IEC and UL standards and resistant to shock, ensuring safe connections for installers and operators. The UTSX series is perfect for outdoor solar and wind management applications, as well as conditions where humidity or corrosive agents would compromise metal components – applications that range from off-road machinery to instrumentation and water management.

Trim Trio® Connectors – Versatile Industrial Interconnect Solutions
The Souriau UTSX Series forms part of the Souriau Trim Trio® industrial connector portfolio.

Trim Trio® refers to the trio of contact options (machined, stamped & formed, highspeed) which can be used with these rugged bayonet or latch locking circular and rectangular connector types.

This unique feature simplifies the supply chain, reduces the complexity of production and gives you the ability to switch from one connector series to another very easily. This allows you to address new customer needs with little fuss or impact on your equipment and production lines. Your product upgrade is easier, faster and without additional costs.

Developed to be compliant with major electrical IEC and UL standards, the Trim Trio® connector portfolio guarantees safety conditions for the installers, making it the ideal solution for all your industrial and harsh environment needs.

Other Souriau Trim Trio® series include the UTP, UTG, UTS, UTO, UTGX, UTOX, UTL and SMS Series.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.

• No. of Contacts: 2-19
• Locking Mechanism: Bayonet
• Contact Termination: Crimp, Solder, Dip-Solder, Screw
• Wire Gauge Max: 10.00mm²
• Cable Diameter Range: 1.5-14mm
• Connector Types: Cable to Panel, Cable to Cable
• Max. Voltage: UL, CSA, IEC Ratings Available on Request
• Max. Current: UL, CSA, IEC Ratings Available on Request
• Ingress Protection Max: IP68, IP69K
• Pre-wired Options: On Request

Electrical Notes

See literature for derating curves

Safety Notes

Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury

Ingress Protection Notes

Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise

Additional accessories may also be required to maintain IP rating in some instances
