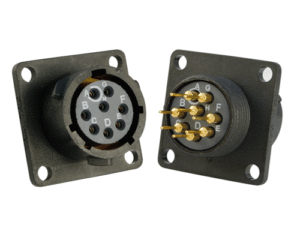

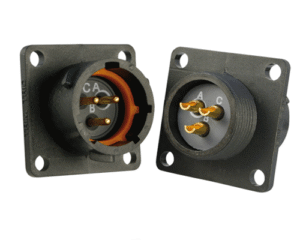

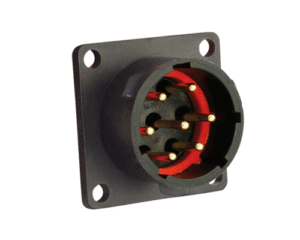

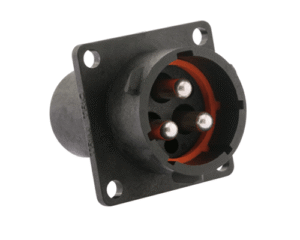

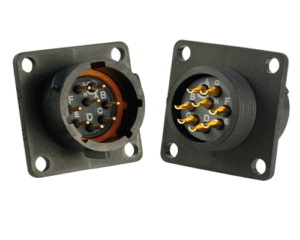

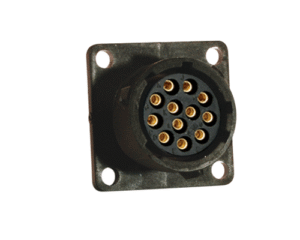

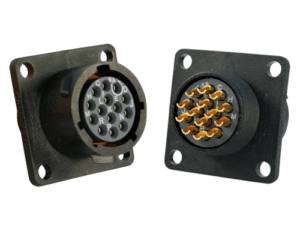

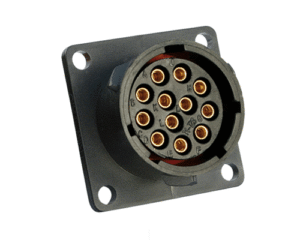

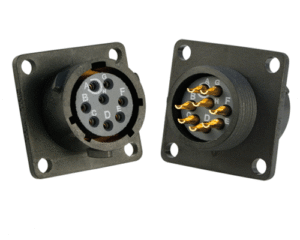

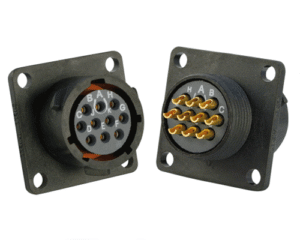

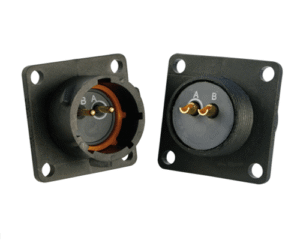

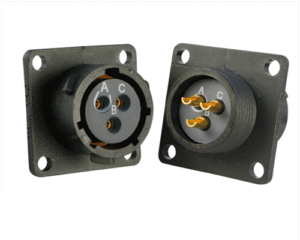

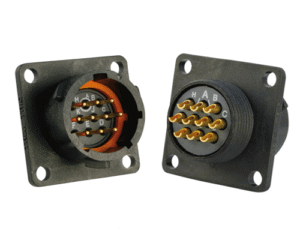

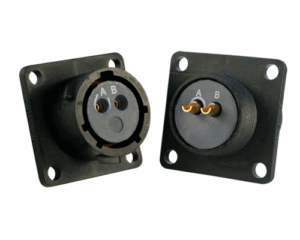

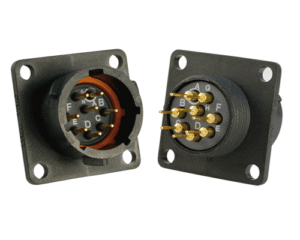

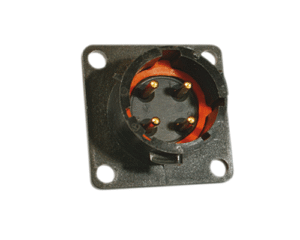

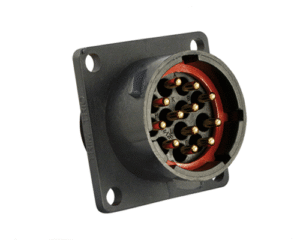

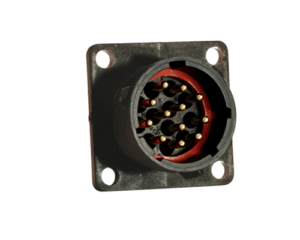

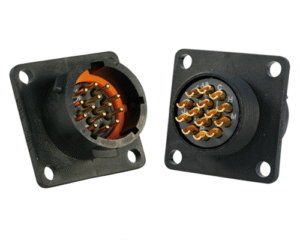

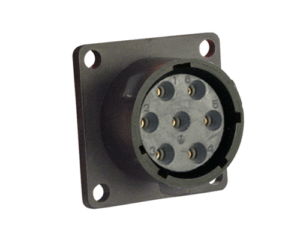

Souriau UTS Series

The Souriau UTS series is a range of circular connectors designed for use in harsh environments. The system predominantly uses crimp termination but there are also options of solder cup, screw termination (12-4 & 14-7 layout) and dip solder for PCB use.

The connectors are made of high quality plastics and as standard offer IP68/IP69K in mated condition or with the use of a protection cover.

The series also boasts a ‘Hi-Seal’ variant which has solder bucket contacts pre-loaded so that the unit can be sealed in the manufacturing process therefore offering IP68/IP69K environmental protection in both mated and unmated state.

The system has a choice of 5 shell sizes with a total of 36 different pin configurations/layouts.

Trim Trio® Connectors – Versatile Industrial Interconnect Solutions

The Souriau UTS Series forms part of the Souriau Trim Trio® industrial connector portfolio.

Trim Trio® refers to the trio of contact options (machined, stamped & formed, highspeed) which can be used with these rugged bayonet or latch locking circular and rectangular connector types.

This unique feature simplifies the supply chain, reduces the complexity of production and gives you the ability to switch from one connector series to another very easily. This allows you to address new customer needs with little fuss or impact on your equipment and production lines. Your product upgrade is easier, faster and without additional costs.

Developed to be compliant with major electrical IEC and UL standards, the Trim Trio® portfolio guarantees safety conditions for the installers, making it the ideal solution for all your industrial and harsh environment needs.

Other Souriau Trim Trio® series include the UTP, UTG, UTO, UTSX, UTGX, UTOX, UTL and SMS Series.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.

• No. of Contacts: 2-32
• Locking Mechanism: Bayonet
• Contact Termination: Crimp, Solder, Dip-Solder, Screw
• Wire Gauge Max: 10.00mm²
• Cable Diameter Range: 1.5-18mm
• Connector Types: Cable to Panel, Cable to Cable
• Max. Voltage: UL, CSA, IEC Ratings Available on Request
• Max. Current: UL, CSA, IEC Ratings Available on Request
• Ingress Protection Max: IP67, IP68, IP69K
• Pre-wired Options: On Request

Electrical Notes

See literature for derating curves

Safety Notes

Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury

Ingress Protection Notes

Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise

Additional accessories may also be required to maintain IP rating in some instances
