Souriau SMS Series

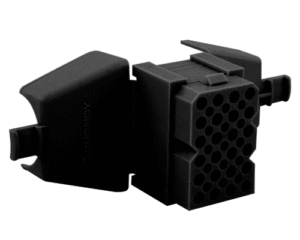

The Souriau SMS Quick Mating (known also as Qikmate) series offers a cost effective multiway setup with an easy fit retention latch that allows simple and swift mating and unmating.

The following three sub series in the SMS range open the connectors up to multiple applications and has allowed the product to be designed into a variety of technology including lighting and rail infrastructure;

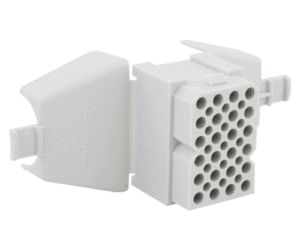

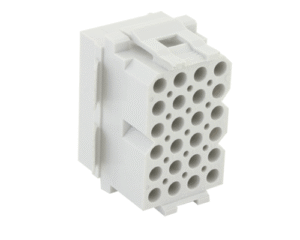

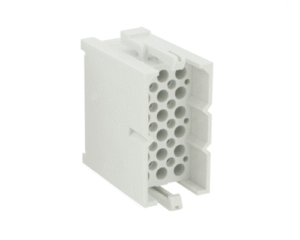

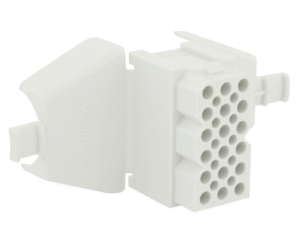

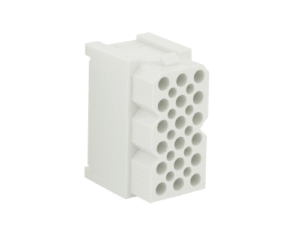

• Panel and Cable Connectors – 2 to 36 way

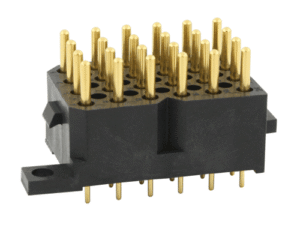

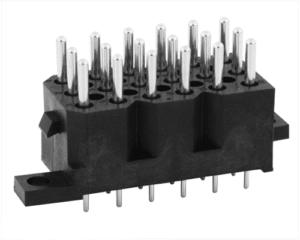

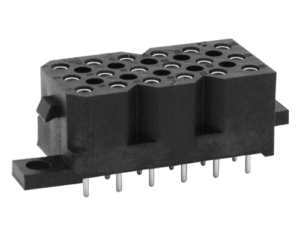

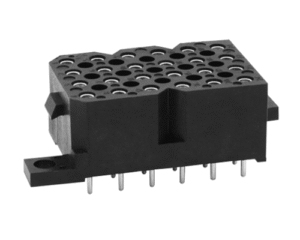

• PC Boardmount Connectors – 2 to 36 way

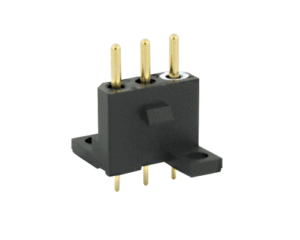

• PC Boardmount Pin Headers & Plugs – 3 to 10 way

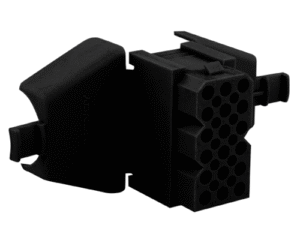

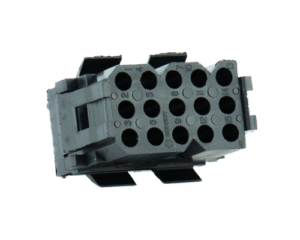

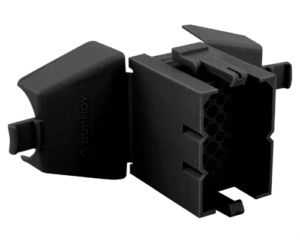

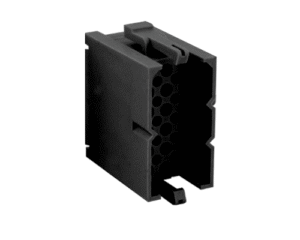

Standard black SMS connectors are made of Polyamide 6.6. with a Flammability rating conforming to UL94 V2.

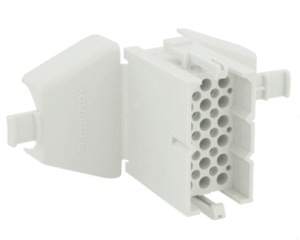

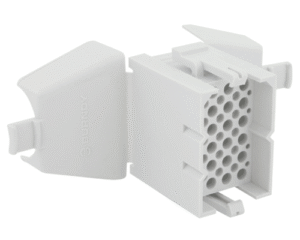

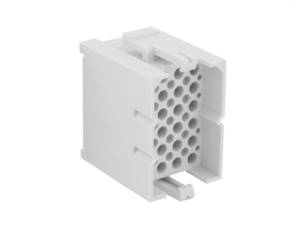

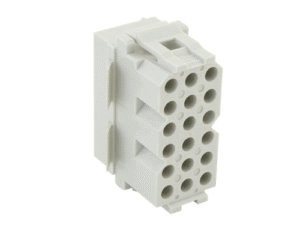

Special White versions conform to the flammability rating UL94 V0 and HL3/R22 – HL3/R23 following EN 45 545-2 which is necessary for many rail applications.

Trim Trio® Connectors – Versatile Industrial Interconnect Solutions

The Souriau SMS Series forms part of the Souriau Trim Trio® industrial connector portfolio.

Trim Trio® refers to the trio of contact options (machined, stamped & formed, highspeed) which can be used with these rugged bayonet or latch locking circular and rectangular connector types.

This unique feature simplifies the supply chain, reduces the complexity of production and gives you the ability to switch from one connector series to another very easily. This allows you to address new customer needs with little fuss or impact on your equipment and production lines. Your product upgrade is easier, faster and without additional costs.

Developed to be compliant with major electrical IEC and UL standards, the Trim Trio® portfolio guarantees safety conditions for the installers, making it the ideal solution for all your industrial and harsh environment needs.

Other Souriau Trim Trio® series include the UTP, UTG, UTS, UTO, UTSX, UTGX, UTOX and UTL Series.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001

• No. of Contacts: 2-36
• Locking Mechanism: Latch
• Contact Termination: Crimp, Solder, Dip-Solder
• Wire Gauge Max: 2.50mm²
• Cable Diameter Range: 0.5-24.5mm
• Connector Types: Cable to Panel, Cable to Cable, Wire to Board
• Max. Voltage: UL, CSA, IEC Ratings Available on Request
• Max. Current: UL, CSA, IEC Ratings Available on Request
• Ingress Protection Max: IP40
• Pre-wired Options: No

Electrical Notes

See literature for derating curves

Safety Notes

Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury

Ingress Protection Notes

Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise

Additional accessories may also be required to maintain IP rating in some instances
