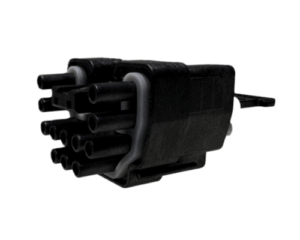

The Souriau SMS IP Series is a compact, high-performance rectangular connector system specifically engineered for demanding environments such as onboard railway equipment. Designed around the proven Trim Trio® platform, the series utilises standard Ø1.6 mm contacts to simplify procurement and assembly while maintaining high levels of electrical performance and reliability.
A key feature of the SMS IP Series is its sealed construction, offering ingress protection up to IP66 and IP67 when mated. This makes these Souriau connectors ideally suited for applications exposed to moisture, dust, and harsh environmental conditions. The connectors are supplied with pre-mounted grommets and interfacial seals, ensuring consistent sealing performance without additional assembly steps.
From a performance perspective, the series supports operating voltages up to 500 V and current ratings up to 15 A per contact, while maintaining generous creepage and clearance distances for enhanced electrical safety. The robust thermoplastic housing, combined with a stainless steel latch mechanism, delivers a secure locking system with an audible “click”, ensuring reliable mating even in high-vibration environments.
The SMS IP Series is also designed to meet stringent railway fire, smoke, and safety standards, including EN 45545 compliance, making it suitable for safety-critical applications such as lighting systems, control units, and onboard electronics. Its wide operating temperature range and resistance to shock, vibration, and corrosive elements further reinforce its suitability for harsh industrial and transport applications.
Overall, the SMS IP range provides a lightweight, compact, and cost-effective interconnect solution, combining sealing performance, safety compliance, and ease of installation in a versatile connector system. With multiple configurations available (including 3, 6, and 12-way layouts), it offers a flexible solution for a wide variety of cable-to-cable and equipment integration requirements.
Other Souriau Trim Trio® series include the SMS, UTP, UTG, UTS, UTO, UTSX, UTGX, UTOX and UTL Series.
Many of the circular options derive from MIL-DTL-26482 Series 1 or 2 connectors and have common compatible interfaces.
For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001
- No. of Contacts: 3-12
- Locking Mechanism: Latch
- Contact Termination: Crimp
- Wire Gauge Max: 2.50mm²
- Cable Diameter Range: NA
- Connector Types: Cable to Cable, Cable to Panel
- Max. Voltage: UL, CSA, IEC Ratings Available on Request
- Max. Current: UL, CSA, IEC Ratings Available on Request
- Ingress Protection Max: IP67
- Pre-wired Options: No
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
The Souriau SMS IP Series is a compact, high-performance rectangular connector system specifically engineered for demanding environments such as onboard railway equipment. Designed around the proven Trim Trio® platform, the series utilises standard Ø1.6 mm contacts to simplify procurement and assembly while maintaining high levels of electrical performance and reliability.
A key feature of the SMS IP Series is its sealed construction, offering ingress protection up to IP66 and IP67 when mated. This makes these Souriau connectors ideally suited for applications exposed to moisture, dust, and harsh environmental conditions. The connectors are supplied with pre-mounted grommets and interfacial seals, ensuring consistent sealing performance without additional assembly steps.
From a performance perspective, the series supports operating voltages up to 500 V and current ratings up to 15 A per contact, while maintaining generous creepage and clearance distances for enhanced electrical safety. The robust thermoplastic housing, combined with a stainless steel latch mechanism, delivers a secure locking system with an audible “click”, ensuring reliable mating even in high-vibration environments.
The SMS IP Series is also designed to meet stringent railway fire, smoke, and safety standards, including EN 45545 compliance, making it suitable for safety-critical applications such as lighting systems, control units, and onboard electronics. Its wide operating temperature range and resistance to shock, vibration, and corrosive elements further reinforce its suitability for harsh industrial and transport applications.
Overall, the SMS IP range provides a lightweight, compact, and cost-effective interconnect solution, combining sealing performance, safety compliance, and ease of installation in a versatile connector system. With multiple configurations available (including 3, 6, and 12-way layouts), it offers a flexible solution for a wide variety of cable-to-cable and equipment integration requirements.
Other Souriau Trim Trio® series include the SMS, UTP, UTG, UTS, UTO, UTSX, UTGX, UTOX and UTL Series.
Many of the circular options derive from MIL-DTL-26482 Series 1 or 2 connectors and have common compatible interfaces.
For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001
- No. of Contacts: 3-12
- Locking Mechanism: Latch
- Contact Termination: Crimp
- Wire Gauge Max: 2.50mm²
- Cable Diameter Range: NA
- Connector Types: Cable to Cable, Cable to Panel
- Max. Voltage: UL, CSA, IEC Ratings Available on Request
- Max. Current: UL, CSA, IEC Ratings Available on Request
- Ingress Protection Max: IP67
- Pre-wired Options: No
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances

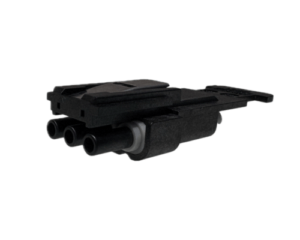

SMS3PIP20
3 Way Plug Connector for Socket Contacts, IP20
SMS3PIP67
3 Way Plug Connector for Socket Contacts, IP66 & IP67

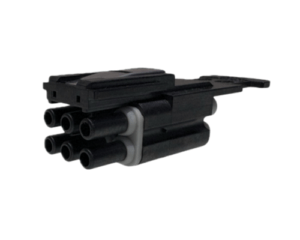

SMS6PIP20
6 Way Plug Connector for Socket Contacts, IP20
SMS6PIP67
6 Way Plug Connector for Socket Contacts, IP66 & IP67
SMS12PIP20
12 Way Plug Connector for Socket Contacts, IP20
SMS12PIP67
12 Way Plug Connector for Socket Contacts, IP66 & IP67
SMS3PIP20K01
3 Way Plug Connector with Crimp Socket Contacts, IP20

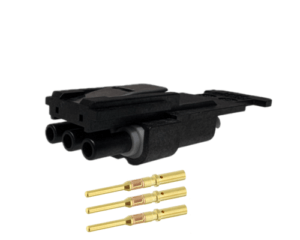

SMS3PIP67K01
3 Way Plug Connector with Crimp Socket Contacts, IP66 & IP67
SMS6PIP20K01
6 Way Plug Connector with Crimp Socket Contacts, IP20

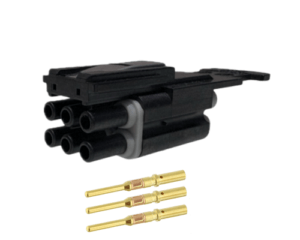

SMS6PIP67K01
6 Way Plug Connector with Crimp Socket Contacts, IP66 & IP67

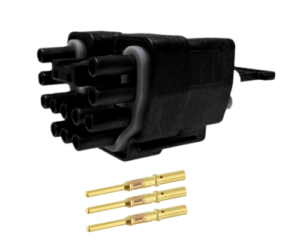

SMS12PIP20K01
12 Way Plug Connector with Crimp Socket Contacts, IP20
SMS12PIP67K01
12 Way Plug Connector with Crimp Socket Contacts, IP66 & IP67
SMS3PIP20K02
3 Way Plug Connector with Crimp Socket Contacts, IP20
SMS3PIP67K02
3 Way Plug Connector with Crimp Socket Contacts, IP66 & IP67
SMS6PIP20K02
6 Way Plug Connector with Crimp Socket Contacts, IP20
SMS6PIP67K02
6 Way Plug Connector with Crimp Socket Contacts, IP66 & IP67
SMS12PIP20K02
12 Way Plug Connector with Crimp Socket Contacts, IP20
SMS12PIP67K02
12 Way Plug Connector with Crimp Socket Contacts, IP66 & IP67

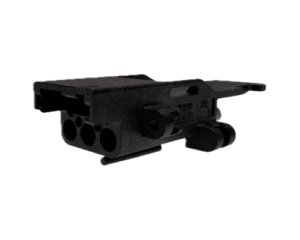

SMS3RIP20
3 Way Receptacle Connector for Pin Contacts, IP20
SMS3RIP67
3 Way Receptacle Connector for Pin Contacts, IP66 & IP67

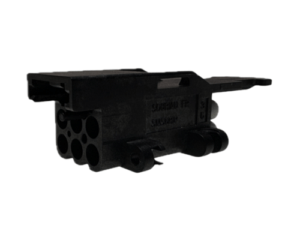

SMS6RIP20
6 Way Receptacle Connector for Pin Contacts, IP20
SMS6RIP67
6 Way Receptacle Connector for Pin Contacts, IP66 & IP67

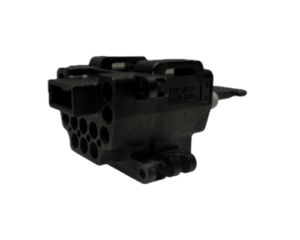

SMS12RIP20
12 Way Receptacle Connector for Pin Contacts, IP20
SMS12RIP67
12 Way Receptacle Connector for Pin Contacts, IP66 & IP67
