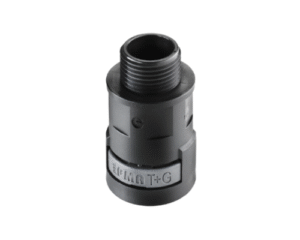

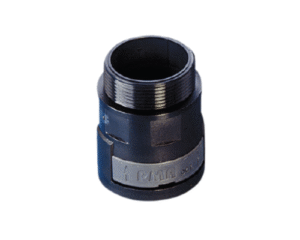

PMA PMAFIX Series

Large range of connectors for PMA conduits with the patented PMA safety clip system.

Connectors are available with a range of thread types, design styles and with IP66 or IP68/IP69K ingress protection (when static).

IP66 connectors are fitted with a pre- installed universal safety clip which ensures a quick “push-in” installation. IP68 connectors for increased requirements will be delivered with a special conduit seal cap.

The new PMAFIX IP68GT fittings combine the simplest push-in assembly with the highest sealing performance.

This product line offers solutions that meet the highest expectations: IP66 & IP68 / IP69K in static state.

It is based on a perfected system technology that makes installation easy. You can choose from a very large, varied range of connectors and conduit which have demonstrated their dependability in all types of applications for more than 30 years.

For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.

Material

• Fittings made from specially formulated polyamide 6
• Threads made from nickel-plated brass or polyamide 6
• Self-extinguishing
• Halogen free, REACH + ROHS compliant
• Very good chemical properties
• Temperature range: –40 °C to +105 °C, short-term to + 160 °C

Characteristics

• Excellent conduit pull-out strength
• High impact resistance
• Vibration-proof connection to PMA corrugated conduits
• Fits conduit profiles – fine (T) and coarse (G)
• To avoid accidental opening, disassembling only possible with a screwdriver

Electrical Notes

See literature for derating curves

Safety Notes

Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury

Ingress Protection Notes

Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise

Additional accessories may also be required to maintain IP rating in some instances
