PMA Conduits

ABB’s PMA mono and multilayer conduits fulfil high technical demands.

The series offers more than 6,500 products and is tried and trusted by UK electrical installers, electricians and electrical contractors to protect end users critical power and data cabling.

The high-quality products have an excellent reputation, particularly for building installations, automation, railway, mechanical engineering and shipbuilding applications.

Conduit sizes range from 6mm to 125mm diameters, from lightweight to heavyweight and from pliable to highly flexible.

Many conduits are specially approved, e.g. CSA, UL Recognition, NFR, SNCF, DB etc.

The wide selection of conduit choices includes;

PMAFLEX
This line, best-selling and very popular, offers more than 30 different conduit types for a variety of cable protection applications.

PMAFLEX Pro
Conduits for previously unattained performance levels.

PMAFLEX Multilayer

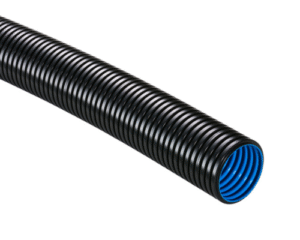

This range offers multilayer conduits for demanding technical applications and special requirements. The new PMAFLEX multilayer conduits (X-Series) are based upon advanced Multi-Layer-Extrusion technology allowing the manufacture of three layer corrugated conduits combining the best characteristics of different materials on inner and outer layers.

PMA Divisible System
Divisible conduits for repairs, retrofit and pre-loomed applications.

PMA Smart Line
PMA Conduits with an excellent price/performance ratio for various applications.

For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this PMA Conduits range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.

• Colour: Grey, Black, Blue, Black-Blue, Black-Green, Black-Orange, Black-Red, Black-Yellow, Orange-Green
• Profile: Fine, Coarse
• Sizes: 6-125mm
• Temperature Range: -100 to 170°C
• Approvals: UL, NSF, ECOLAB, EX, IEC, IECEX
• Material: Polyamide, Polypropylene, Polyetherimide, Polyurethane, PVDF
• Types: Flexible, Very Flexible, Highly Flexible
• Durability: Light-Duty, Medium-Duty, Heavy-Duty, Very Heavy-Duty

Electrical Notes

See literature for derating curves

Safety Notes

Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury

Ingress Protection Notes

Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise

Additional accessories may also be required to maintain IP rating in some instances
