Mennekes wall‑mounted socket connectors provide reliable, high‑performance industrial power distribution with ratings from 16A to 125A and options in 3‑pole, 4‑pole, and 5‑pole configurations.
Built for tough environments, they offer robust IP44 & IP67 protection, ensuring resistance to dust, water, and heavy‑duty cleaning which is ideal for manufacturing, logistics, transport, and food‑processing facilities.
Featuring durable industrial housings and the choice of traditional screw terminals or Mennekes’ innovative TwinCONTACT technology, these sockets enable fast, safe, and secure installation.
Advanced models, such as the DUOi switched & interlocked range, add enhanced safety with mechanical interlocks, LED voltage indicators, and easy‑access installation features.
All units also incorporate X‑CONTACT® technology for improved conductivity, reduced insertion force, and long‑term heat resistance making them a trusted choice for high‑demand industrial applications worldwide.
For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.
- No. of Contacts: 3-5
- Locking Mechanism: Push-fit, Locking Ring
- Contact Termination: Screw, Spring
- Wire Gauge Max: 70.00mm²
- Max. Voltage: 110-500V
- Max. Current: 16-125A
- Ingress Protection Max: IP44, IP67
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
Mennekes wall‑mounted socket connectors provide reliable, high‑performance industrial power distribution with ratings from 16A to 125A and options in 3‑pole, 4‑pole, and 5‑pole configurations.
Built for tough environments, they offer robust IP44 & IP67 protection, ensuring resistance to dust, water, and heavy‑duty cleaning which is ideal for manufacturing, logistics, transport, and food‑processing facilities.
Featuring durable industrial housings and the choice of traditional screw terminals or Mennekes’ innovative TwinCONTACT technology, these sockets enable fast, safe, and secure installation.
Advanced models, such as the DUOi switched & interlocked range, add enhanced safety with mechanical interlocks, LED voltage indicators, and easy‑access installation features.
All units also incorporate X‑CONTACT® technology for improved conductivity, reduced insertion force, and long‑term heat resistance making them a trusted choice for high‑demand industrial applications worldwide.
For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.
- No. of Contacts: 3-5
- Locking Mechanism: Push-fit, Locking Ring
- Contact Termination: Screw, Spring
- Wire Gauge Max: 70.00mm²
- Max. Voltage: 110-500V
- Max. Current: 16-125A
- Ingress Protection Max: IP44, IP67
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
103
4 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, 16A, 110V/White & Yellow Type, IP44
101

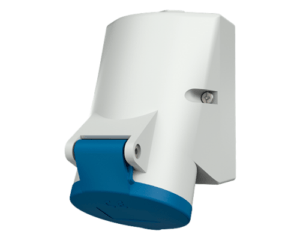

3 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, 16A, 230V/White & Blue Type, IP44
104
4 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, 16A, 230V/White & Blue Type, IP44
110
5 Way Female Surface Mount Panel Connector with Screw Contacts & integrated Protection Cover, 16A, 230V/White & Blue Type, IP44
102

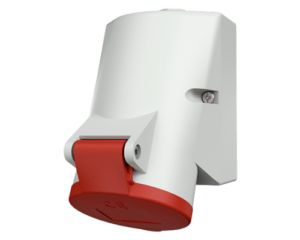

3 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, 16A, 400V/White & Red Type, IP44
105
4 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, 16A, 400V/White & Red Type, IP44
111
5 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, 16A, 400V/White & Red Type, IP44
106

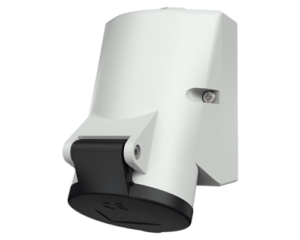

4 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, 16A, 500V/White & Black Type, IP44
2000
5 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, 16A, 500V/White & Black Type, IP44
2169

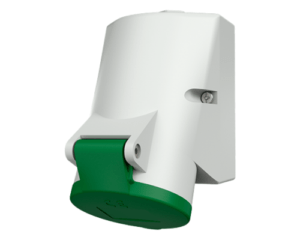

3 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, 16A, 50-500V/White & Green Type, IP44
107
4 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, 16A, 50-500V/White & Green Type, IP44
2241
3 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, 16A, 50-500V/White & Green Type, IP44
2199
5 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, 16A, 50-500V/White & Green Type, IP44
3030

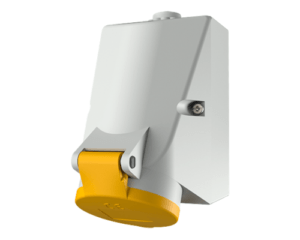

4 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, 16A, 110V/White & Yellow Type, IP44
1420
3 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, 32A, 110V/White & Yellow Type, IP44
1423
4 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, 32A, 110V/White & Yellow Type, IP44
3034

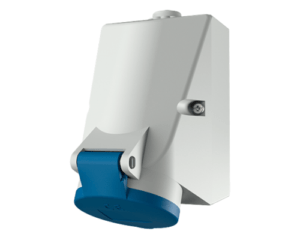

4 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, 16A, 230V/White & Blue Type, IP44
3045
5 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, 16A, 230V/White & Blue Type, IP44
1421
3 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, 32A, 230V/White & Blue Type, IP44
1424
4 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, 32A, 230V/White & Blue Type, IP44
1556
5 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, 32A, 230V/White & Blue Type, IP44
1418
4 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, 16A, 400V/White & Red Type, IP44
1419
5 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, 16A, 400V/White & Red Type, IP44
1422
3 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, 32A, 400V/White & Red Type, IP44
