Mennekes wall‑mounted socket connectors provide reliable, high‑performance industrial power distribution with ratings from 16A to 125A and options in 3‑pole, 4‑pole, and 5‑pole configurations.
Built for tough environments, they offer robust IP44 & IP67 protection, ensuring resistance to dust, water, and heavy‑duty cleaning which is ideal for manufacturing, logistics, transport, and food‑processing facilities.
Featuring durable industrial housings and the choice of traditional screw terminals or Mennekes’ innovative TwinCONTACT technology, these sockets enable fast, safe, and secure installation.
Advanced models, such as the DUOi switched & interlocked range, add enhanced safety with mechanical interlocks, LED voltage indicators, and easy‑access installation features.
All units also incorporate X‑CONTACT® technology for improved conductivity, reduced insertion force, and long‑term heat resistance making them a trusted choice for high‑demand industrial applications worldwide.
For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.
- No. of Contacts: 3-5
- Locking Mechanism: Push-fit, Locking Ring
- Contact Termination: Screw, Spring
- Wire Gauge Max: 70.00mm²
- Max. Voltage: 110-500V
- Max. Current: 16-125A
- Ingress Protection Max: IP44, IP67
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
Mennekes wall‑mounted socket connectors provide reliable, high‑performance industrial power distribution with ratings from 16A to 125A and options in 3‑pole, 4‑pole, and 5‑pole configurations.
Built for tough environments, they offer robust IP44 & IP67 protection, ensuring resistance to dust, water, and heavy‑duty cleaning which is ideal for manufacturing, logistics, transport, and food‑processing facilities.
Featuring durable industrial housings and the choice of traditional screw terminals or Mennekes’ innovative TwinCONTACT technology, these sockets enable fast, safe, and secure installation.
Advanced models, such as the DUOi switched & interlocked range, add enhanced safety with mechanical interlocks, LED voltage indicators, and easy‑access installation features.
All units also incorporate X‑CONTACT® technology for improved conductivity, reduced insertion force, and long‑term heat resistance making them a trusted choice for high‑demand industrial applications worldwide.
For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.
- No. of Contacts: 3-5
- Locking Mechanism: Push-fit, Locking Ring
- Contact Termination: Screw, Spring
- Wire Gauge Max: 70.00mm²
- Max. Voltage: 110-500V
- Max. Current: 16-125A
- Ingress Protection Max: IP44, IP67
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances

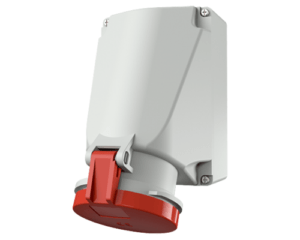

1141A
4 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, 63A, 400V/White & Red Type, IP44
1145A
5 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, 63A, 400V/White & Red Type, IP44

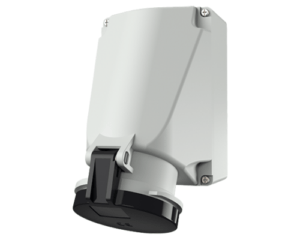

1142A
4 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, 63A, 500V/White & Black Type, IP44

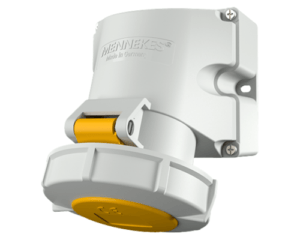

9300
3 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, Rotatable Base, 16A, 110V/White & Yellow Type, IP67
9320
4 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, Rotatable Base, 16A, 110V/White & Yellow Type, IP67
9350
3 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, Rotatable Base, 32A, 110V/White & Yellow Type, IP67
9370
4 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, Rotatable Base, 32A, 110V/White & Yellow Type, IP67
9380
5 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, Rotatable Base, 32A, 110V/White & Yellow Type, IP67

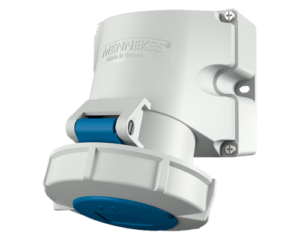

9301
3 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, Rotatable Base, 16A, 230V/White & Blue Type, IP67
9321
4 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, Rotatable Base, 16A, 230V/White & Blue Type, IP67
9341
5 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, Rotatable Base, 16A, 230V/White & Blue Type, IP67
9351
3 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, Rotatable Base, 32A, 230V/White & Blue Type, IP67
9371
4 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, Rotatable Base, 32A, 230V/White & Blue Type, IP67
9381
5 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, Rotatable Base, 32A, 230V/White & Blue Type, IP67

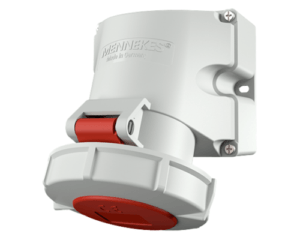

9302
3 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, Rotatable Base, 16A, 400V/White & Red Type, IP67
9322
4 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, Rotatable Base, 16A, 400V/White & Red Type, IP67
9342
5 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, Rotatable Base, 16A, 400V/White & Red Type, IP67
9352
3 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, Rotatable Base, 32A, 400V/White & Red Type, IP67
9372
4 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, Rotatable Base, 32A, 400V/White & Red Type, IP67
9382
5 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, Rotatable Base, 32A, 400V/White & Red Type, IP67

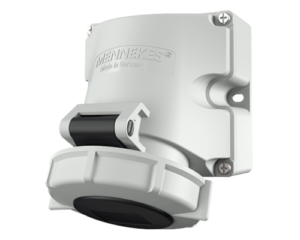

9323
4 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, Rotatable Base, 16A, 500V/White & Black Type, IP67
9373
4 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, Rotatable Base, 32A, 500V/White & Black Type, IP67

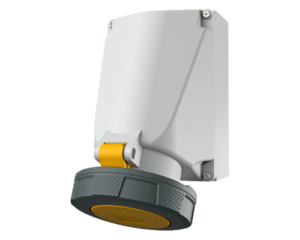

856
3 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, 63A, 110V/White & Yellow Type, IP67
130A
4 Way Female Surface Mount Panel Connector with Screw Contacts & Integrated Protection Cover, 63A, 110V/White & Yellow Type, IP67
