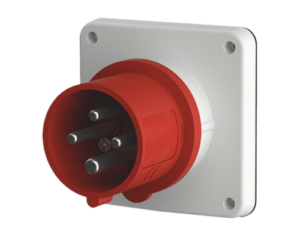

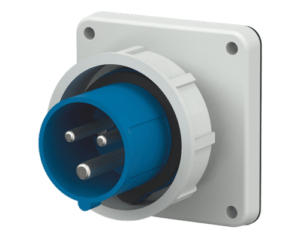

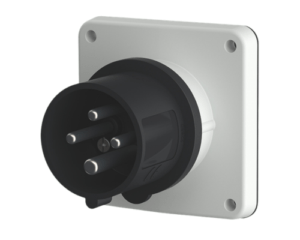

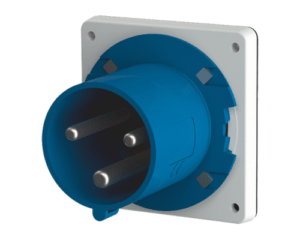

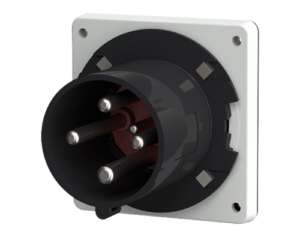

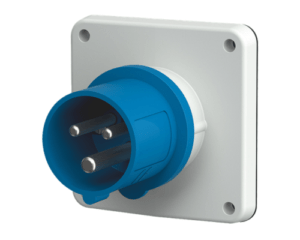

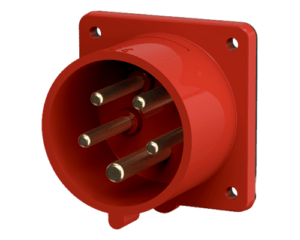

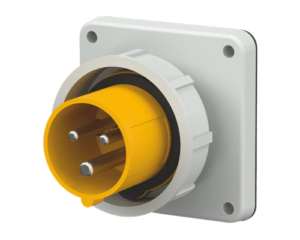

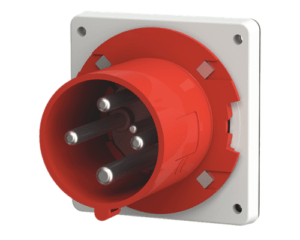

Mennekes panel‑mounted inlet connectors provide a rugged, reliable and standards‑compliant power‑entry solution for industrial equipment, control panels and fixed installations, manufactured in accordance with DIN VDE 0623 and IEC/EN 60309‑2 for global compatibility and long‑term safety.
The range spans 16-125A and supports voltages from 50–500V, with 3, 4 and 5‑pole options and industry‑standard clock positions for straightforward integration worldwide.
A variety of flange sizes allow easy fitment into varied panel cut‑outs.
Available in IP44 and IP67 ratings, these inlets perform reliably in both indoor and harsh outdoor environments, with IP67 versions protecting against dust and temporary immersion.
Many models feature nickel‑plated contacts or high‑temperature‑resistant carriers, ensuring durability and stable electrical performance under heavy loads. All variants use secure screw‑terminal connection technology, with higher‑rated models offering pilot contacts for monitoring or safety interlocking.
Both straight and angled versions support flexible installation in tight or specialised layouts. Many models carry third‑party certifications, including VDE, EAC, and CQC, confirming compliance with international electrical safety standards and suitability for globally deployed equipment.
For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.
- No. of Contacts: 3-5
- Locking Mechanism: Push-fit, Locking Ring
- Contact Termination: Screw
- Wire Gauge Max: 70.00mm²
- Max. Voltage: 110-500V
- Max. Current: 16-125A
- Ingress Protection Max: IP44, IP67
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
