Series Description
Got a question about this product?Compact circular connector system with industry standard IEC 61076-2-101 M12x1 screw locking interface.
M12 A-Coded connectors offer pin-counts of 3 to 12 with a current carrying capacity of up to 4A per contact.
The series caters for cable OD’s of up to 8mm, has a wire gauge max. of 0.75mm² and is capable of offering IP67 ingress protection in mated state or with the use of a protection cover.
Downloads
Technical Specification
- Cable Diameter 4.7mm
- Cable Jacket Colour Black
- Cable Jacket Material PUR
- Cable Jacket Thickness Not Specified
- Voltage Rating 300V
- Drainwire No
- EMC Shield No

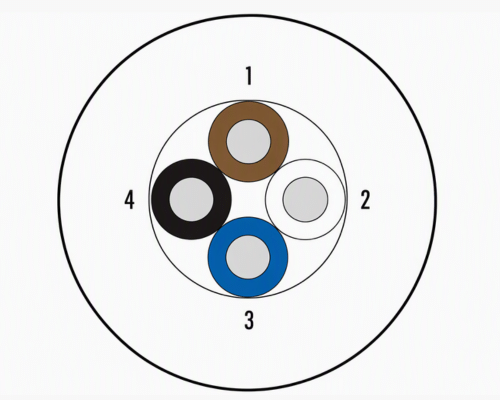

- Number of Wires Conductors 4
- Ripcord No
- Stranding Type Stranded
- Supplied Length 100m
- Temperature Range -50 to +80°C (fixed), -25 to +80°C (flex)
- Wire Gauge Cross Sectional Area 0.34mm²
- Wire Stand Size Not Specified
