Lumberg Automation M12 A-Coded Series

A range of miniature industry standard circular sensor and automation connectors with screw-lock coupling conforming to IEC 61076-2-101.

Lumberg Automation M12 connectors are available in panel receptacle, field attachable and overmoulded cable plugs in 3, 4, 5, 8 and 12 way variants.

The connectors are renowned for their practicality and boast a compact and neat shell, while they are highly application-friendly due to the variety of options at the user’s disposal. They are highly regarded among engineers and can be used in the harshest of environments with a sealing to IP67 in mated conditions.

Among the benefits of field attachable cable connectors are improved flexibility and the capacity for users to wire them up on site using screw termination cavities. This means there is no need for any expensive tooling.

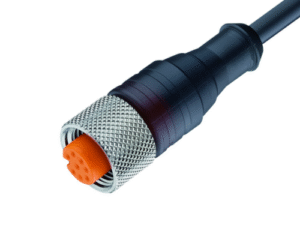

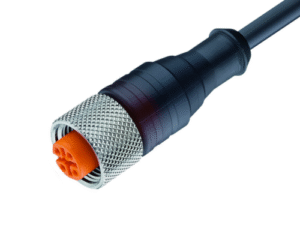

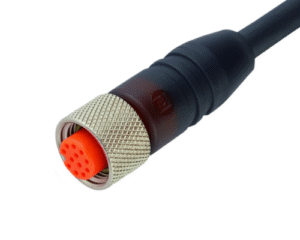

Overmoulded cable plugs have the option of EMC shielding or stainless steel shells and most variants can be supplied in straight or angled orientation.

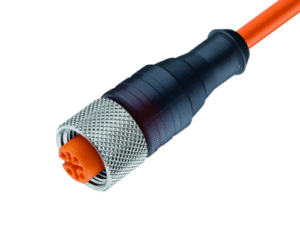

Available in both black PUR and orange PVC jacket, the overmoulded cable setups – which provide excellent protection from dirt and moisture – have multiple standard lengths, including 2, 5 and 10m.

For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001

• No. of Contacts: 3-12
• Locking Mechanism: Screw
• Contact Termination: Screw, Dip-Solder
• Wire Gauge Max: 0.75mm²
• Cable Diameter Range: 3-9mm
• Connector Types: Cable to Panel, Cable to Cable
• Max. Voltage: 30-240V
• Max. Current: 2-4A
• Ingress Protection Max: IP67
• Pre-wired Options: Yes

Electrical Notes

See literature for derating curves

Safety Notes

Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury

Ingress Protection Notes

Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise

Additional accessories may also be required to maintain IP rating in some instances
