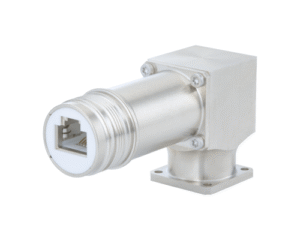

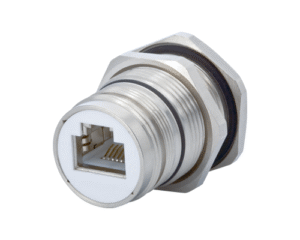

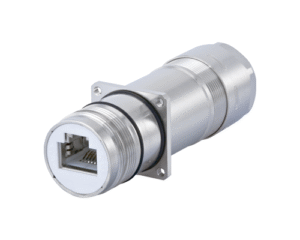

HUMMEL M23 RJ45 Series

Robust circular connector shells allowing the housing of RJ45 Ethernet connectivity in harsh environments.

The HUMMEL RJ45 system uses circular screw locking shells with an M23x1 thread type for a rugged and secure connection.

The metal shells are constructed from brass Alloy, Die cast with Nickel Plating and offer IP67 and IP69K ingress protection.

A wide range of shell variants are available giving the user numerous options on both the panel and cable to meet their specific needs.

For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.

• No. of Contacts: 4-10
• Locking Mechanism: Screw
• Housing: Brass Alloy, Die Cast
• Housing Surface: Nickel Plated
• Cable Diameter Range: 3-7mm
• Connector Types: Cable to Panel, Cable to Cable
• Ingress Protection Max: IP67, IP69K
• Moulded Cable Option: No

Electrical Notes

See literature for derating curves

Safety Notes

Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury

Ingress Protection Notes

Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise

Additional accessories may also be required to maintain IP rating in some instances
