HUMMEL M16 Signal & Power Series

For use in the harshest of environments, the M16 Signal series from renowned manufacturer HUMMEL boasts extremely robust waterproof circular connectors available in either straight or angled orientation, and also includes a number of cable clamping ranges.

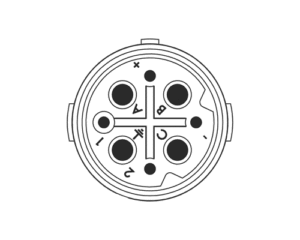

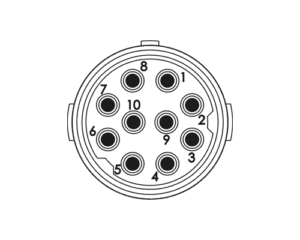

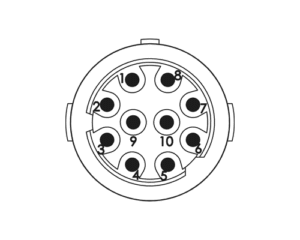

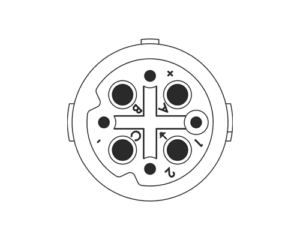

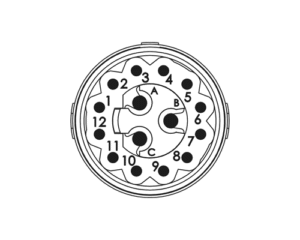

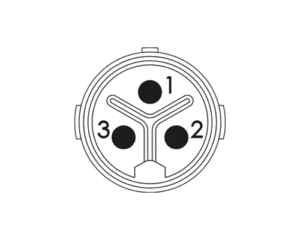

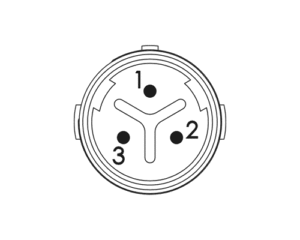

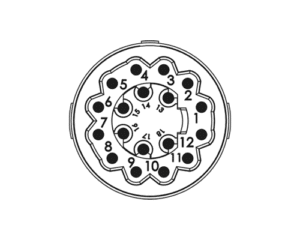

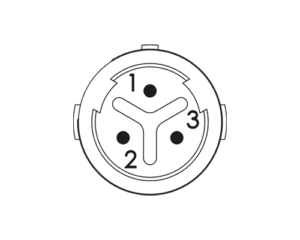

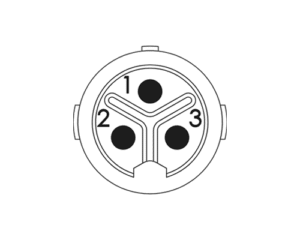

The M16 system is able to provide a constant, ruggedised sealed connection as it is sealed to IP67 and IP69K in mated condition. A variety of pin counts are also available, ranging from 3 to 18, with a current capacity of up to 20A.

In order to bring down inventory levels and to enable users to tailor setup to their own specifications and requirements, individual part numbers are included on:

• Shells
• Inserts
• Contacts

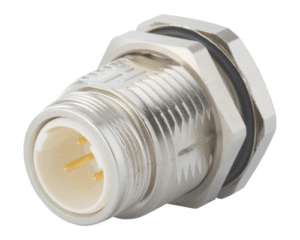

The panel connections feature both front and rear mount options. They also include jam-nut and square flange, and are available either with or without built-in rear cable strain relief.

For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.

• No. of Contacts: 3-18
• Locking Mechanism: Screw, Twist Lock
• Contact Termination: Crimp, Dip-Solder
• Wire Gauge Max: 2.50mm²
• Cable Diameter Range: 2-11mm
• Connector Types: Cable to Panel, Cable to Cable
• Max. Voltage: 24-630V
• Max. Current: 3-20A
• Ingress Protection Max: IP67, IP69K
• Pre-wired Options: On Request

Electrical Notes

See literature for derating curves

Safety Notes

Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury

Ingress Protection Notes

Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise

Additional accessories may also be required to maintain IP rating in some instances
