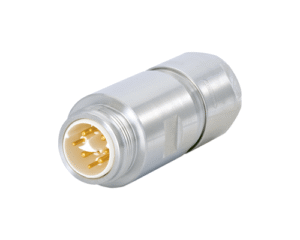

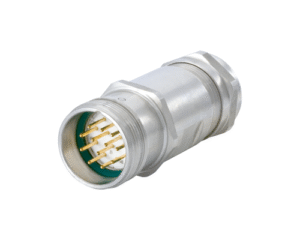

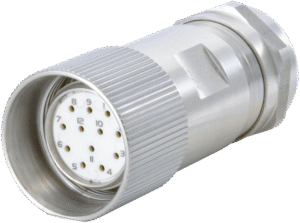

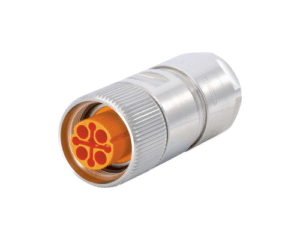

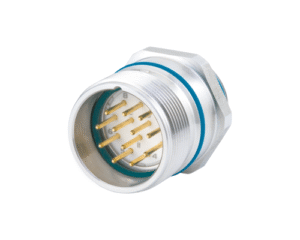

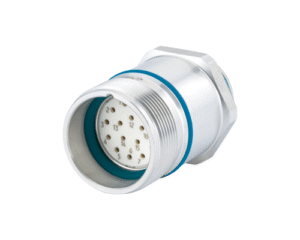

HUMMEL M16 & M23 Stainless Steel Connector Housing Series

HUMMEL’s stainless steel housings are designed to be used in place of the standard options with Nickel Plated surfaces for clean or dangerous environments such as the food and nuclear industries.

These stainless steel housings can be used with any of the multiway inserts seen in the M16 signal, M23 signal and M23 power series seen elsewhere in the catalogue.

For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.

• No. of Contacts: 3-19
• Locking Mechanism: Screw
• Contact Termination: Crimp, Solder, Dip-Solder
• Wire Gauge Max: 4.00mm²
• Cable Diameter Range: 3-17mm
• Connector Types: Cable to Panel, Cable to Cable
• Max. Voltage: 24-630V
• Max. Current: 3-28A
• Ingress Protection Max: IP67, IP69K
• Moulded Cable Option: On Request

Electrical Notes

See literature for derating curves

Safety Notes

Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury

Ingress Protection Notes

Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise

Additional accessories may also be required to maintain IP rating in some instances
