HUMMEL M12 Power Series

The robust circular waterproof M12 Power connector series from HUMMEL is ideal for use in tough environments.

Sealed to IP67 and IP69K in mated condition, the M12 system provides a ruggedised sealed connection at all times.

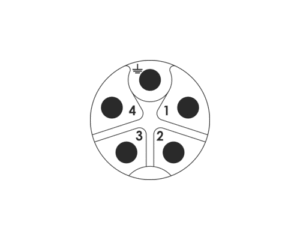

Available in 4 & 5 way and with a current carrying of up to 16A the range marks a milestone in miniaturisation. This circular connector is characterised by very high power transfer (up to 630V and 16A) combined with a compact design.

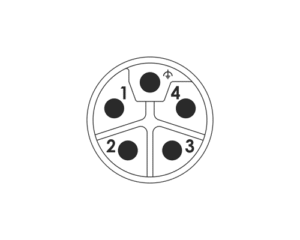

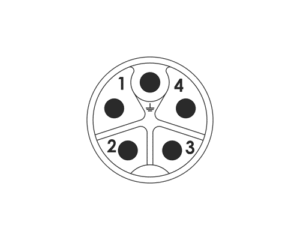

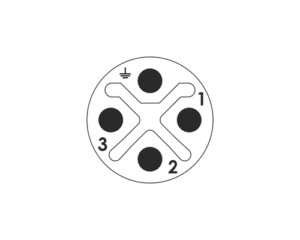

M12 Power works reliably in temperature ranges up to 125°C Celsius. K, L, S and T codings are available.

This connector type enables entirely new applications and capabilities. The range includes;

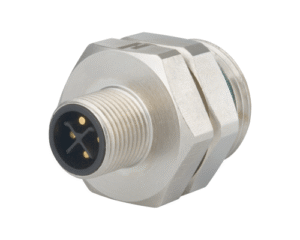

• Straight connectors, male and female thread

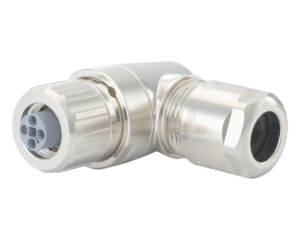

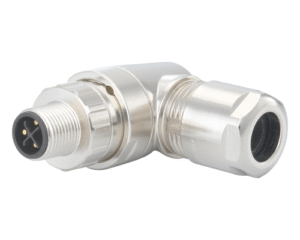

• Right angle connectors, male and female thread

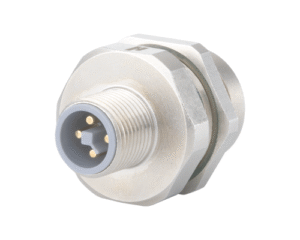

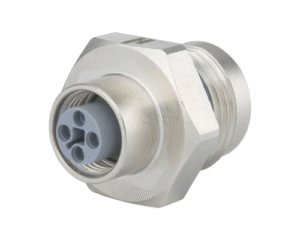

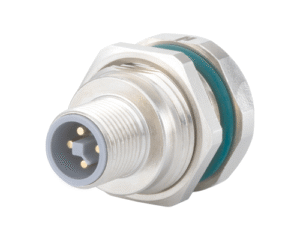

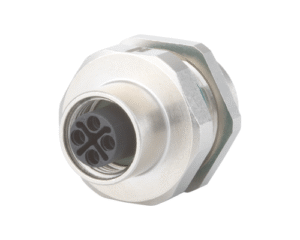

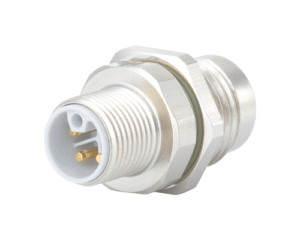

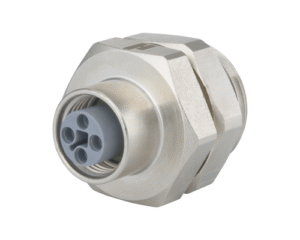

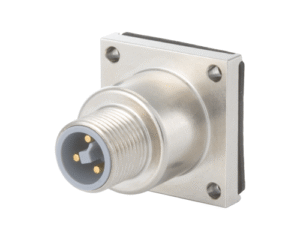

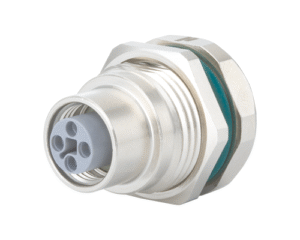

• Panel connectors
• Moulded cordsets

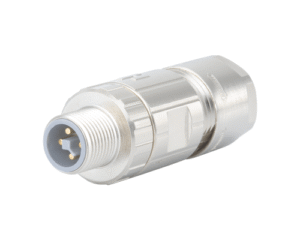

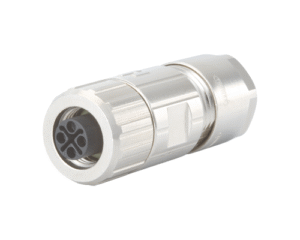

• Field attachable plugs
• Accessories

Inventory levels can be effectively reduced thanks to inserts, contacts and shells containing their own individual part numbers, which can also enable users to adjust the setup to meet their specific requirements.

For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.

• No. of Contacts: 4 & 5
• Locking Mechanism: Screw
• Contact Termination: Crimp, Screw
• Wire Gauge Max: 2.50mm²
• Cable Diameter Range: 3-11mm
• Connector Types: Cable to Panel, Cable to Cable
• Max. Voltage: 63-630V
• Max. Current: 12-16A
• Ingress Protection Max: IP65, IP67, IP69K
• Pre-wired Options: Yes

Electrical Notes

See literature for derating curves

Safety Notes

Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury

Ingress Protection Notes

Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise

Additional accessories may also be required to maintain IP rating in some instances
