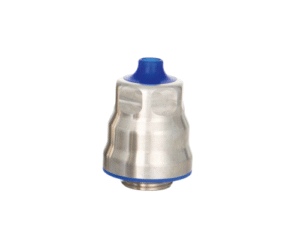

HUMMEL Hygienic Cable Glands have been specifically designed for use in applications where the settling of microorganisms and dirt must be avoided and prevented. Examples include pharmaceutical, food and chemical industries as well as in bio and cleanroom technology.
The Hygienic design range has major advantages over regular types which are industry norm. HUMMEL cable glands are characterized by an extremely high strain-relief, provide a 360° connection of the cable shielding and protect the sealing insert from twisting during assembly.
The housings of the hygienic cable glands are without corners and edges as well as exposed external threads and the surface roughness is smaller than Ra 0,8 µm which makes them very easy to clean. Such characteristics make the cleaning time of the gland much shorter than what it would be if it had sharp corners or edges and allows for low maintenance in applications which requires the prevention of bacteria.
The enclosures are made of high-quality stainless steel (EN 1.4404 / AISI 316L) which are paired with VMQ silicone sealing which assists the fulfilment of the VDMA Riboflavin cleaning test.
These specific HSK-INOX-HD-Pro variants are ideally suited for foam-cleaning processes.
For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.
- Housing Material: Stainless Steel (1.4404 Grade)
- Temperature Rating: -40°C to +120°C
- Clamping Insert Material: VMQ
- Panel Seal Material: NBR
- Thread Types: Metric
- Cable Diameter Range: 3.5-18mm
- Ingress Protection: IP68
- EMC Shielding Capability: Yes
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
HUMMEL Hygienic Cable Glands have been specifically designed for use in applications where the settling of microorganisms and dirt must be avoided and prevented. Examples include pharmaceutical, food and chemical industries as well as in bio and cleanroom technology.
The Hygienic design range has major advantages over regular types which are industry norm. HUMMEL cable glands are characterized by an extremely high strain-relief, provide a 360° connection of the cable shielding and protect the sealing insert from twisting during assembly.
The housings of the hygienic cable glands are without corners and edges as well as exposed external threads and the surface roughness is smaller than Ra 0,8 µm which makes them very easy to clean. Such characteristics make the cleaning time of the gland much shorter than what it would be if it had sharp corners or edges and allows for low maintenance in applications which requires the prevention of bacteria.
The enclosures are made of high-quality stainless steel (EN 1.4404 / AISI 316L) which are paired with VMQ silicone sealing which assists the fulfilment of the VDMA Riboflavin cleaning test.
These specific HSK-INOX-HD-Pro variants are ideally suited for foam-cleaning processes.
For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.
- Housing Material: Stainless Steel (1.4404 Grade)
- Temperature Rating: -40°C to +120°C
- Clamping Insert Material: VMQ
- Panel Seal Material: NBR
- Thread Types: Metric
- Cable Diameter Range: 3.5-18mm
- Ingress Protection: IP68
- EMC Shielding Capability: Yes
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
1.740.1602.50
M16 Stainless Steel Cable Gland for Foam Cleaning, 5-10mm Cable Entry, Shieldable, IP68 (HSK-INOX-HD)
1.740.1202.50
M12 Stainless Steel Cable Gland for Foam Cleaning, 3.5-6.5mm Cable Entry, Shieldable, IP68 (HSK-INOX-HD)
1.740.2002.50
M20 Stainless Steel Cable Gland for Foam Cleaning, 10-14mm Cable Entry, Shieldable, IP68 (HSK-INOX-HD)
1.740.2502.50
M25 Stainless Steel Cable Gland for Foam Cleaning, 13-18mm Cable Entry, Shieldable, IP68 (HSK-INOX-HD)
