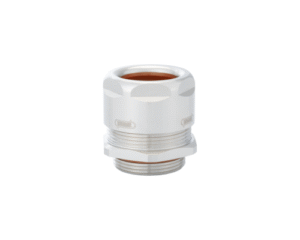

HUMMEL Extreme Temperature Cable Glands

HUMMEL have developed the VariaPro Temp range for use in environments where the temperatures are either extremely hot or extremely cold. These glands have been planned and designed in a way so they can withstand these extreme temperatures and still work efficiently and effectively for whichever process is being carried out. These glands are to be used in cold environments such as in the Arctic or in extreme temperatures like industrial forges or furnaces.

This gland has very different advantages to the rest of this range. This gland is made up of Nickel-Plated Brass. This material essentially hardens the surface of the gland which makes it tougher to break down. This enables the gland to be able to withstand freezing or boiling temperatures without cracking or showing any sign of damage.

The O-ring and clamping material is VMQ Silicone. This material has a long service life and is capable of withstanding extreme temperatures. This durable gland boasts an impressive temperature range of -60°C to 200°C.

For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.

• Housing Material: Nickel-Plated Brass
• Temperature Rating: -60°C to +200°C
• Clamping Insert Material: VMQ
• Panel Seal Material: VMQ
• Thread Types: Metric
• Cable Diameter Range: 2-54mm
• Ingress Protection: IP68
• EMC Shielding Capability: Yes

Electrical Notes

See literature for derating curves

Safety Notes

Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury

Ingress Protection Notes

Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise

Additional accessories may also be required to maintain IP rating in some instances
