The Hirschmann ST Series, with its robust and compact power features, is eminently suitable for power supply and signal transmission in industrial installations and mechanical engineering.
The ST series has become the de-facto market standard for the motors that operate blinds and awnings and is also frequently used in power supplies for moulding machines, medical applications and industrial lighting systems.
The series is available in 3, 4, 5 and 6 way with screw termination cavities for a swift installation. A crimp variant is also available for areas that require even further resistance to the effects of vibration.
The lever which locks a mating pair together guarantees a secure and robust connection and one that can be disengaged simply and efficiently.
The lever can be mounted on either the male or female and provides versatility for the user to customise their installation.
Cable connectors can be straight or angled and panel receptacles are available in both bulkhead and surface mount design.
Key features include:
- Available in 3 to 6 way variants (including PE)
- For voltages up to 400V and currents up to 16A
- Dust and spray water protection for high resistance
- Approved by VDE & UL for worldwide application
- Protection class up to IP54
For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.
- No. of Contacts: 3-6
- Locking Mechanism: Lever
- Contact Termination: Screw, Crimp
- Wire Gauge Max: 1.50mm²
- Cable Diameter Range: 4-10mm
- Connector Types: Cable to Panel, Cable to Cable
- Max. Voltage: 250-400V
- Max. Current: 6-16A
- Ingress Protection Max: IP20, IP54
- Moulded Cable Option: Yes
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
The Hirschmann ST Series, with its robust and compact power features, is eminently suitable for power supply and signal transmission in industrial installations and mechanical engineering.
The ST series has become the de-facto market standard for the motors that operate blinds and awnings and is also frequently used in power supplies for moulding machines, medical applications and industrial lighting systems.
The series is available in 3, 4, 5 and 6 way with screw termination cavities for a swift installation. A crimp variant is also available for areas that require even further resistance to the effects of vibration.
The lever which locks a mating pair together guarantees a secure and robust connection and one that can be disengaged simply and efficiently.
The lever can be mounted on either the male or female and provides versatility for the user to customise their installation.
Cable connectors can be straight or angled and panel receptacles are available in both bulkhead and surface mount design.
Key features include:
- Available in 3 to 6 way variants (including PE)
- For voltages up to 400V and currents up to 16A
- Dust and spray water protection for high resistance
- Approved by VDE & UL for worldwide application
- Protection class up to IP54
For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.
- No. of Contacts: 3-6
- Locking Mechanism: Lever
- Contact Termination: Screw, Crimp
- Wire Gauge Max: 1.50mm²
- Cable Diameter Range: 4-10mm
- Connector Types: Cable to Panel, Cable to Cable
- Max. Voltage: 250-400V
- Max. Current: 6-16A
- Ingress Protection Max: IP20, IP54
- Moulded Cable Option: Yes
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances

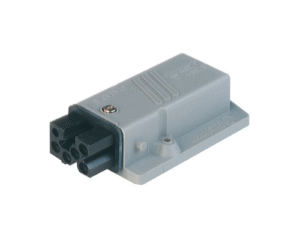

932511106
6 Way Female Flanged Angled Panel Connector with Crimp Contacts, IP54 (STAKAP 5 Grey)

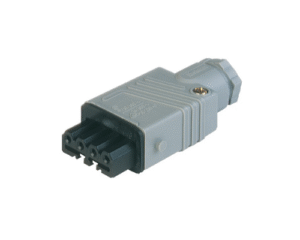

932533106
5 Way Female Cable Connector with Screw Contacts, 6-10mm Straight Cable Entry, IP54 (STAK 4 N Grey)
932514106

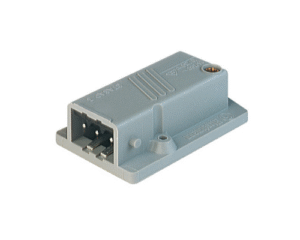

4 Way Male Flanged Angled Panel Connector with Screw Contacts, IP54 (STASAP 3 N Grey)
932513106

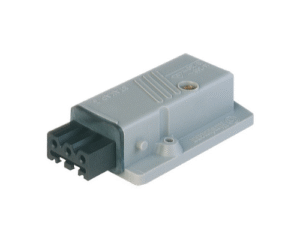

4 Way Female Flanged Angled Panel Connector with Screw Contacts, IP54 (STAKAP 3 N Grey)
934442106

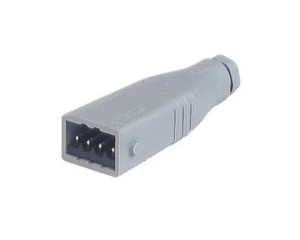

5 Way Male Cable Connector with Screw Contacts, 6-10mm Straight Cable Entry, IP54 (STAS 4 N Grey)

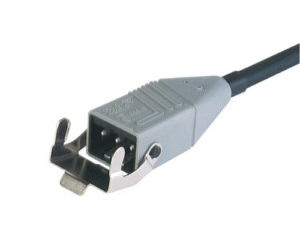

931300055
4 Way Single Ended Cable Assembly, Straight Male to Open End, 1m Cable with Black EPDM Jacket, IP54 (STAS 3 K 075 SI 1000mm Grey)
932578011

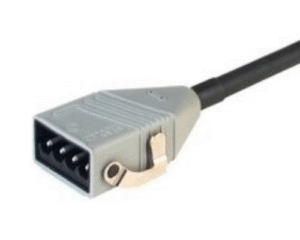

5 Way Single Ended Cable Assembly, Straight Male to Open End, 1m Cable with Black EPDM Jacket, IP54 (STAS 4 K 075 SI 1000mm Grey)
972246008

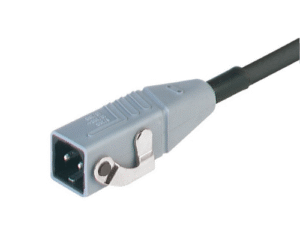

3 Way Single Ended Cable Assembly, Straight Male to Open End, 1m Cable with Black EPDM Jacket, IP54 (STAS 2 K 075 SI 1000mm Grey)
731726201
2,000 Piece Reel of 1.6mm Crimp Socket Contacts, Stamped & Formed Construction, Silver Plating, 0.50-1.50mm², Priced Per Contact (RBCB 162 Ag)
731725021

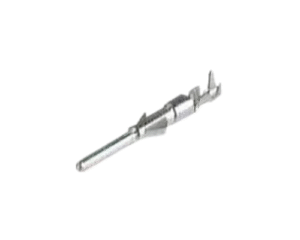

1.6mm Crimp Pin Contact, Stamped & Formed Construction, Silver Plating, 0.50-1.50mm² (RSC 162 Ag)
731724221

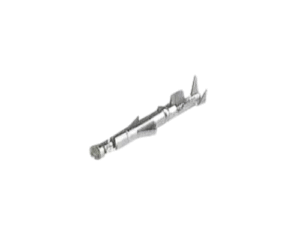

1.6mm Crimp Socket Contact, Stamped & Formed Construction, Silver Plating, 0.50-1.50mm² (RBC 162 Ag)
733384021
1.6mm Crimp Pin Contact, Stamped & Formed Construction, Silver Plating, 0.14-0.50mm² (RSC 162/1 Ag)
733383021
1.6mm Crimp Socket Contact, Stamped & Formed Construction, Silver Plating, 0.14-0.50mm² (RBC 162/1 Ag)
731727001
2,000 Piece Reel of 1.6mm Crimp Pin Contacts, Stamped & Formed Construction, Silver Plating, 0.50-1.50mm², Priced Per Contact (RSCB 162 Ag)
731726202
200 Piece Reel of 1.6mm Crimp Socket Contacts, Stamped & Formed Construction, Silver Plating, 0.50-1.50mm², Priced Per Contact (RBCB 162 Ag)
733385001
2,000 Piece Reel of 1.6mm Crimp Socket Contacts, Stamped & Formed Construction, Silver Plating, 0.14-0.50mm², Priced Per Contact (RBCB 162/1 Ag)

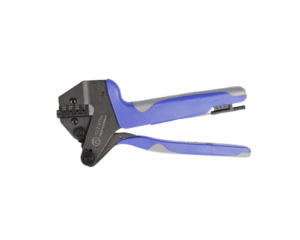

932507005
Crimp Tool for NR and ST Series 1.6mm Crimp Contacts (XZC 0704)
931812001

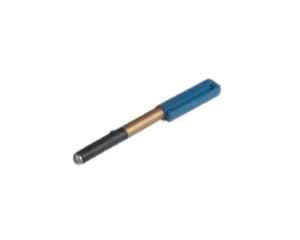

Extraction Tool for NR and ST Series 1.6mm Crimp Contacts (XWA 164)

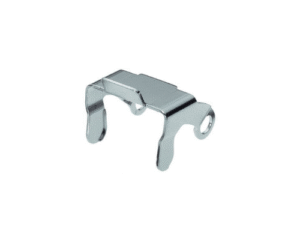

732045001
Safety Bracket for Hirschmann ST Series 4 & 6 Way Connectors (STASI 3)

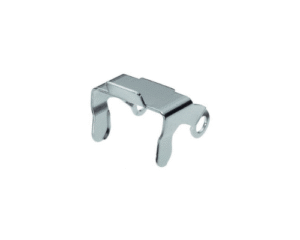

732044000
Safety Bracket for Hirschmann ST Series 3 Way Connectors (STASI 2)

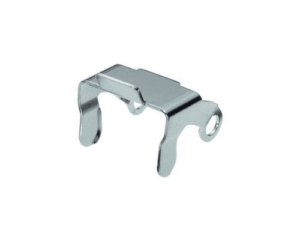

733449001
Safety Bracket for Hirschmann ST Series 5 Way Connectors (STASI 4)
