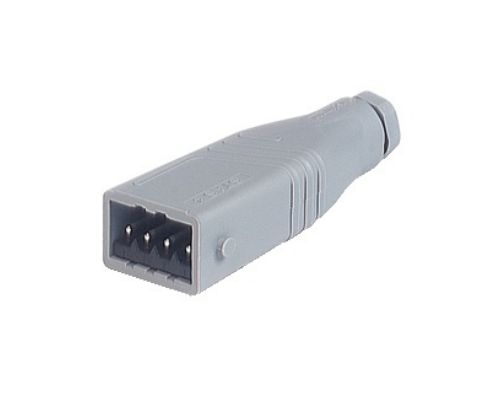

Image may be representative of a range of products, see literature to confirm.
Authorised Partner
of the industry’s leading manufacturers
Credit Accounts
to simplify the ordering process
Scheduled Orders
over a 12-month
period
Technical Expertise
in-house product
specialists
Personalised Support
designated Coordinators for your specific needs
Certification
ISO 9001 quality management system
Sales Description
Got a question about this product?Robust multi-pin rectangular connector system with lever locking mechanism.
ST connectors offer pin-counts from 3 to 6 with a current carrying capacity of up to 16A per contact.
The series caters for cable OD’s of up to 10mm, has a wire gauge max. of 1.50mm² and is capable of offering IP20 & IP54 ingress protection in mated state.
Technical Specification
- Approvals VDE, UL, SEV
- Backshell Included Yes
- Body Orientation Straight
- Connector Type Cable Connector
- Contact Plating Tin
- Contacts Included Yes
- Coupling Area Material Plastic
- Current Rating 10A AC/DC
- Voltage Rating 400V AC, 230V DC
- Electrical Notes See literature for derating curves
- Degree of Ingress Protection IP54
- EMC Sheilding Capability No
- Gender of Insert Male
- Housing Material Plastic
- Keyway/Coding Type Standard
- Locking System Lever
- Min. Mechanical Mating Cycles 50
- Max. Wire Gauge/Cross Sectional Area 1.50mm²
- Min. Cable Entry (mm) 6
- Max. Cable Entry (mm) 10
- Number of Ways 5
- Operating Temperature -30 to +90°C
- Positive Earth (PE) Yes
- Termination Method/Technology Screw
