Hirschmann ST Series

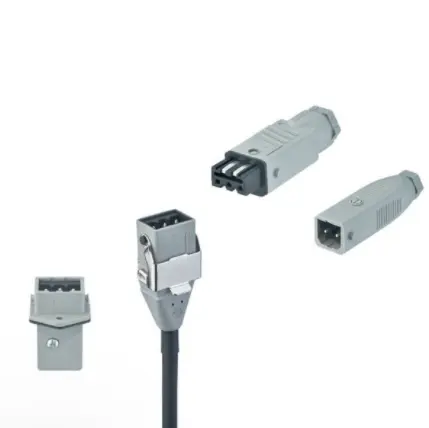

The Hirschmann ST Series, with its robust and compact power features, is eminently suitable for power supply and signal transmission in industrial installations and mechanical engineering.

The ST series has become the de-facto market standard for the motors that operate blinds and awnings and is also frequently used in power supplies for moulding machines, medical applications and industrial lighting systems.

The series is available in 3, 4, 5 and 6 way with screw termination cavities for a swift installation. A crimp variant is also available for areas that require even further resistance to the effects of vibration.

The lever which locks a mating pair together guarantees a secure and robust connection and one that can be disengaged simply and efficiently.

The lever can be mounted on either the male or female and provides versatility for the user to customise their installation.

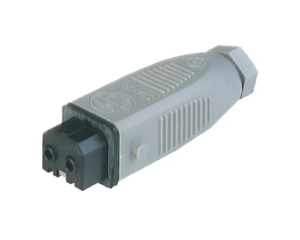

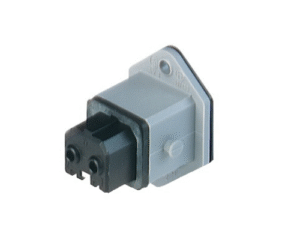

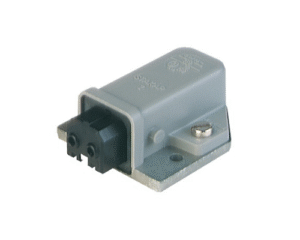

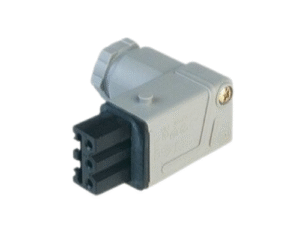

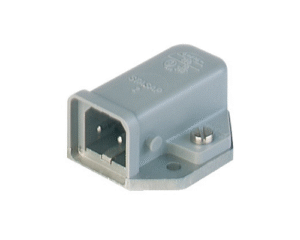

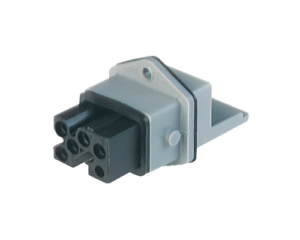

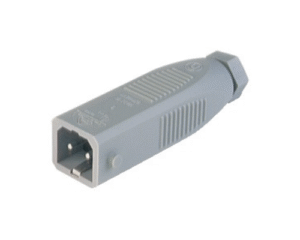

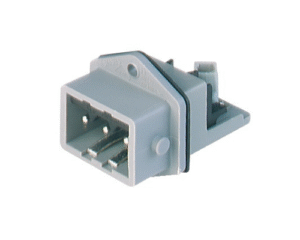

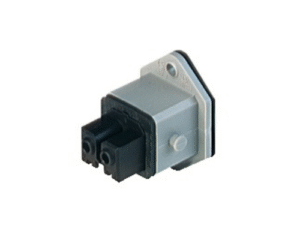

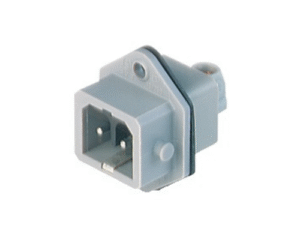

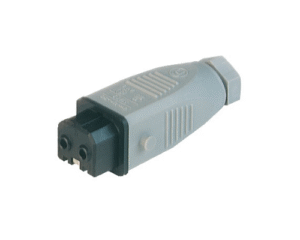

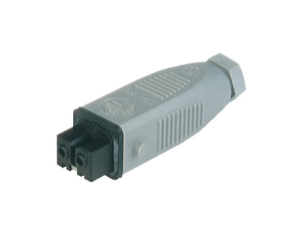

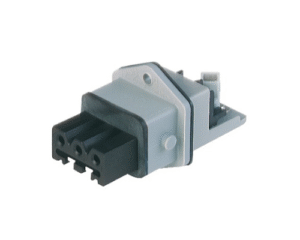

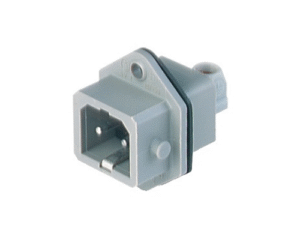

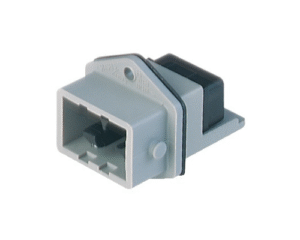

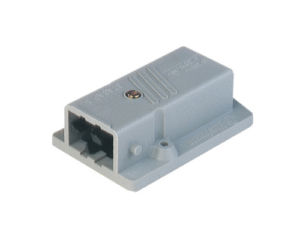

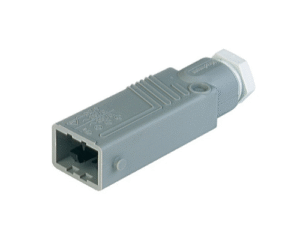

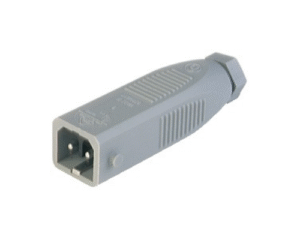

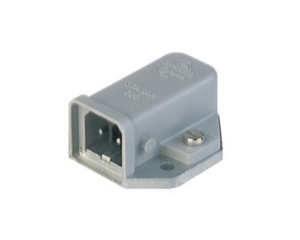

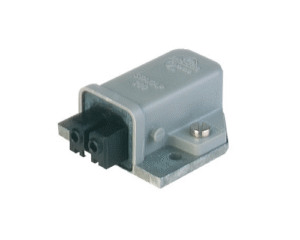

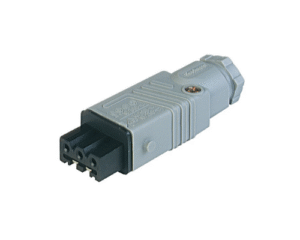

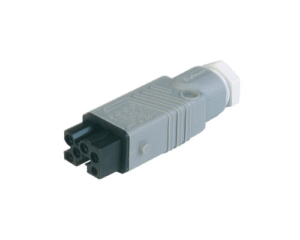

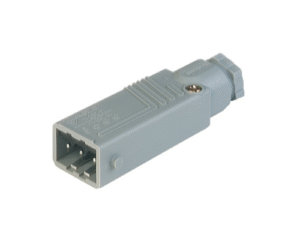

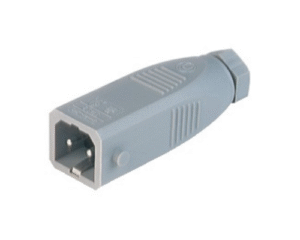

Cable connectors can be straight or angled and panel receptacles are available in both bulkhead and surface mount design.

Key features include:

• Available in 3 to 6 way variants (including PE)
• For voltages up to 400V and currents up to 16A
• Dust and spray water protection for high resistance
• Approved by VDE & UL for worldwide application
• Protection class up to IP54

For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.

• No. of Contacts: 3-6
• Locking Mechanism: Lever
• Contact Termination: Screw, Crimp
• Wire Gauge Max: 1.50mm²
• Cable Diameter Range: 4-10mm
• Connector Types: Cable to Panel, Cable to Cable
• Max. Voltage: 250-400V
• Max. Current: 6-16A
• Ingress Protection Max: IP20, IP54
• Moulded Cable Option: Yes

Electrical Notes

See literature for derating curves

Safety Notes

Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury

Ingress Protection Notes

Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise

Additional accessories may also be required to maintain IP rating in some instances
