The Hirschmann NR series is a range of robust circular connectors available in 7 & 12 way and with IP65 environmental protection.
The impact-proof fracture-proof, glass fibre-reinforced housings of the NR series offer a solid connection. With their highly robust characteristics, this circular connector system is able to excel and its compact design lends it to an array of applications.
The built in housings can be supplied with a flange if so desired or for installation in a variety of PG or metric threads and with freely selectable cable output.
Thanks to crimping technology, it is also possible to use in installations that are subject to a lot of vibrational stress.
Key features include:
- Available in 7 & 12 pin variants (including PE)
- For voltages up to 250V and currents up to 10A
- Selection of plastic or metal housings for permanent solutions
- High degree of transmission safety due to continuous shielding against electro-magnetic radiation
- Protection class IP65
For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.
- No. of Contacts: 7 & 12
- Locking Mechanism: Screw
- Contact Termination: Crimp, Solder, Dip-Solder
- Wire Gauge Max: 1.50mm²
- Cable Diameter Range: 7-14mm
- Connector Types: Cable to Panel
- Max. Voltage: 25-250V
- Max. Current: 5-10A
- Ingress Protection Max: IP65
- Moulded Cable Option: No
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer. Additional accessories may also be required in some instances.
The Hirschmann NR series is a range of robust circular connectors available in 7 & 12 way and with IP65 environmental protection.
The impact-proof fracture-proof, glass fibre-reinforced housings of the NR series offer a solid connection. With their highly robust characteristics, this circular connector system is able to excel and its compact design lends it to an array of applications.
The built in housings can be supplied with a flange if so desired or for installation in a variety of PG or metric threads and with freely selectable cable output.
Thanks to crimping technology, it is also possible to use in installations that are subject to a lot of vibrational stress.
Key features include:
- Available in 7 & 12 pin variants (including PE)
- For voltages up to 250V and currents up to 10A
- Selection of plastic or metal housings for permanent solutions
- High degree of transmission safety due to continuous shielding against electro-magnetic radiation
- Protection class IP65
For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.
- No. of Contacts: 7 & 12
- Locking Mechanism: Screw
- Contact Termination: Crimp, Solder, Dip-Solder
- Wire Gauge Max: 1.50mm²
- Cable Diameter Range: 7-14mm
- Connector Types: Cable to Panel
- Max. Voltage: 25-250V
- Max. Current: 5-10A
- Ingress Protection Max: IP65
- Moulded Cable Option: No
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer. Additional accessories may also be required in some instances.
931592004
7 Way Jam-Nut Panel Connector for Pin Contacts, IP65 (N6R AM 2 M20)
931592003
7 Way Jam-Nut Panel Connector for Pin Contacts, IP65 (N6R AM 4)
931592002
7 Way Jam-Nut Panel Connector for Pin Contacts, IP65 (N6R AM 3)
931592001
7 Way Jam-Nut Panel Connector for Pin Contacts, IP65 (N6R AM 2)
931553106
7 Way Cable Connector for Socket Contacts, 7-9mm Angled Cable Entry, IP65 (N6R FF R)
931435106
7 Way Cable Connector for Socket Contacts, 7-9mm Angled Cable Entry, IP65 (N6R FF)
931434001
7 Way Jam-Nut Panel Connector for Pin Contacts, IP65 (N6R AM)
932507005
Crimp Tool for NR and ST Series 1.6mm Crimp Contacts (XZC 0704)
931812001
Extraction Tool for NR and ST Series 1.6mm Crimp Contacts (XWA 164)
733385001
2,000 Piece Reel of 1.6mm Crimp Socket Contacts, Stamped & Formed Construction, Silver Plating, 0.14-0.50mm², Priced Per Contact (RBCB 162/1 Ag)
733384021
1.6mm Crimp Pin Contact, Stamped & Formed Construction, Silver Plating, 0.14-0.50mm² (RSC 162/1 Ag)
733383021
1.6mm Crimp Socket Contact, Stamped & Formed Construction, Silver Plating, 0.14-0.50mm² (RBC 162/1 Ag)
731727001
2,000 Piece Reel of 1.6mm Crimp Pin Contacts, Stamped & Formed Construction, Silver Plating, 0.50-1.50mm², Priced Per Contact (RSCB 162 Ag)
731726202
200 Piece Reel of 1.6mm Crimp Socket Contacts, Stamped & Formed Construction, Silver Plating, 0.50-1.50mm², Priced Per Contact (RBCB 162 Ag)
731726201
2,000 Piece Reel of 1.6mm Crimp Socket Contacts, Stamped & Formed Construction, Silver Plating, 0.50-1.50mm², Priced Per Contact (RBCB 162 Ag)
731725021
1.6mm Crimp Pin Contact, Stamped & Formed Construction, Silver Plating, 0.50-1.50mm² (RSC 162 Ag)
731724221
1.6mm Crimp Socket Contact, Stamped & Formed Construction, Silver Plating, 0.50-1.50mm² (RBC 162 Ag)
831618001
Electronic PCB Insert for Hirschmann NR Series Cable Connector (N6R 3 LED 24 DB)
831411001

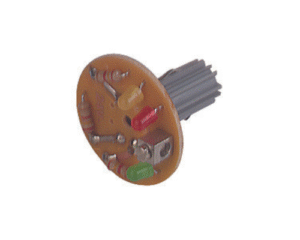

Electronic PCB Insert for Hirschmann NR Series Cable Connector (N6R 3 LED 24)
831002011
Coding Screw for Hirschmann NR Series (NC 6)
734633001

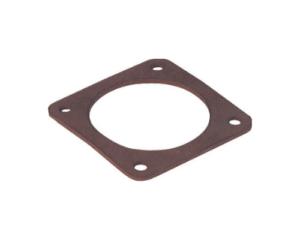

Conductive Gasket for Hirschmann NR Series Square Flanged Panel Connector (N6R-40)
734606001

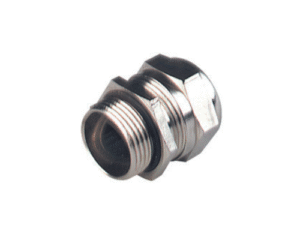

PG13.5 Metal Cable Gland, 12-15mm Cable Entry, Shieldable, IP65 (N6R-42)
734605001
PG13.5 Metal Cable Gland, 6-12mm Cable Entry, Shieldable, IP65 (N6R-41)
734582001

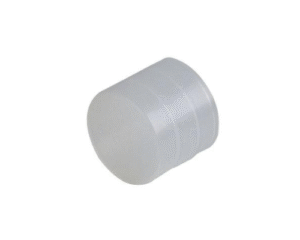

Transportation Cap for Hirschmann NR Series Panel Connector (SHK 4)
